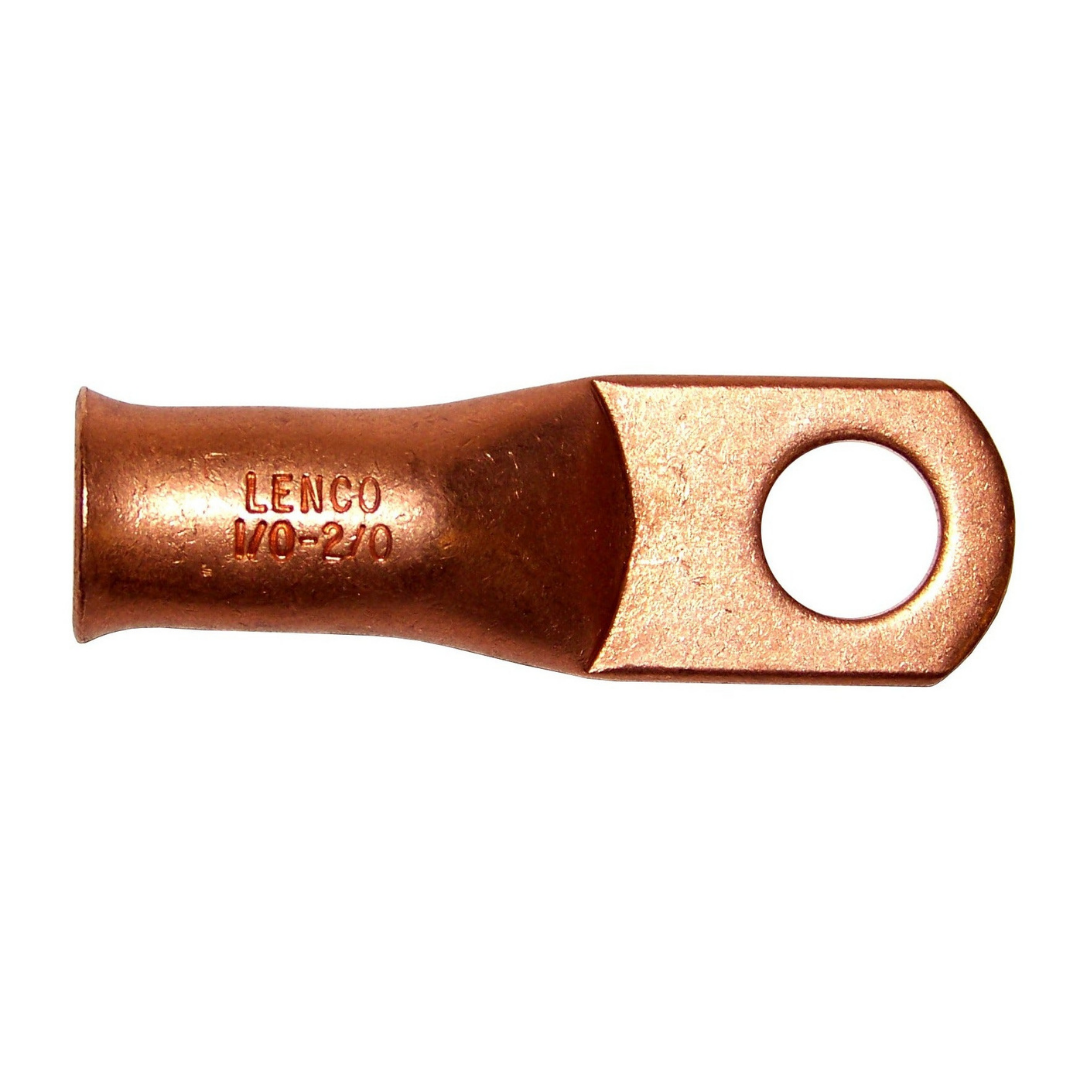

Lenco Welding And Power Cable Lugs



Precision made from copper tubing.  Extra long barrel for easy soldering or attaching by swedge-on (Crimp) process.  The stud holes are made specifically for welding machines with appropriate lug clearance.  Flared ends make it easy to insert stranded cable into the lug,

Options:

Model		Item Code		Cable Capacity		Stud Hole		Barrel I.D.
L-8		6980		No. 12 – 14		13 64 (5.16mm)		.185 (4.7mm)
L-6		6985		No. 8 – 10		13 64 (5.16mm)		.232 (6mm)
L-4		6990		No. 6 – 8		21 64 (8.3mm)		.286 (7.3mm)
L-2		6995		No. 4 – 6		21 64 (8.3mm)		.336 (8.5mm)
L-26		7005		No. 2 – 6		21 64 (8.3mm)		.344 (8.7mm)
L-1		7000		No. 2 – 6		17 32 (13.5mm)		.360 (9mm)
L-12		7010		No. 1 – 2		17 32 (13.5mm)		.402 (10.2mm)
L-1020		7020		No. 1 0 – 2 0		17 32 (13.5mm)		.495 (12.6mm)
L-1020-5 16		7021		No. 1 0 – 2 0		21 64 (8.3mm)		.495 (12.6mm)
L-3040		7030		No. 3 0 – 4 0		17 32 (13.5mm)		.620 (15.7mm)



Options	L-8 – AWG 12-14 Cable, L-6 – AWG 8-10 Cable, L-4 – AWG 6-8 Cable, L-2 – AWG 4-6 Cable, L-26 – AWG 2-6 Cable, L-1 – AWG 2-6 Cable, L-12 – AWG 1-2 Cable, L-1020 – AWG 1/0-2/0 Cable, L-1020-5/16 – AWG 1/0-2/0 Cable, L-3040 – AWG 3/0-4/0 Cable
