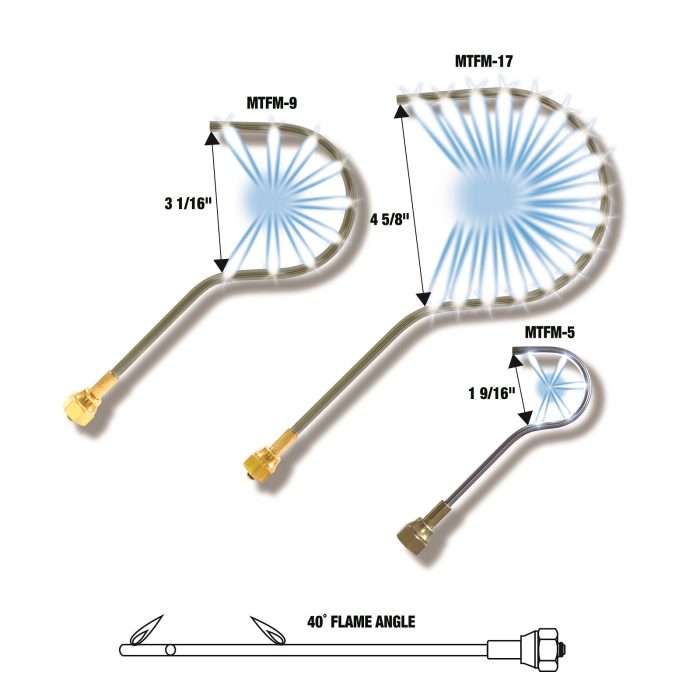

Cap n Hook® Multi-Flame Brazing Tips For Oxy-Acetylene



Uniweld’s Cap’n Hook® high performance tip transfers high heat directly onto your work area and away from nearby sensitive areas. Stainless steel construction provides a stable flame time after time while holding its shape. Cap’n Hook® tips provide rapid, even heat distribution for excellent brazing and flow of alloy.

Compatible Welding Handles

• 71
• WH250
• WH550
• WH350 (requires F15 adaptor)

• Part #		Acetylene Consumption SCFH		Oxygen Pressure (PSIG)		Acetylene Fuel Pressure (PSIG)		Overall Length		Brazing Copper Tubing [up to]
  MTF-5		4 – 6		8		5		5-1 2”		1”
  MTF-9		5 – 9		10		7		8-1 2”		2”
  MTF-17		8 – 14		18		12		11”		3”

  Model	MTF-5, MTF-9, MTF-17
