Tweco Roto-Work Heavy Duty Rotary Ground Clamps

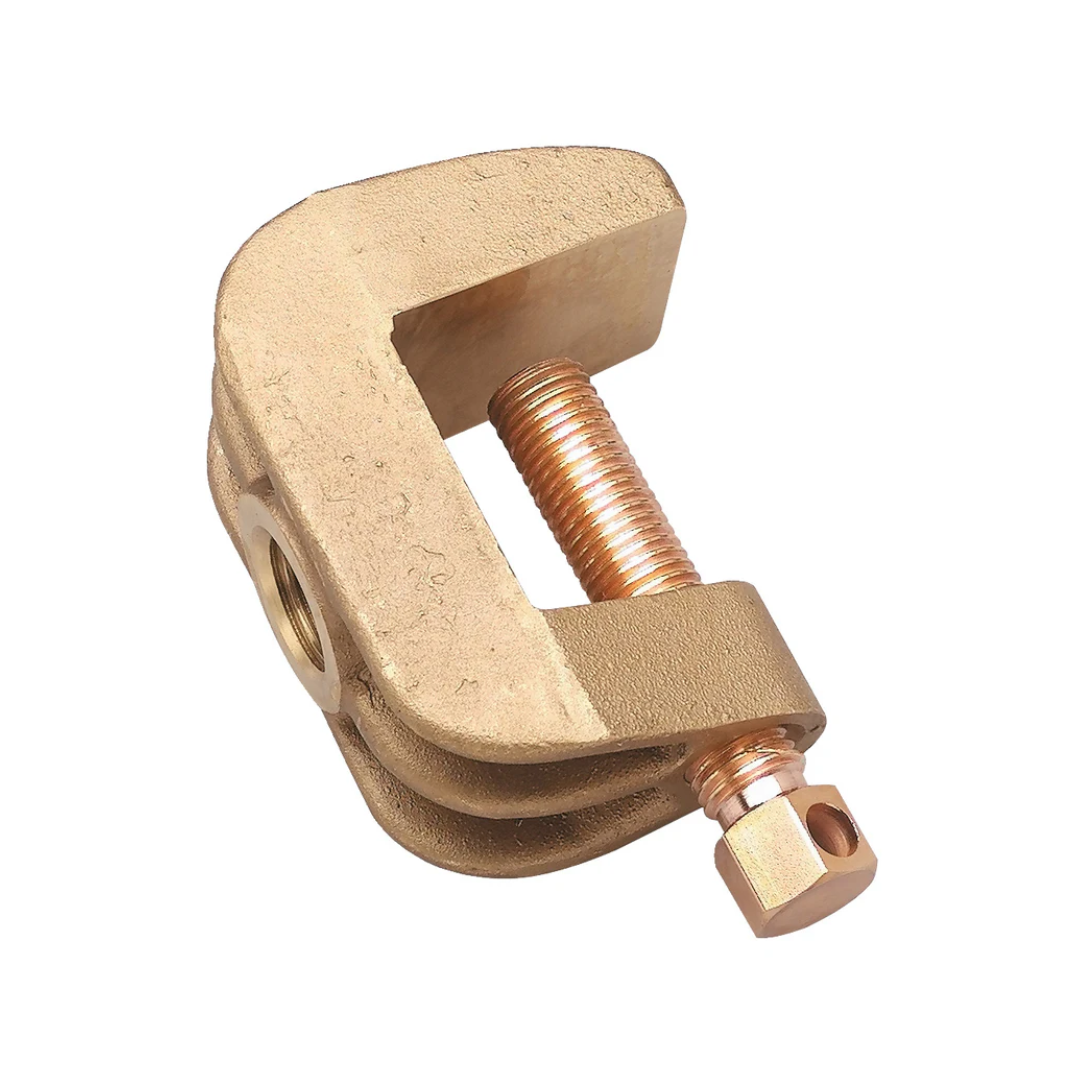

Tweco Roto-Work Ground Clamps are designed primarily to work in conjunction with the Tweco Roto-Ground Device. However, they may also be used for other high amperage grounding applications. The Roto-Ground shaft screws into the tapped back of the Roto-Work Clamp. The clamp is quickly attached or moved from one rotation weldment or fixture to the other without removing the Roto-Ground from it, saving on welding down time.

Roto-Work Clamps are made from a copper alloy. They come in 600, 1200 and 2000 ampere capacity. Number WCRG-2000 has two tightening screws. Number WCRG-600 works only with No. RG-230 due to its smaller shaft size. Large tightening screws and ample contact surface area provide cool, efficient operation.

Amperage

Fits Roto-Ground

Clamp Contact

Throat Height

Throat Depth

Over-All Height

Over-All Width

Tapped For

Part No.

Stock No.

600A

RG-230

6-1 4 sq in

2-1 2 (63.5 mm)

2-1 2 (63.5 mm)

5-3 4 (146.0 mm)

2-1 2 (63.5 mm)

1-1 8 NC

WCRG-600

9225-1106

1200A

RG-240 440

9 sq in

3 (76.2 mm)

3 (76.2 mm)

6-3 4 (171.0 mm)

3 (76.2 mm)

1-3 8 NC

WCRG-1200

9225-1112

2000A

RG-440 640

12 sq in

3 (76.2 mm)

3 (76.2 mm)

6-3 4 (171.0 mm)

4 (102.0 mm)

1-3 8 NC

WCRG-1200

9225-1120

Clamp Model	WCRG-600 – 9255-1106, WCRG-1200 – 9255-1112, WCRG-2000 – 9255-1120
