TurboTorch NPK-TT Nitrogen Purge Kit – 0386-1370

Nitrogen purging: When brazing copper, it is imperative to purge with nitrogen in order to minimize or eliminate oxidation that results from heating the copper pipe. Without purging, oxidation will occur and the oxidized flakes that result can and will break off and flow through the system, damaging bearings and fouling system filters.

All that is needed is a low pressure, low volume flow of nitrogen. The use of dry nitrogen gas also minimizes the need to evacuate moisture from the system

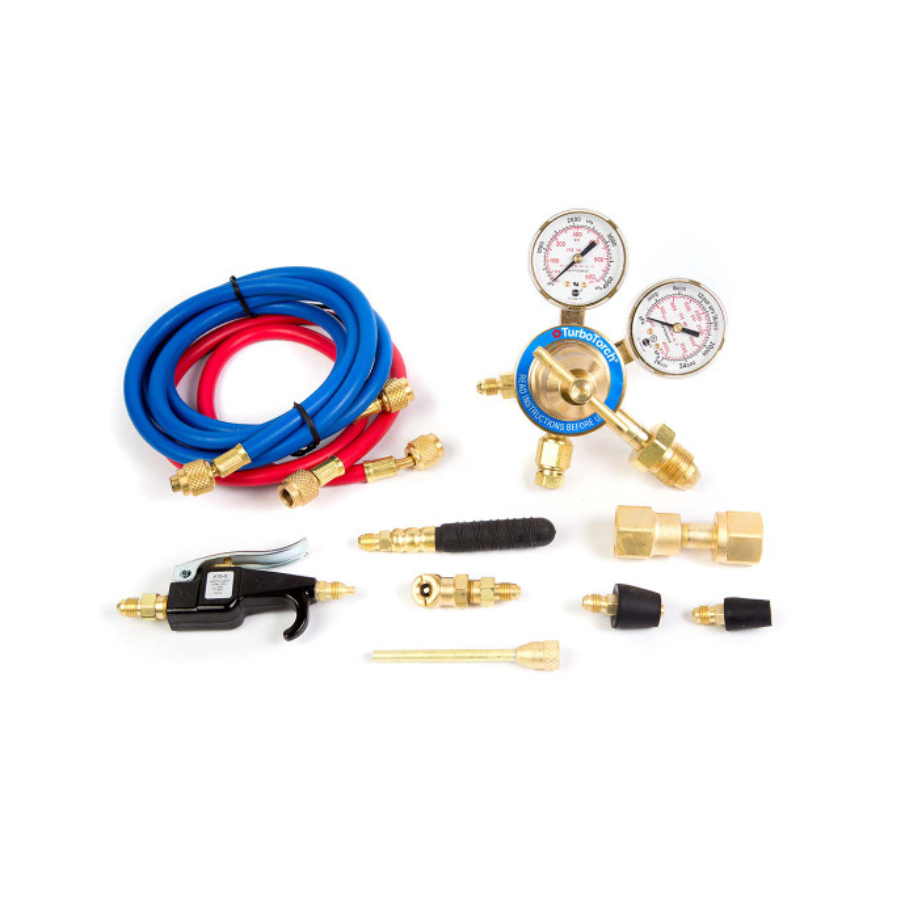

Kit Includes

• Nitrogen Regulator – 245-03P – 0386-0814

• Turbo Tornado™ – TT-1 – 0386-1371

• 1 2 Cone Plug – CP-1 – 0386-1372

• 3 4 Cone Plug – CP-2 – 0386-1373

• Needle Tip – NT-1 – 0386-1374
• CO2 Adapter – CO2-NPK – 0386-1375
• 36 X 1 4 Standard Charge Hose – CH-36 – 0386-1376

• 72 X 1 4 Standard Charge Hose – CH-72 – 0386-1377

• Blow Gun – BG-NPK – 0386-1378

• Delivery Range		0-3500 kpa (0-500 psi)
  Maximum Delivery Pressure		4200 kpa (600 psi)
  Maximum Inlet Pressure		28000 kpa (4000 psi)
  Model		245-03P Nitrogen CGA-580
  Part Number		0386-0814
