Strong Hand Tools Light Duty F-Clamps Fashion

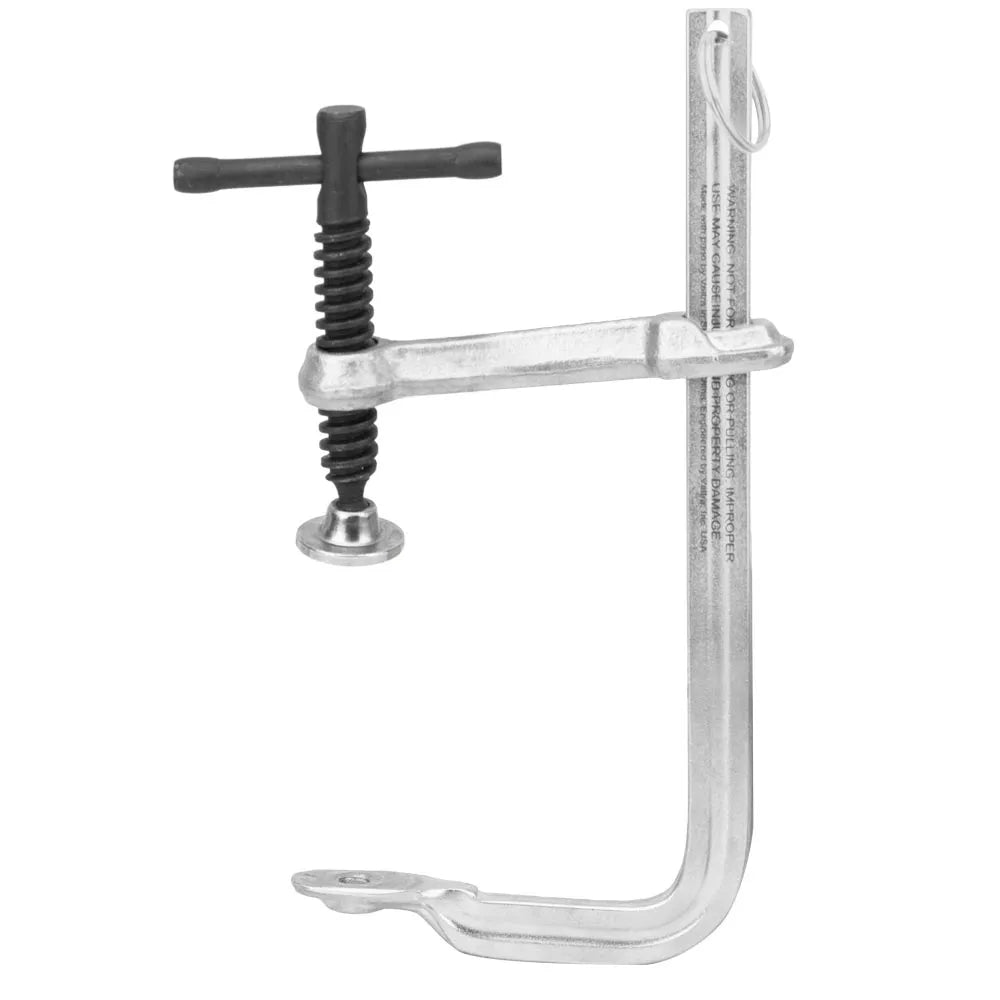

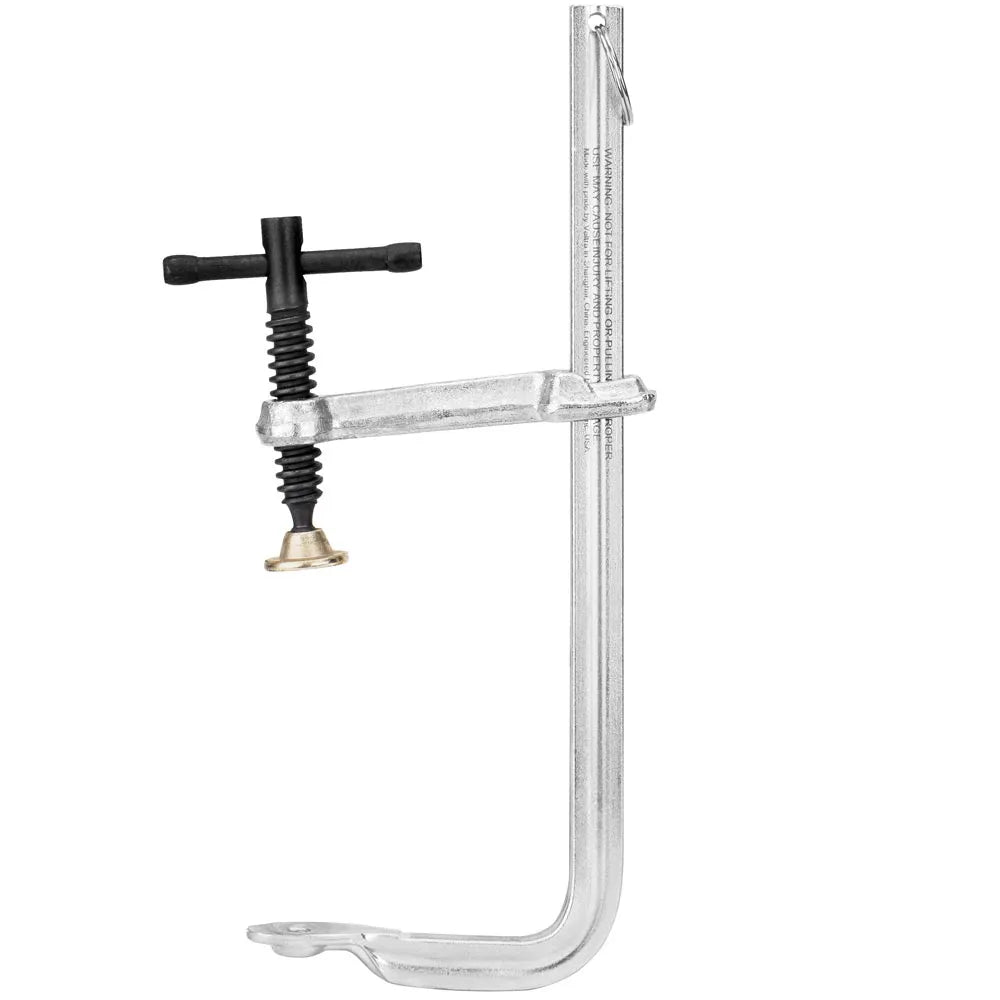

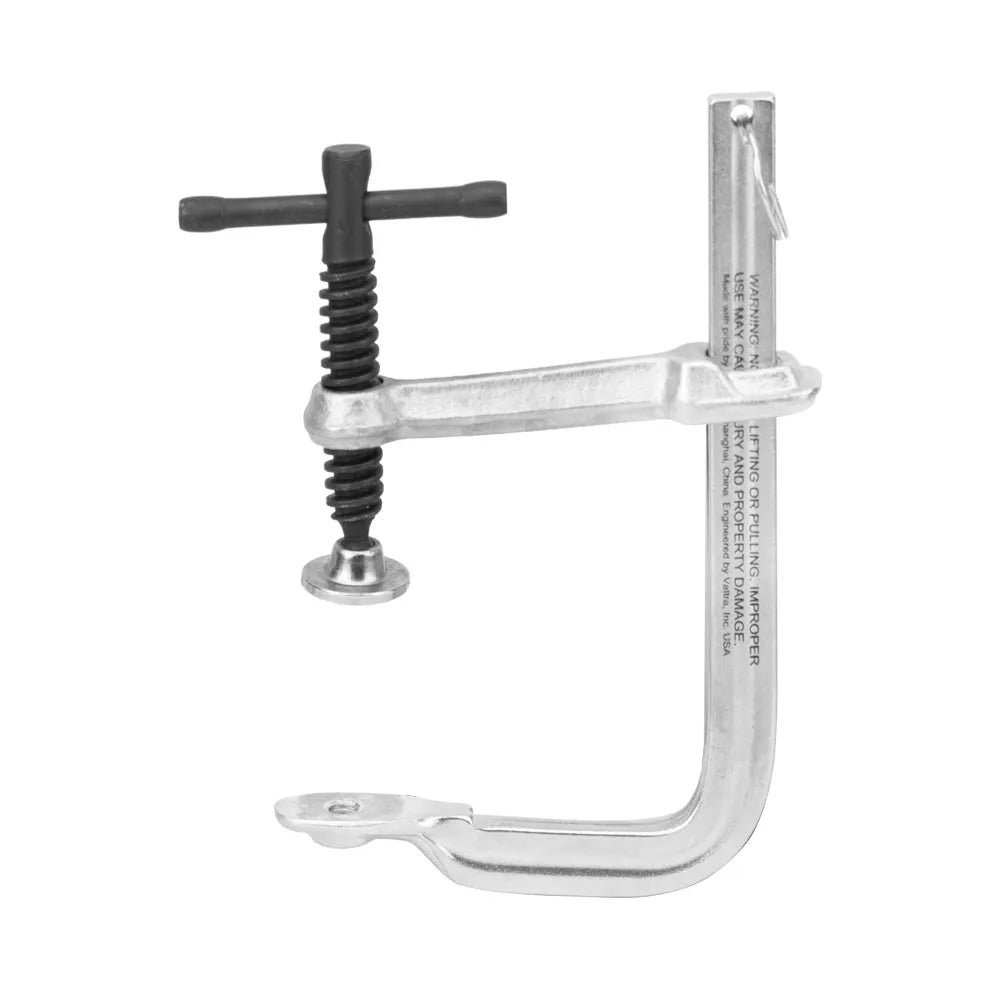

Strong Hand Light Duty Utility Clamps – UD F-Clamp

Utility Clamps with the Removable Reversible Clamp Arm, set-up 10x faster than a C-Clamp!

Innovative Features:

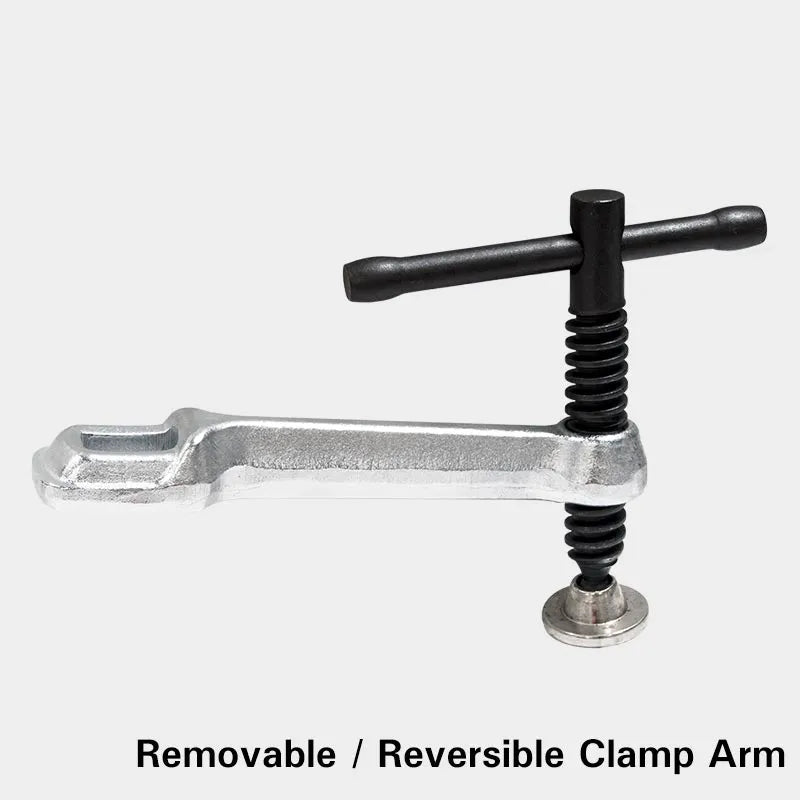

• Clamp Arm may be removed and reversed for use in spreading applications
• Tapped 5 16 -18 hole allows for attachment of V-Pads or Extender Blocks
• See 4-in-1 Kits to add versatility

• Strong Hand UD-Series F-Clamps Specs

  • Rail Size: 5 8 x 5 16
  • Clamping Pressure: 500 lb
  • Throat Depth: 3-1 4″
  • Clamping Capacity: 4.5 ~ 8.5″
  • Tapped Hole: 5 16-18

  • Part No.		Capacity – A (in)		Throat Depth -B (in)		Clamping Pressure (lb)		Rail Size – C (in)		Tapped Hole – D		Weight (lb)
    UD45		4-1 2		3-1 4		500		5 8 x 5 16		5 16-18		1.0
    UD65		6-1 2		3-1 4		500		5 8 x 5 16		5 16-18		1.1
    UD85		8-1 2		3-1 4		500		5 8 x 5 16		5 16-18		1.2

    Select Model and Capacity	UD45 – 4.5" Capacity, UD65 – 6.5" Capacity, UD85 – 8.5" Capacity
