Strong Hand Tools Heavy Duty F-Clamps
Features:
- Removable Reversible Clamp Arm
-
- Clamping Pressure: 4,800 lb
-
- Throat Depth: 7″
-
- Rail Size: 1-21 32 x 3 4″
-
- Tapped Hole: 3 8-16
-
- Heavy Duty Replaceable Pads
-
Specifications:
Specifications:
Part No.
Capacity – A (in)
Throat Depth – B (in)
Clamping Pressure (lb)
Rail Size – C (in)
Tapped Hole – D
Weight (lb)

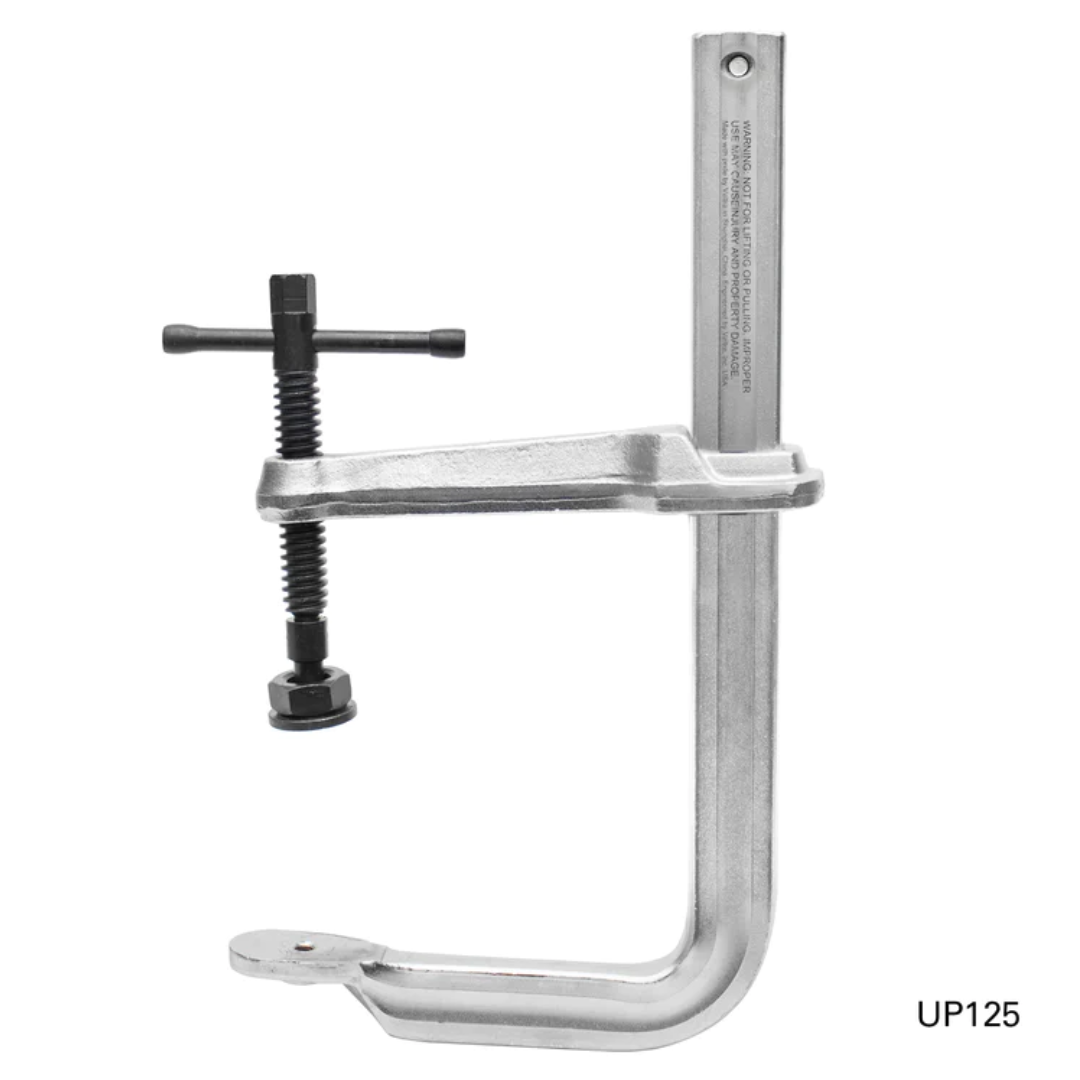

UP125
12-1 2
7
4,800
1-21 32 x 3 4
3 8-16
12.3

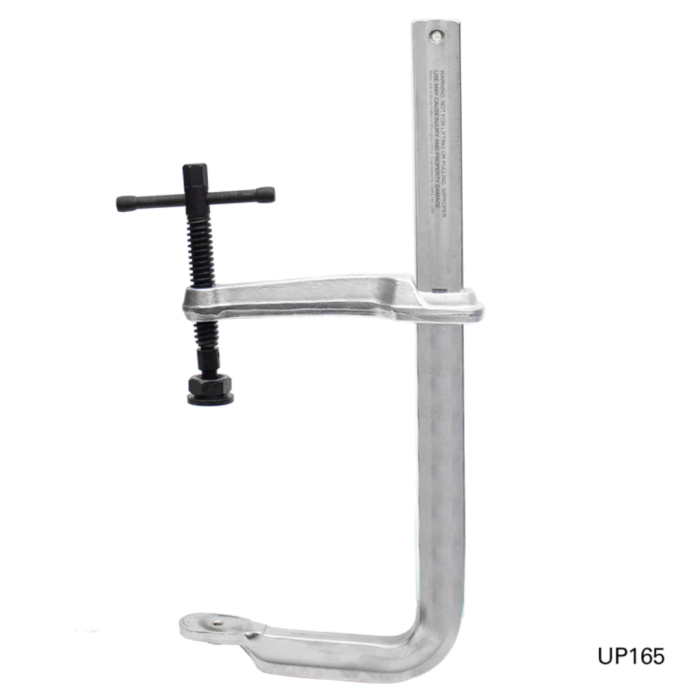

UP165
16-1 2
7
4,800
1-21 32 x 3 4
3 8-16
13.6

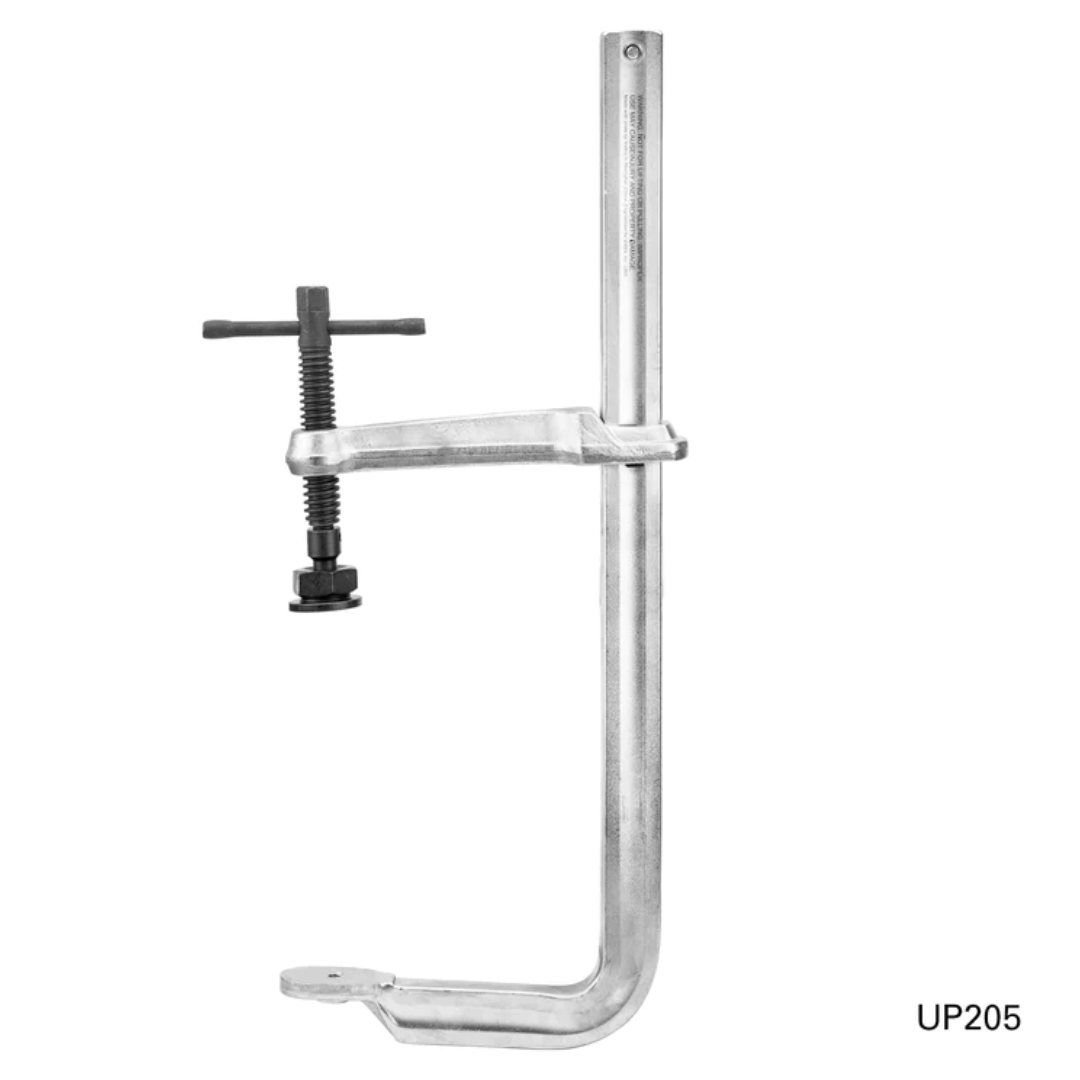

UP205
20-1 2
7
4,800
1-21 32 x 3 4
3 8-16
15

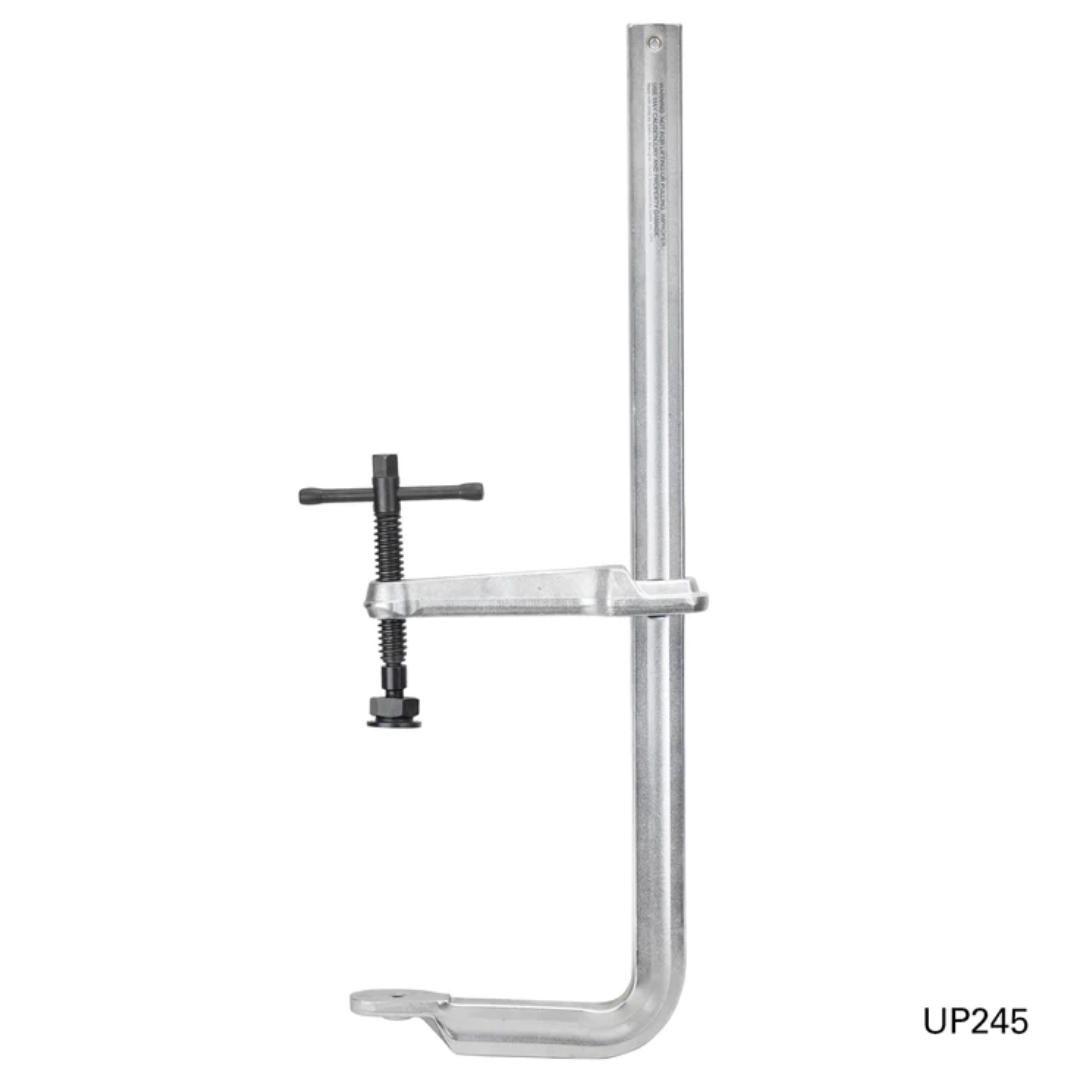

UP245
24-1 2
7
4,800
1-21 32 x 3 4
3 8-16
16.5

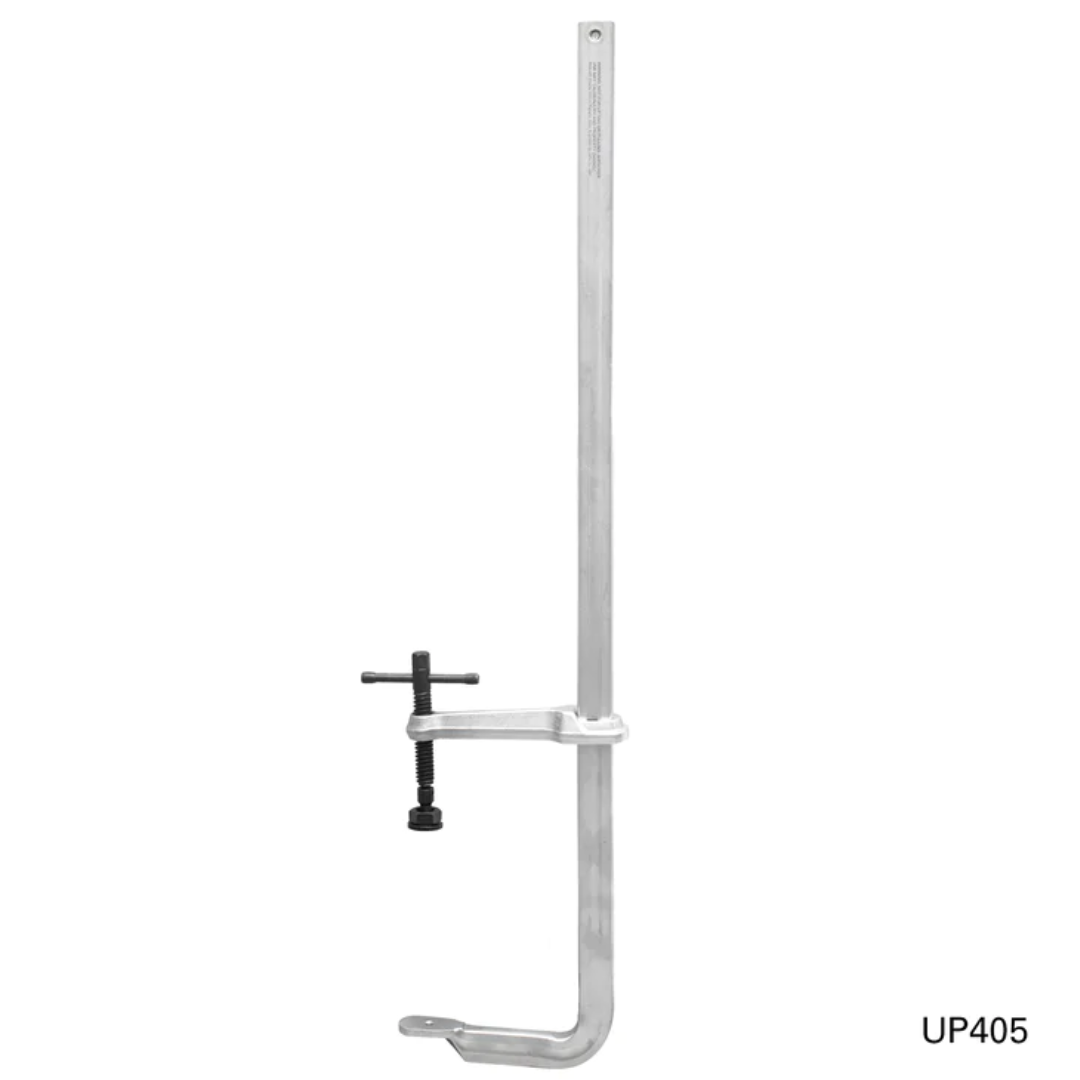

UP405
40-1 2
7
4,800
1-21 32 x 3 4
3 8-16
22
UP605
60-1 2
7
4,800
1-21 32 x 3 4
3 8-16
28
Select Model and Capacity
UP125 – 12.5" Capacity, UP165 – 16.5" Capacity, UP205 – 20.5" Capacity, UP245 – 24.5" Capacity, UP405 – 40.5" Capacity, UP605 – 60.5" Capacity
| Part No. | Capacity – A (in) | Throat Depth – B (in) | Clamping Pressure (lb) | Rail Size – C (in) | Tapped Hole – D | Weight (lb) | |||||||
| UP125 | 12-1 2 | 7 | 4,800 | 1-21 32 x 3 4 | 3 8-16 | 12.3 | |||||||
| UP165 | 16-1 2 | 7 | 4,800 | 1-21 32 x 3 4 | 3 8-16 | 13.6 | |||||||
| UP205 | 20-1 2 | 7 | 4,800 | 1-21 32 x 3 4 | 3 8-16 | 15 | |||||||
| UP245 | 24-1 2 | 7 | 4,800 | 1-21 32 x 3 4 | 3 8-16 | 16.5 | |||||||
| UP405 | 40-1 2 | 7 | 4,800 | 1-21 32 x 3 4 | 3 8-16 | 22 | |||||||
| UP605 | 60-1 2 | 7 | 4,800 | 1-21 32 x 3 4 | 3 8-16 | 28 | |||||||
| Select Model and Capacity | UP125 – 12.5" Capacity, UP165 – 16.5" Capacity, UP205 – 20.5" Capacity, UP245 – 24.5" Capacity, UP405 – 40.5" Capacity, UP605 – 60.5" Capacity |
|---|
