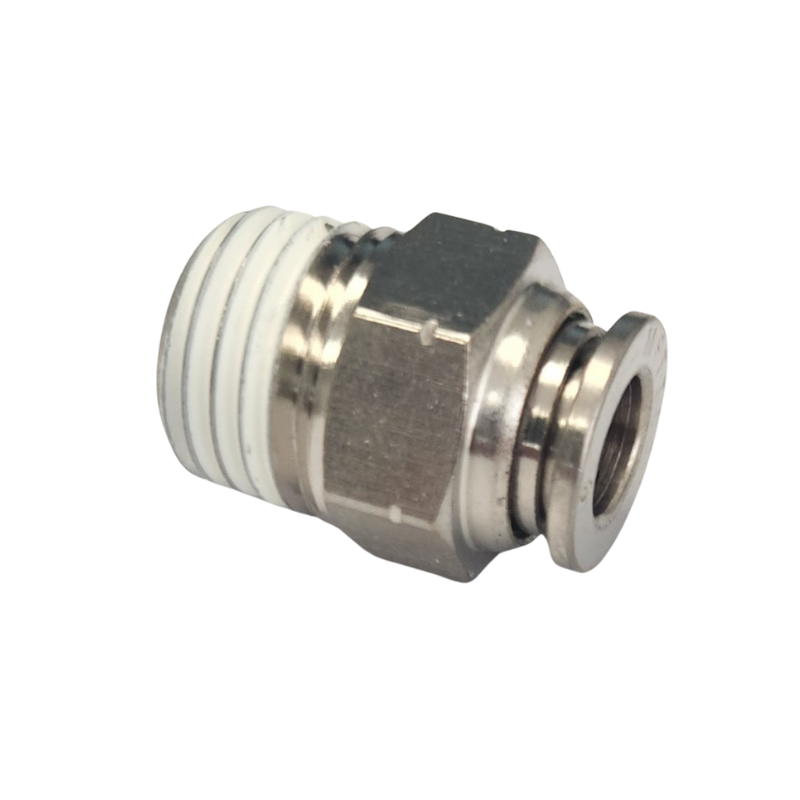

Straight Push To Connect Fitting 6 mm OD x 1 4 NPT Male



Pneumatic Push to Connect Fitting, Nickel Plated Brass Straight Male Connector. Designed for use with Polyurethane or Nylon tubing.  Quick and Reliable connections and Reusable: Multiple connections disconnections. Pre-coated threads are ready to use without additional sealing

Used to connect gas 6mm gas line hose to a standard Argon, Nitrogen regulator for the THEO hand held laser welding machine

• Model: BMTC 6-N02
• Tubing: 6 mm OD
• Thread: 1 4 NPT Male
• Body Material: Nickel Plated Brass

• Specifications

  • Fluid Type: Air
    Operating Pressure: 0- 200 PSI
    Working Temperature: 32°F to 140°F (0°C to 60°C)
    Metallic Body: Nickel Plated Brass
    O-Ring: NBR (Acrylonitrile butadiene rubber)
    Packing: NBR (Acrylonitrile butadiene rubber)
    Back Ring: POM (Polyoxymethylene plastic)
    Lock Claws: Stainless Steel
    Collar: Nickel Plated Brass
    Sleeve: Nickel Plated Brass

  •
    This product is not D.O.T. (Department of Transportation) approved and should not be used for automotive applications.
