Powerweld Heavy Duty Pipe Stands – Standard Vee Supply

Powerweld Heavy Duty Pipe Stands – Standard Vee

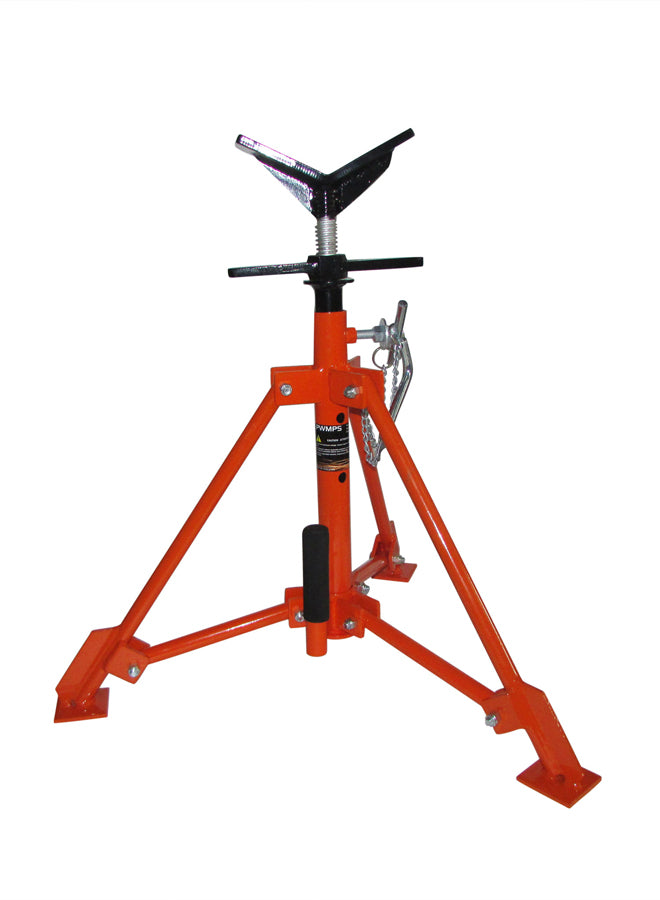

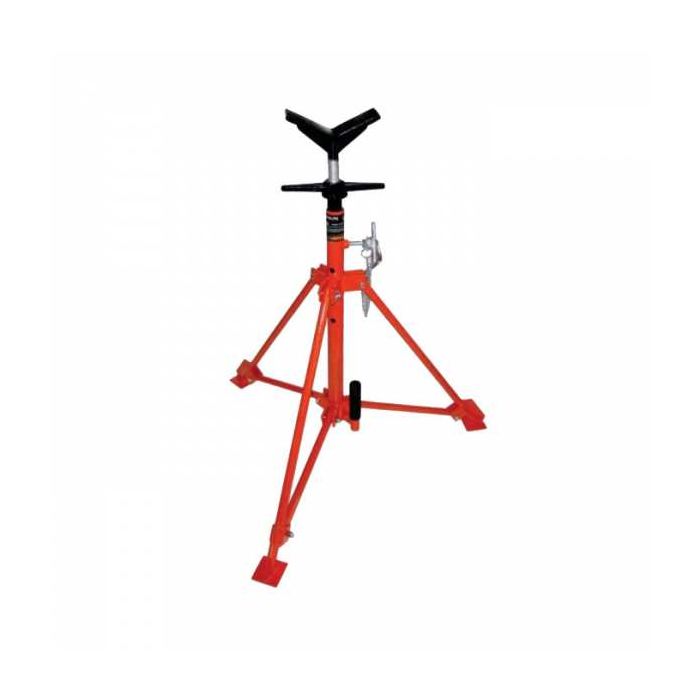

PowerWeld heavy duty pipe stands are packed with features to provide safety and ruggedness on any jobsite. A wide base footprint keeps the stand stable under load. The reinforced vee-head prevents bending and is rated at 4000 lbs (1815 kg) capacity. High visibility orange for safety. Stands fold up for easy storage or transportation. T-handle to secure head in place plus safety pin. Carry handle for convenience. Safety ratio 3:1

• 4,000 lb (1,815 kg) capacity (PWLPS & PWMPS)
• Folds up for storage ease
• Carrying handle for ease of transporting

• Options:

  Heavy Duty Large Pipe Stand – Model No. PWLPS

  • Low Position Height: 32 (810 mm)
  • Max Position Height: 52 (1320 mm)
  • Footprint Width: 33.5 (850 mm)
  • Weight: 29 lbs (13.2 kg)
  • Pipe Diameter Capacity: up to 24 (600 mm)

  • Heavy Duty Medium Pipe Stand – Model No. PWMPS

    • Low Position Height: 26 (660 mm)
    • Max Position Height: 36 (910 mm)
    • Footprint Width: 27 (685 mm)
    • Weight: 25 lbs (11.3 kg)
    • Pipe Diameter Capacity: up to 24 (600 mm)

    • Heavy Duty Small Pipe Stand – Model No. PWSPS

      • Low Position Height: 28.5 (730 mm)
      • Max Position Height: 50 (1270 mm)
      • Footprint Width: 22 (560 mm)
      • Weight: 23 lbs (10.5 kg)
      • Load Capacity: 2500lb (1135 kg)
      • Pipe Diameter Capacity: up to 24 (600 mm)
