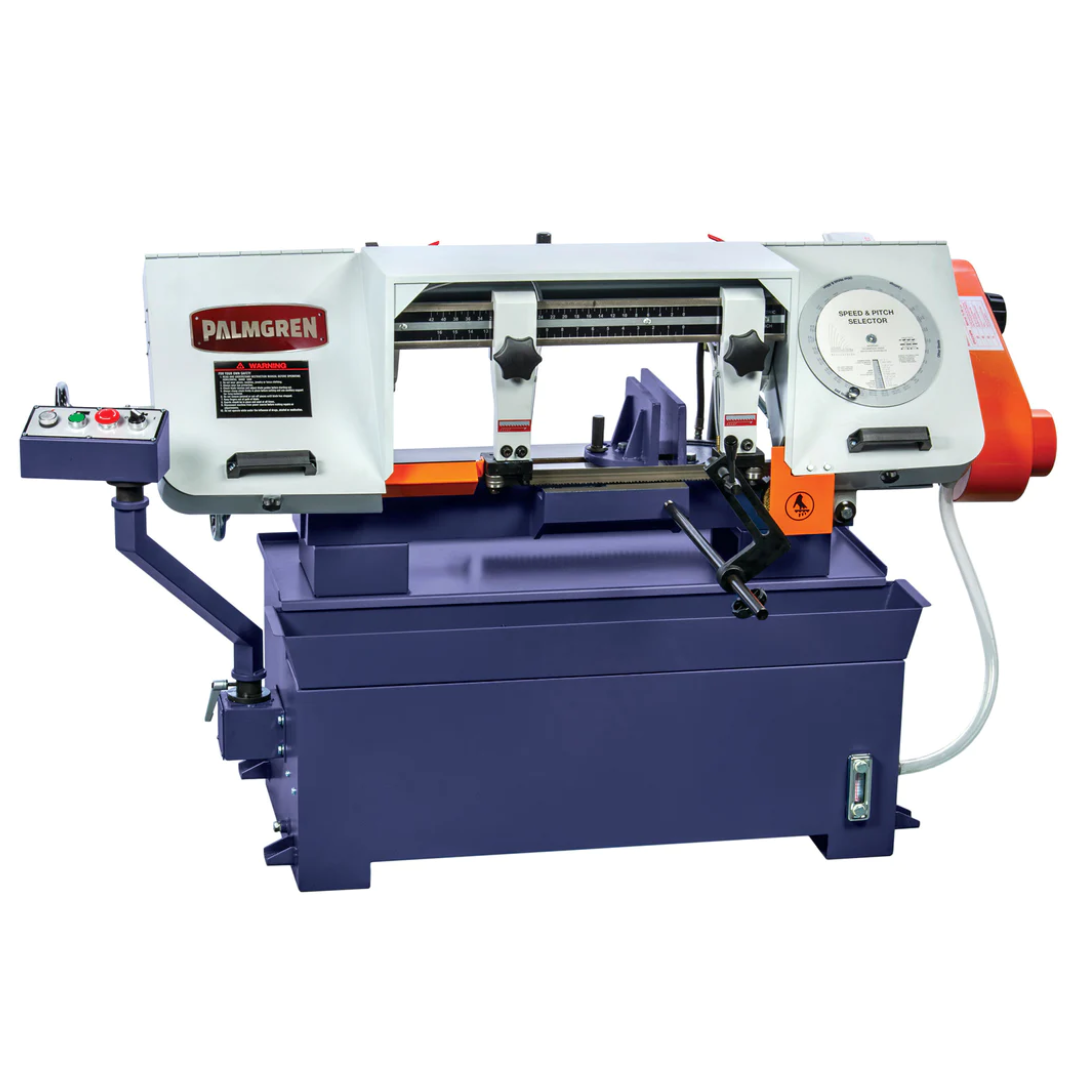

Palmgren 9 x 16 Variable Speed Bandsaw

Palmgren s 9 x 16 horizontal band saw is built to deliver fast, accurate cutting on all types of materials. Heavy duty rigid steel and cast iron construction of the saw head and base provides full blade support eliminating vibration and deflection. Designed with the operator in mind the saw comes standard with rapid acting vise, conveniently located swing away control panel, variable speed and easily accessible coolant system.

• Variable speed drive for fast easy speed changes and longer blade life
• Rapid acting vise adjustable for miter cut
• Adjustable tungsten carbide and precision ball bearing blade guides allow for close positioning of the guides to the material being cut for square accurate cuts
• Cast iron adjustable guide arms
• Heavy duty transmission utilizes hardened and ground gears operating in an oil bath providing a smooth, quiet drive train and positive surface feet per minute to the blade
• Swing away control panel gives the operator a more convenient and safer way to operate the saw
• Dual counter balanced feed system utilizing both spring and hydraulic cylinder to insure smooth consistent feed pressure on the blade; this combination allows for accurate cutting of solids, shapes and thin walled tubing
• Blade speed & pitch selector
• Convenient top load blade changes
• Large hand wheel with blade tensioning guide accurately measures blade tension
• Coolant system delivered through both blade guides
• Replaceable blade brush
• Part Number: 9683293

• Free Shipping is not available on this product, freight charge will be calculated at checkout.  Please note that tailgate and residential location fees may apply.



  Model		83293
  Blade Length x Width x Thickness		119.5 in x  1 in x 0.035 in
  Volts		230V – 1Phase
  Blade Speed		80-250 SFPM
  Dimensions		71 x 44 x 30
  Weight		750lb
