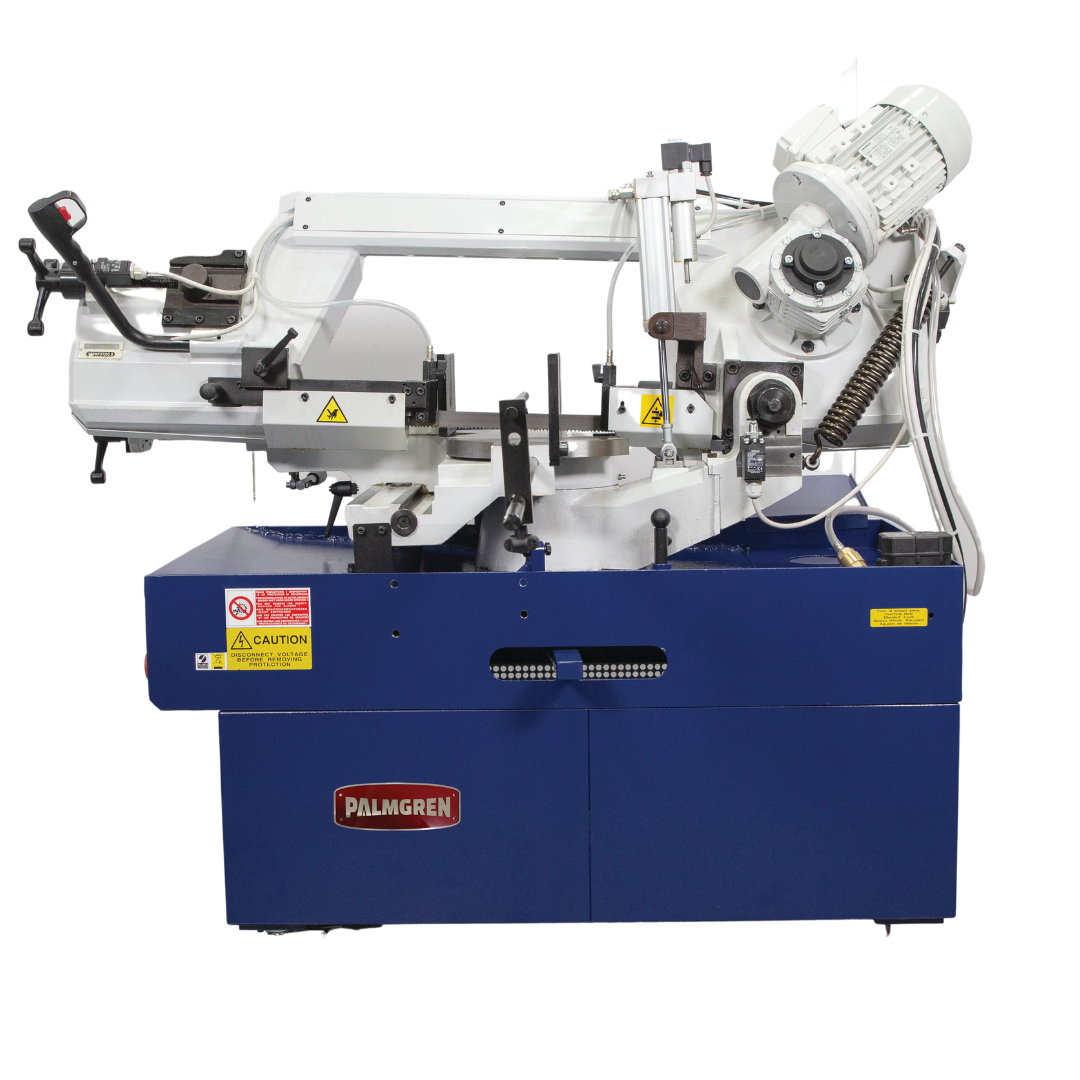

Palmgren 10 x 13 Dual Miter Horizontal Bandsaw

Features:

• Precision machined cast saw head for maximum rigidity and vibration dampening performance
• Advanced direct drive gear box and motor, maximizes the power of the motor to the blade
• Rapid positioning vise allows for fast set-ups and maximum clamping force on the workpiece
• Adjustable zero clearance blade guides utilizing a combination of ball bearing and tungsten carbide pads provide maximum support and ensure square accurate cuts
• Large handwheel with electro-magnetic micro switch preset to insure proper blade tension; without proper tension, the saw will not start and if the blade loosens or breaks during operation, the saw will stop
• Fine adjustment hydraulic down feed control is easily adjusted to fine tune the blade speed to the material being cut
• Flood coolant system with the coolant fed through both blade guides to maximize cooling and cleaning of the chips from the blade
• Adjustable work stop for repetitive cuts
• Safety electrical package includes overload & low voltage protection, safety spring loaded switch, emergency stop button and two speed motor switch
• Made in Italy
• Part Number: 9683345

• Free Shipping is not available on this product, freight charge will be calculated at checkout.  Please note that tailgate and residential location fees may apply.

  SPECIFICATION		DESCRIPTION
  Model		83345
  Voltage		230V
  Phase		1 PH
  Round Material Max. 0º		10.25 in
  Round Material Max. 45º		8.86 in
  Round Material Max. 60°		5-1 8 in
  HP		1.5 HP
  Square Max. 0º		9.84 x 9.84 in
  Square Max. 45º		8-1 4 x 8-1 4 in
  Square Max. 60°		5-1 8 x 5-1 8 in
  Cutting Angle Left Right		45° 60°
  Cutting Angle Adjustment		Manual
  Feed		Hydraulic
  Saw Blade Diameter		1 x 0.035 x 96 in
  Vise Opening		13 in
  Length		69.3 in
  Width		49.8 in
  Height		78.1 in
  Weight		803 lbs.
