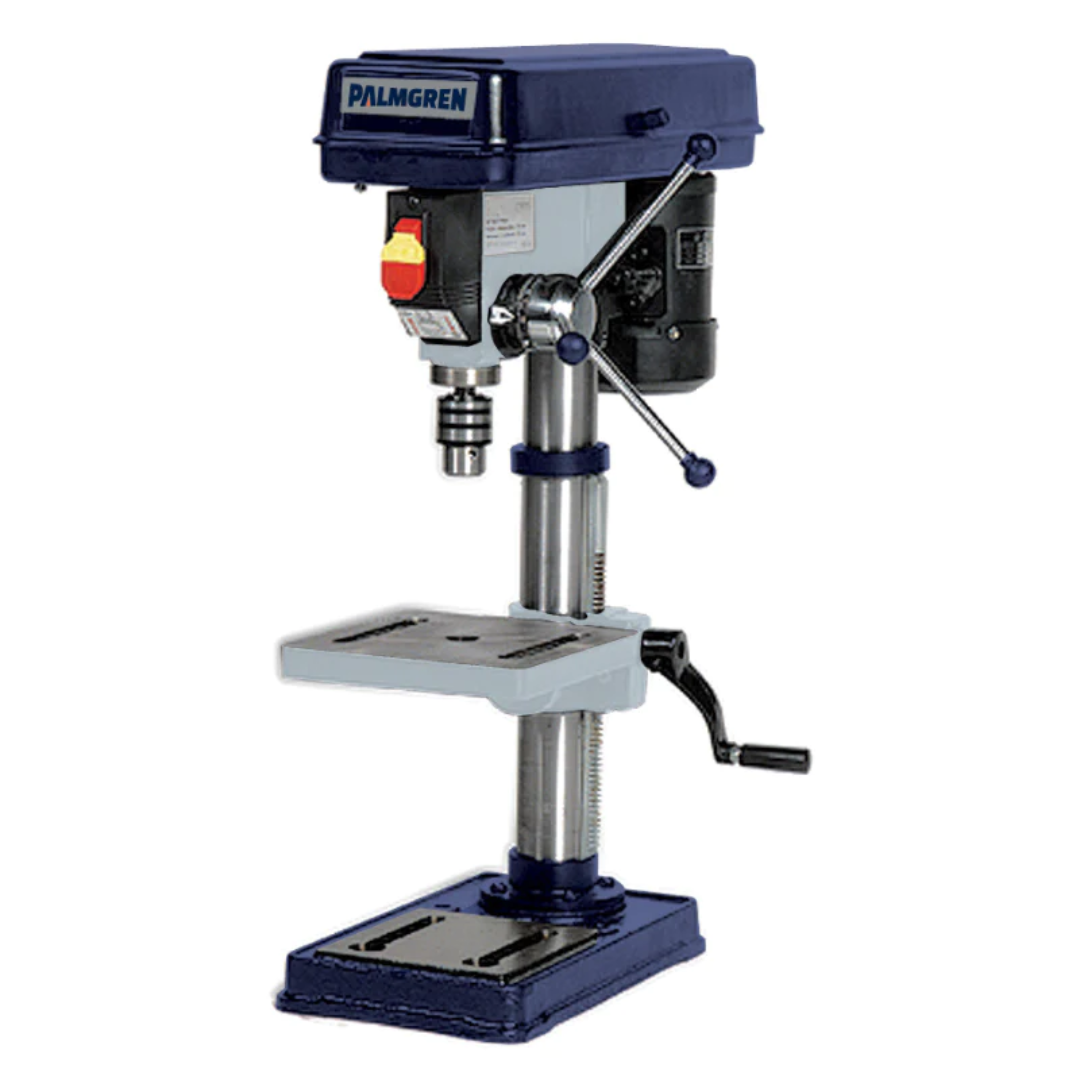

Palmgren 10 5-Speed Bench Drill Press



Palmgren s practical light to medium duty benchtop drilling machine combines performance and economy into one. It s an ideal choice when working with metal, composite, plastic, or wood.  This bench model features a belt driven step pulley and is designed for general purpose intermittent use.

• Durable cast iron head, table, and base
• Spindle supported by high quality ball bearings and has a spindle depth stop
• Rack and pinion table raiser. Table tilts 45 degrees to the right and left while being able to swivel 360 degrees around the column
• 1 2 through table & base slots for easy mounting & clamping of workpiece
• Laser alignment
• Front mounted safety, paddle on off switch
• Drill chuck & key
• Part Number: 9680110

• SPECIFICATION		DESCRIPTION
  Model		80110
  Swing		10 in
  Motor HP		1 3 HP
  Voltage		115
  Amps		6.8 A
  Capacity Cast Iron		1 2 in
  Spindle Speeds		570-3700
  RPM		620-3100
  Spindle Taper		JT33
  Spindle Travel		2- 1 2 in
  Spindle to Table		10- 11 16 in
  Table Work Surface		7-13 16 x 7-13 16 in
  Table Slots		1 2 W x 4-11 16 L in
  Height		27-1 2
  Width		11-1 4 in
  Depth		19-1 4 in
