Mathey Dearman Pipe Flame Cutting And Bevelling Saddle Machines





The industry standard for over 90 years, the Mathey Dearman saddle machine is versatile, simple to use, and perfect for almost any pipe cutting and beveling application. Lightweight and durable, the Mathey Dearman machine is designed for accurate, quality cuts on 1½ – 48 (48.3 mm – 1,219 mm) pipes.

Features:

• Versatile – Every model works on a range of pipe sizes
• Adaptable – Works with all standard torches, including plasma
• Portable – Light and compact, perfect for shop or field applications
• Easy Set-Up – Mount and begin cutting in as little as 5 minutes
• Proven – Depended on by professionals for over 70 years
• Fast – Pipe is ready to weld up to five times quicker than hand cutting and grinding

• Manual saddle machine includes:

  • Saddle machine
  • Torch arm
  • Torch carrier assembly
  • Boomer assembly (fastens the machine to the pipe)
  • Spacer bolt set
  • Parts and operating manual

  • Note: Machine torches sold separately

    Specifications:

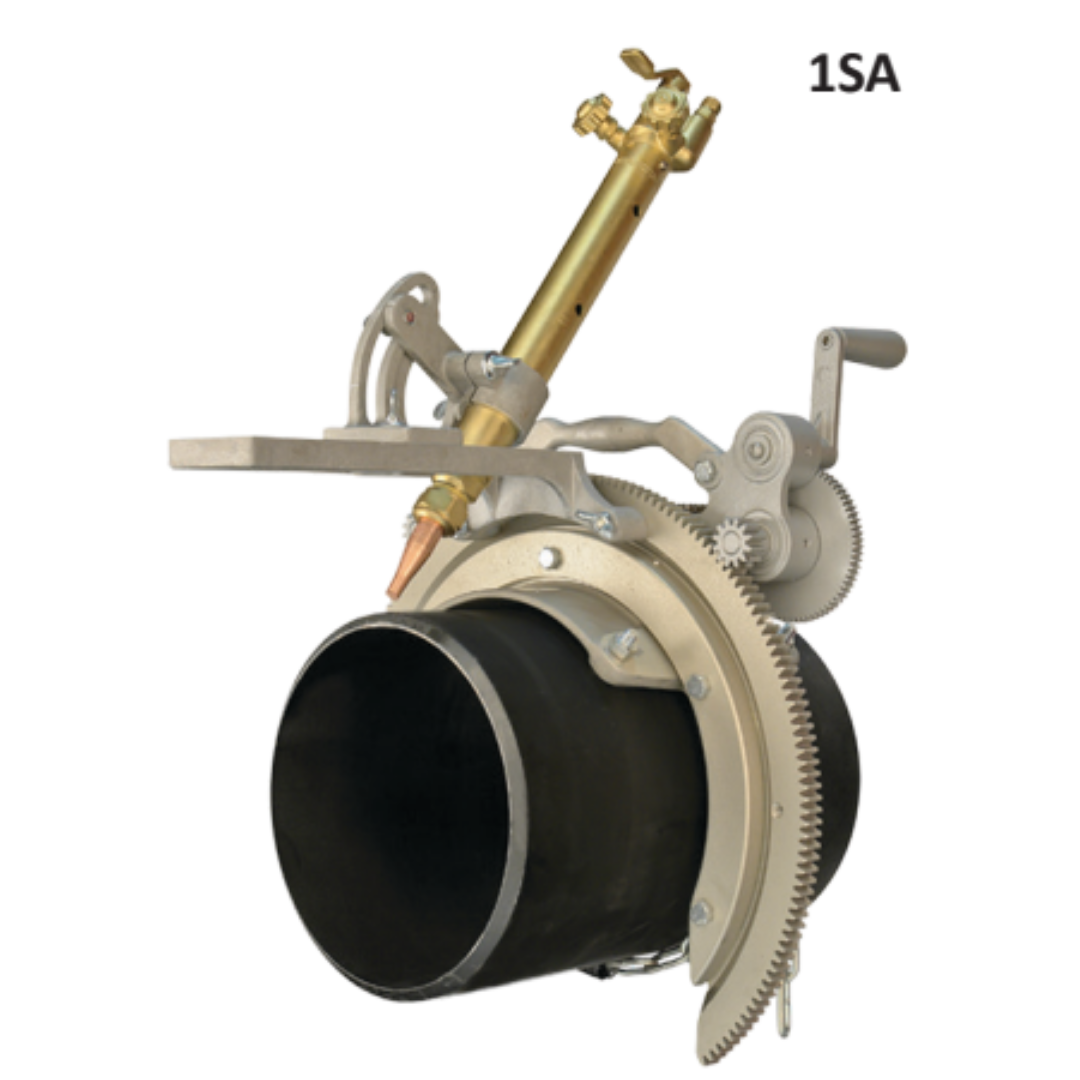

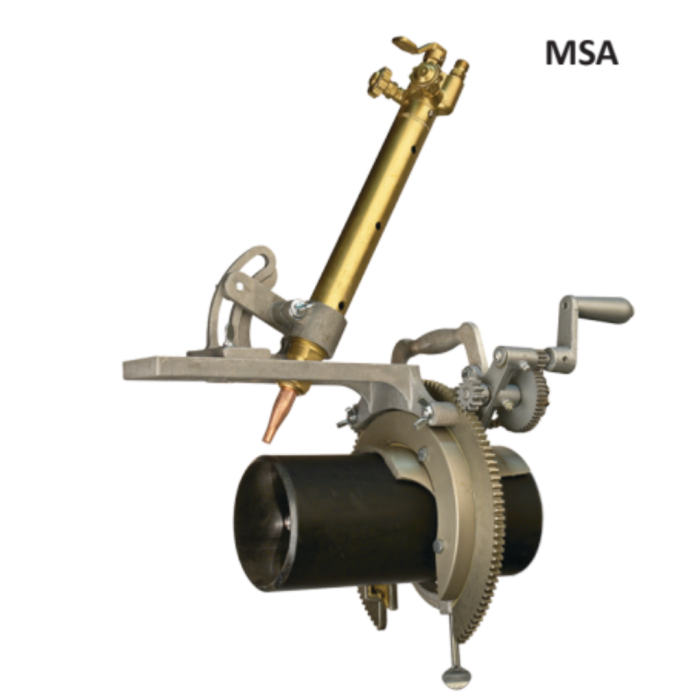

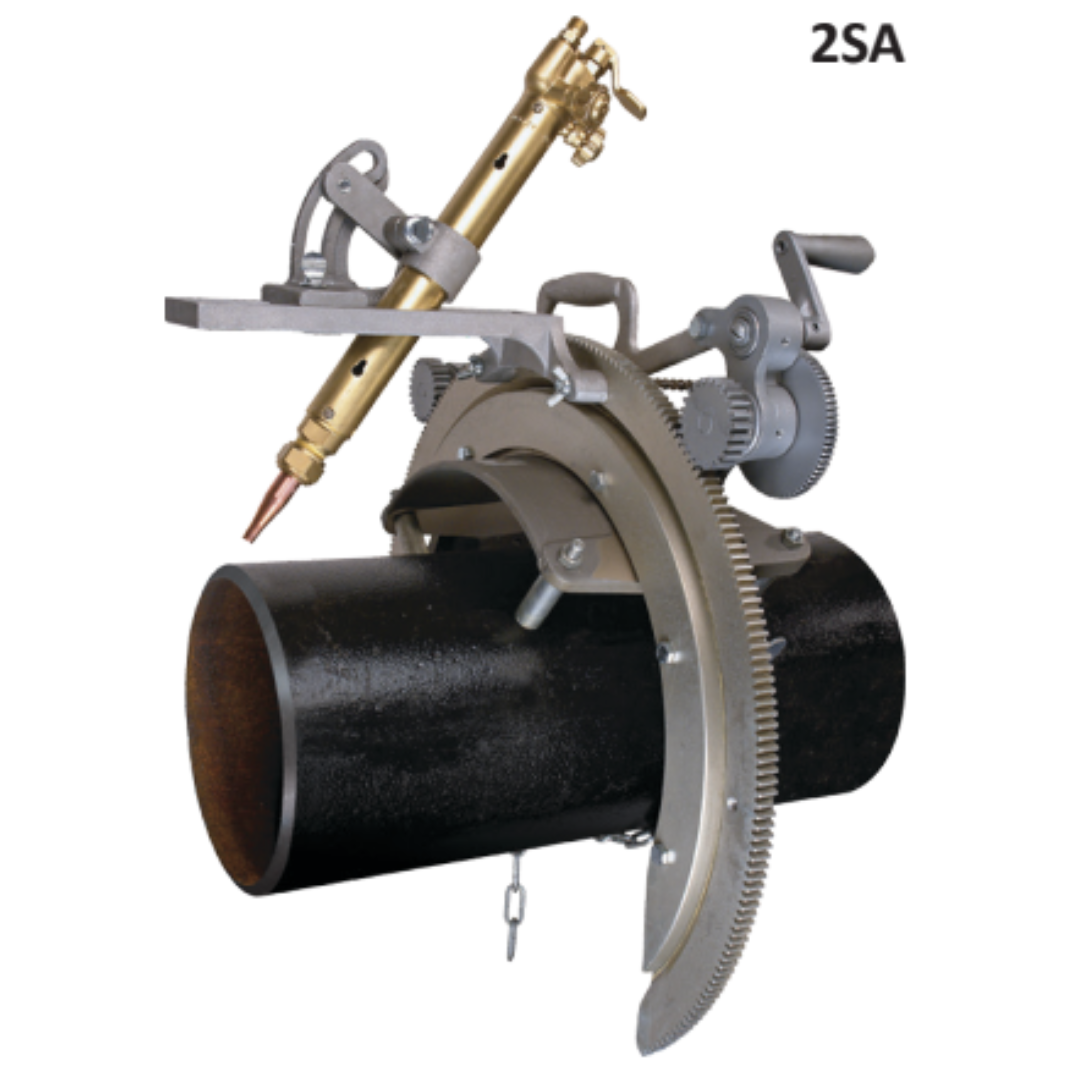

    MACHINE MODEL		MSA		1SA		2SA
    Pipe size in (mm)		2 – 4 (60.3 – 114.3 mm)		3 – 8 (88.9 – 219 mm)		6 – 12 (168.2 – 323.8 mm)
    Net weight lbs. kg		10 lbs. 5.00 kg		16 lbs. 7.00 kg		26 lbs. 12.00 kg
    Estimated shipping weight lbs. kg		12 lbs. 5.40 kg		24 lbs. 11.00 kg		34 lbs. 15.50 kg
    Shipping dimensions in (mm)		12 x 12 x 10 (305 x 305 x 254 mm)		18 x 18 x 111 2 (457 x 457 x 492 mm)		23 x 23 x 121 2 (584 x 584 x 318 mm)
    Maximum speed (motorized) ipm* mpm**		141 3581		71 1803		89 2261
    Minimum speed (motorized) ipm* mpm**		4 102		4 102		6 152
    Includes spacer bolts to cut pipe sizes		2 , 3 , 4 (60.3, 88.9, 114.3 mm)		3 , 4 , 6 , 8 (88.9, 114.3, 168.2, 219 mm)		6 , 8 , 10 , 12 (168.2, 219, 273, 323.8 mm)





    Machine Model	MSA – 1.5" – 4", 1SA – 3" – 8", 2SA – 6" – 12"
