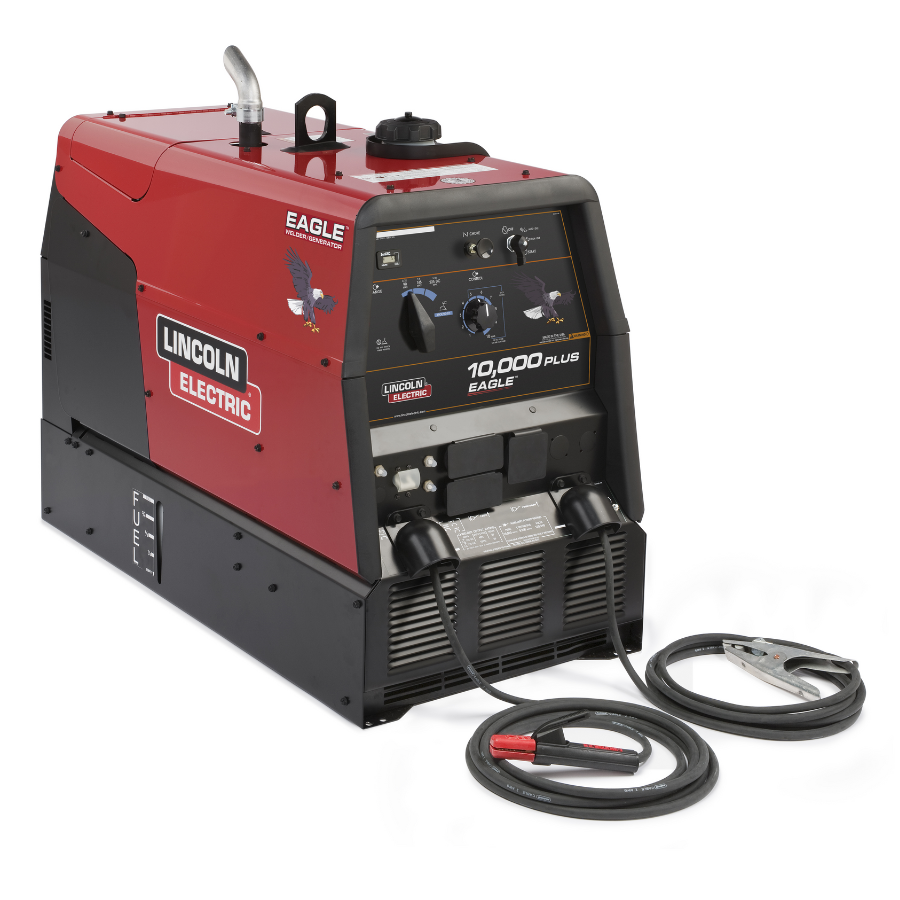

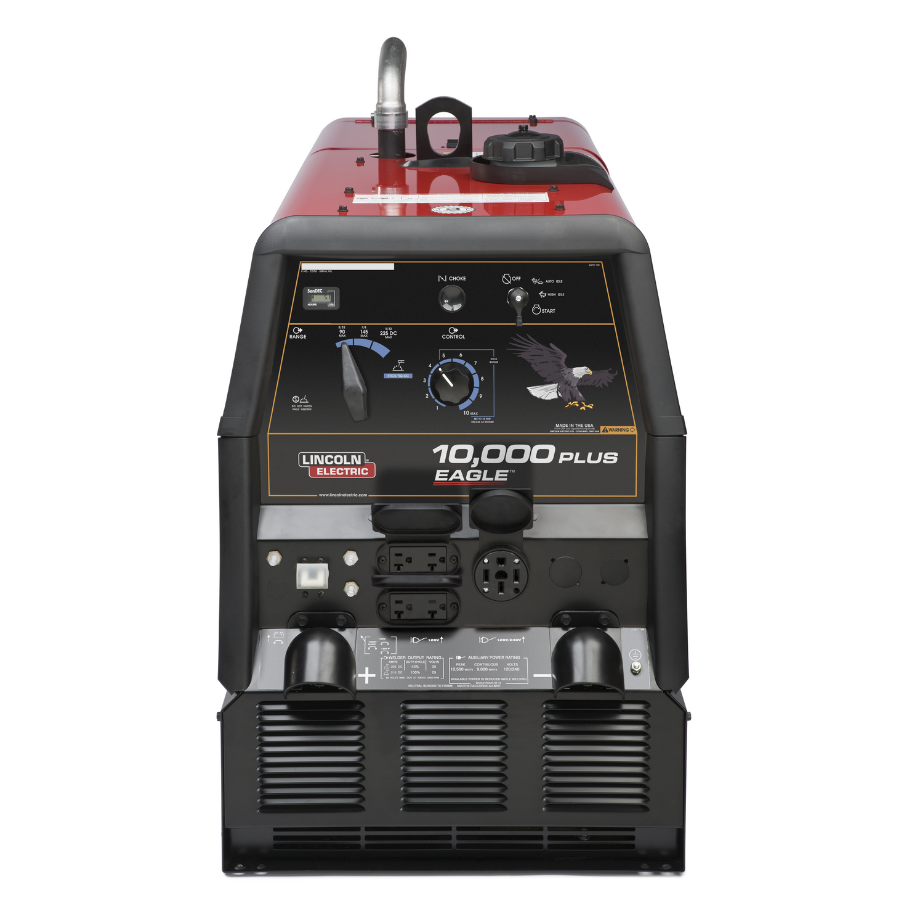

Lincoln Electric Eagle™ 10,000 Plus KOHLER Engine Driven Welder – K2343-3

Make Work Fly with an Eagle™ 10,000 Plus!

A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Eagle™ 10,000 Plus does a variety of basic welding jobs. And with 10,500 watts of surge AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.

• Totally Enclosed Case
  • Engine is fully protected.
  • 3 service access doors.
  • Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
  • • Versatile DC Welding
      • Smooth DC welding output for a broad range of stick electrode types.
      • MIG, flux-cored and basic TIG welding in constant current mode (with optional equipment).⁽¹⁾
      • • Welding Accessories Included
          • 20 ft. (6.0 m) of #2 electrode cable
          • Electrode holder
          • 15 ft. (4.5 m) of #2 work cable and work clamp to get you started!
          • • 10,500 Watts Surge Single-Phase AC Generator Power
              • Surge for motor starting.
              • • • 9,000 watts continuous power for generator, plasma cutter or inverter welder.
                  • Lights, grinder, power tools.
                  • • 23 HP Kohler® Gasoline Engine
                      • 2 cylinder, 4 cycle overhead valve air-cooled design.
                      • Oil drain extension for easy oil changes.
                      • 12 gallon tank for extended run times.
                      • Only 1.3 gallons hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
                      • • Rugged Reliability
                          • Welding and AC generator outputs rated at 104°F (40°C)

                          • • Lincoln Part Number: K2343-3

                              Ships direct from Lincoln Electric, please allow 2 day processing time.
