Parker Torchology Large Centerfire Style Nozzles



Threaded nozzle keeps contact tip centered for better weld placement and less spatter. Holds tips fixed at 1 4 or 1 8 recess, flush, or 1 8 stick out. Composite insulator extends life and withstands heat abuse. Centerfire Nozzles have a built-in spatter shield that smooths and concentrates gas glow for less weld oxidation and contamination.

• 100% Compatibility with OEM Miller Bernard Torches using Centerfire
• Pack of 5 Nozzles
• Manufactured by Parker Torchology

• Features:

  • No tools required to replace tip or nozzle.
  • Drop-In tip with no threads means quick change after burnback, reducing down time.
  • Large diameter tip base and tapered seat provides better electrical conductivity and heat transfer.
  • Spatter shield within nozzle protects diffuser and gives smoother, less turbulent gas flow.
  • Solid, concentric relationship between tip and nozzle keeps tip centered even after hard use… and abuse.
  • Threaded nozzle holds tip fixed at 1 4 or 1 8 recess, flush, or 1 8 stick out.
  • Compatible with all standard air-cooled Bernard Q guns.
  • Complete family of tips and nozzles is available to meet most of your welding needs.

  •

    Options:

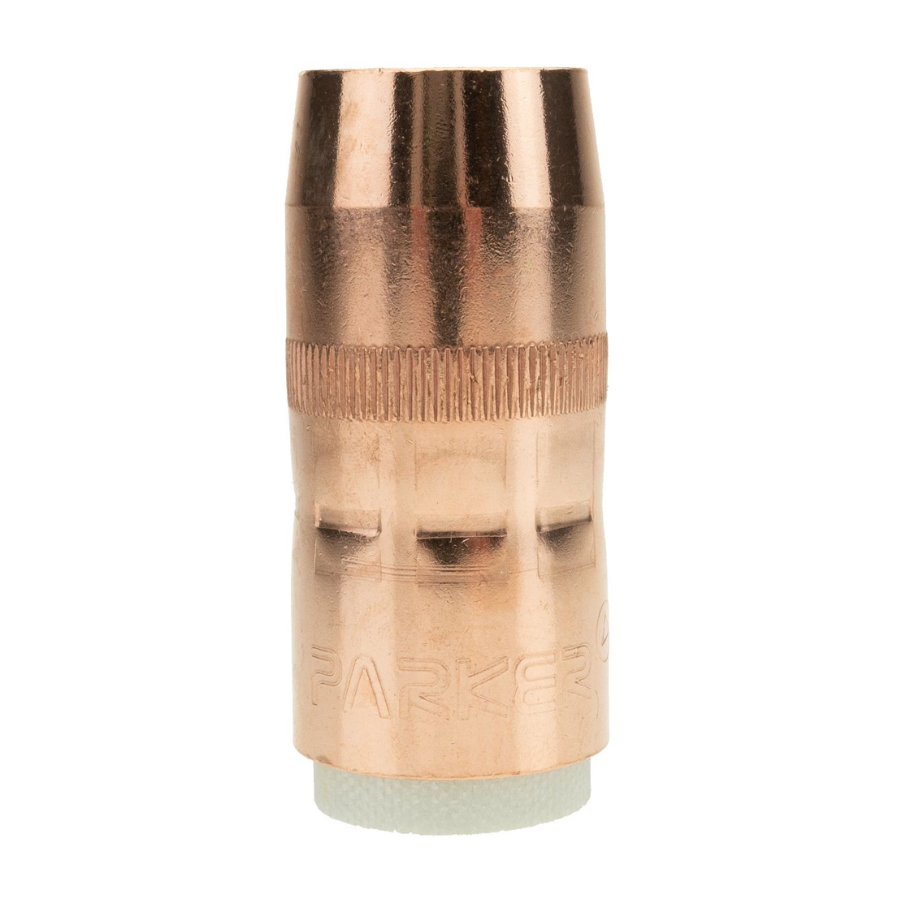

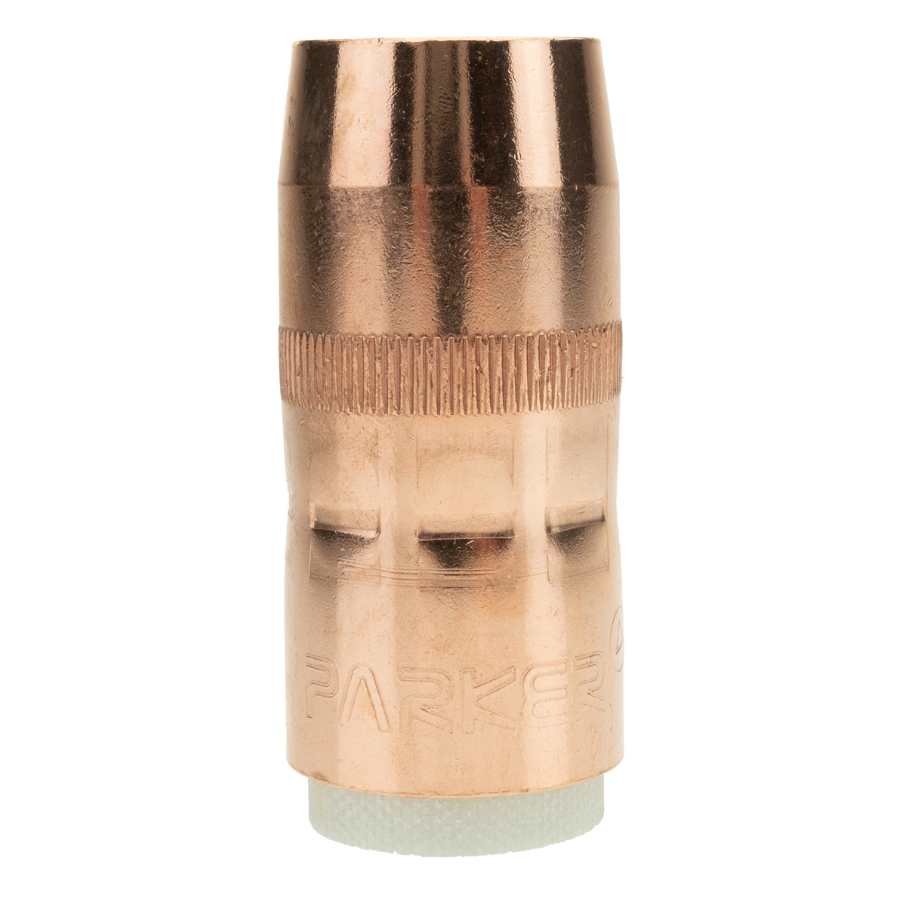

    • PN-3400C – 3 4 – Flush – Copper
    • PN-3418C – 3 4 – 1 8 Recessed – Copper
    • PN-3414C – 3 4 – 1 4 Recessed – Copper

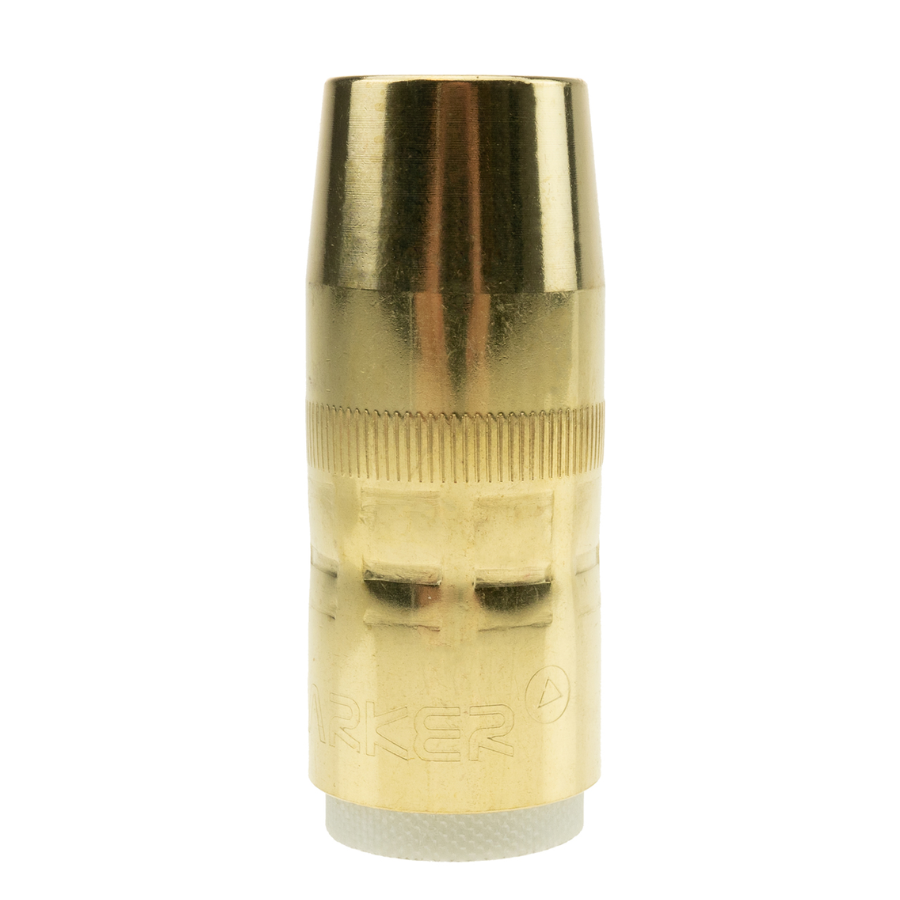

    • PN-3418B – 3 4 – 1 8 Recessed – Brass
    • PN-3414B – 3 4 – 1 4 Recessed – Brass

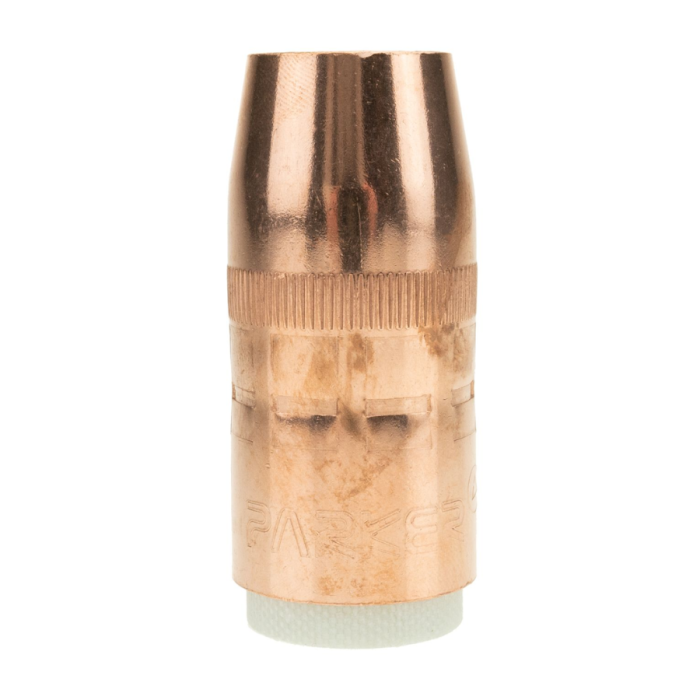

    • PN-5800C – 5 8 – Flush – Copper
    • PN-5818C – 5 8 – 1 8 Recessed – Copper
    • PN-5814C – 5 8 – 1 4 Recessed – Copper

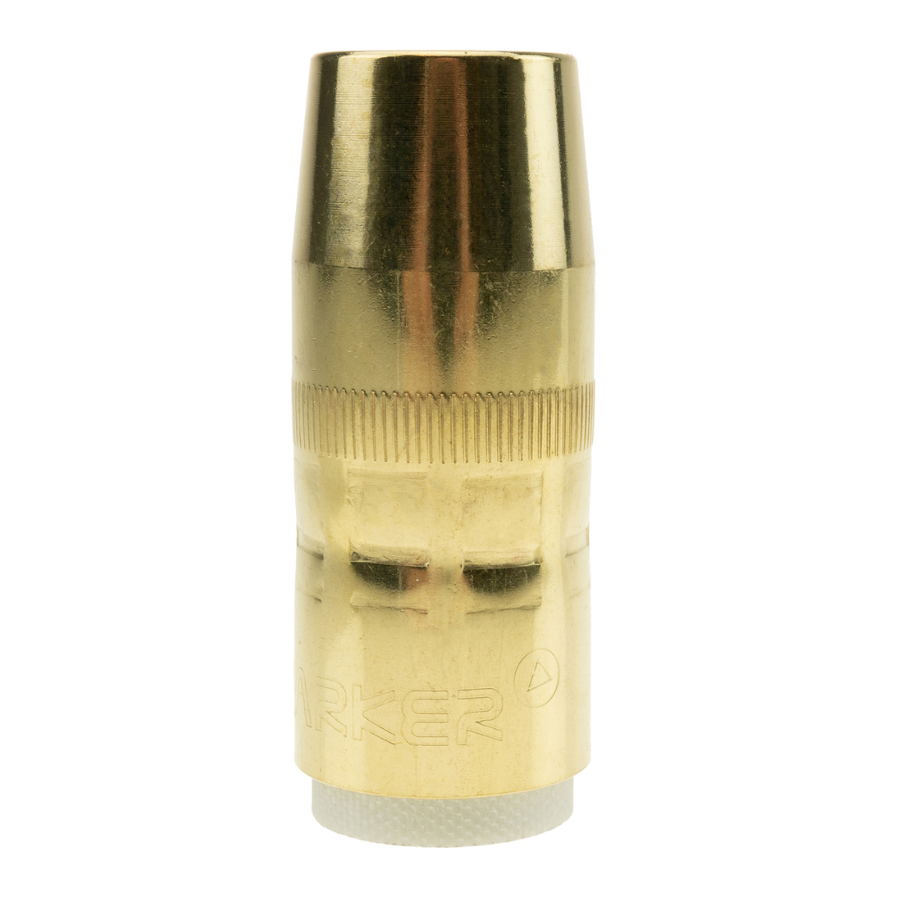

    • PN-5818B – 5 8 – 1 8 Recessed – Brass
    • PN-5814B – 5 8 – 1 4 Recessed – Brass
