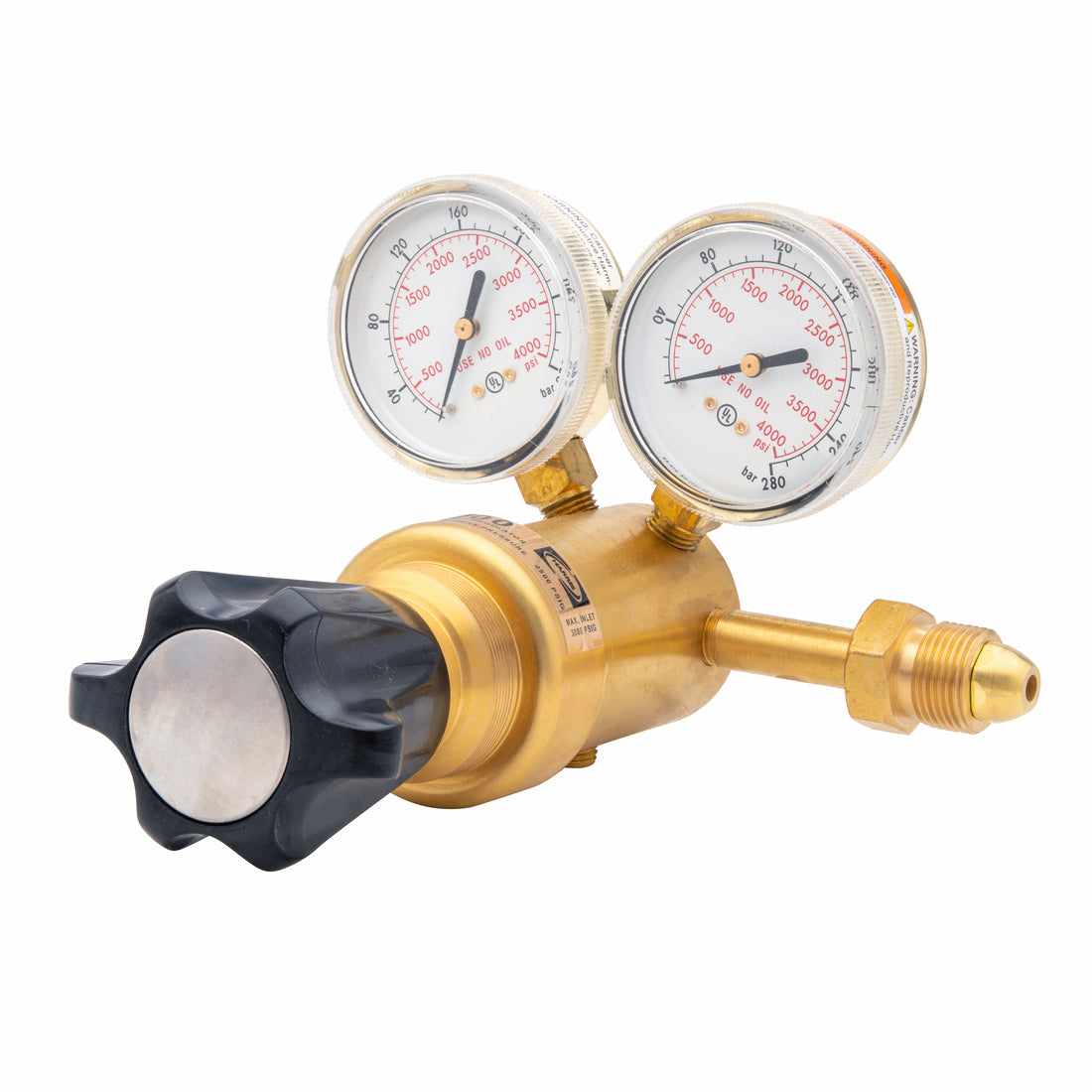

Harris Model HP8700-1500-680 Regulator – CGA-680

Model HP8700 is a single-stage brass regulator that is designed to deliver high outlet pressures from ultra high-pressure cylinders . The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and CTFE (Kel F®) seat. It has a 1 4 in. NPT outlet with stainless steel 1 4 in. tube fitting.

Features

• Operates on high pressure cylinders up to 6000 PSIG
• Brass barstock body and bonnet and brass nozzle for longer service life
• Ergonomic ABS plastic knob for improved grip and precise adjustment
• 2.5 in. Brass barstock dual scale easy-to-read gauges (psi bar)
• One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
• Urethane diaphragm for greater flexibility
• 1 4 in. NPT outlet with stainless steel 1 4 in. tube fitting
• Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
• Conforms to CGA E-4 standard for gas pressure regulators
• Self-relieving for safety
• • Part Number: 3200324
