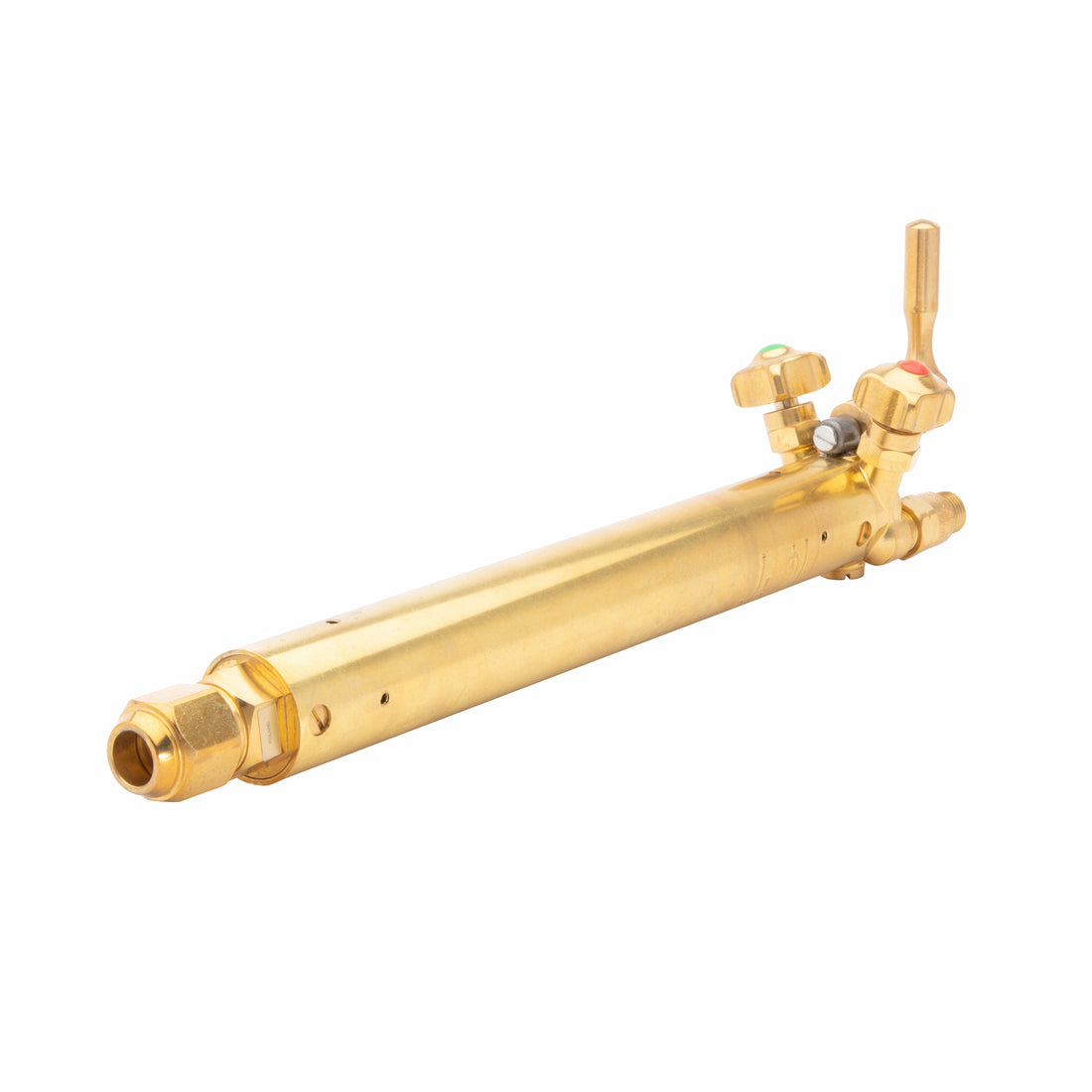

Harris Model 98-6ER-32 Machine cutting Torch



Model 98-6ER-32 is a heavy duty machine cutting torch for all types of machine cutting applications including straight and contour cutting. With a solid brass head and brass body, it is strong, rugged and dependable. It features an “E” equal or positive pressure mixer for all fuel gases. The quick opening cutting oxygen valve provides for immediate full flow.

This 2-hose style torch has a lever cutting valve, a barrel diameter of 1 3 8 and a 32 pitch (10.12 teeth in.) rack that will fit any industry standard torch holder. This torch is equipped with FlashGuard® check valves on preheat oxygen and preheat fuel. It has a cutting capacity of 8 (203.2mm). For best performance, use with Harris Model 6290 high speed machine cutting tips. Recommended for Acetylene.

Features

• 2 hose style with rack
• “E” or positive pressure mixing system
• 10 barrel length
• Lever type cutting valve
• Cuts up to 8 (203.2mm) plate
• Standard 1 3 8 diameter barrel
• Solid brass head and brass body
• Equipped with FlashGuard® check valves
• Engraved with model number and size for easy identification
• UL® listed
• Harris Part Number: 1101425 – 98-6ER-32 – 10 Length torch with Rack
