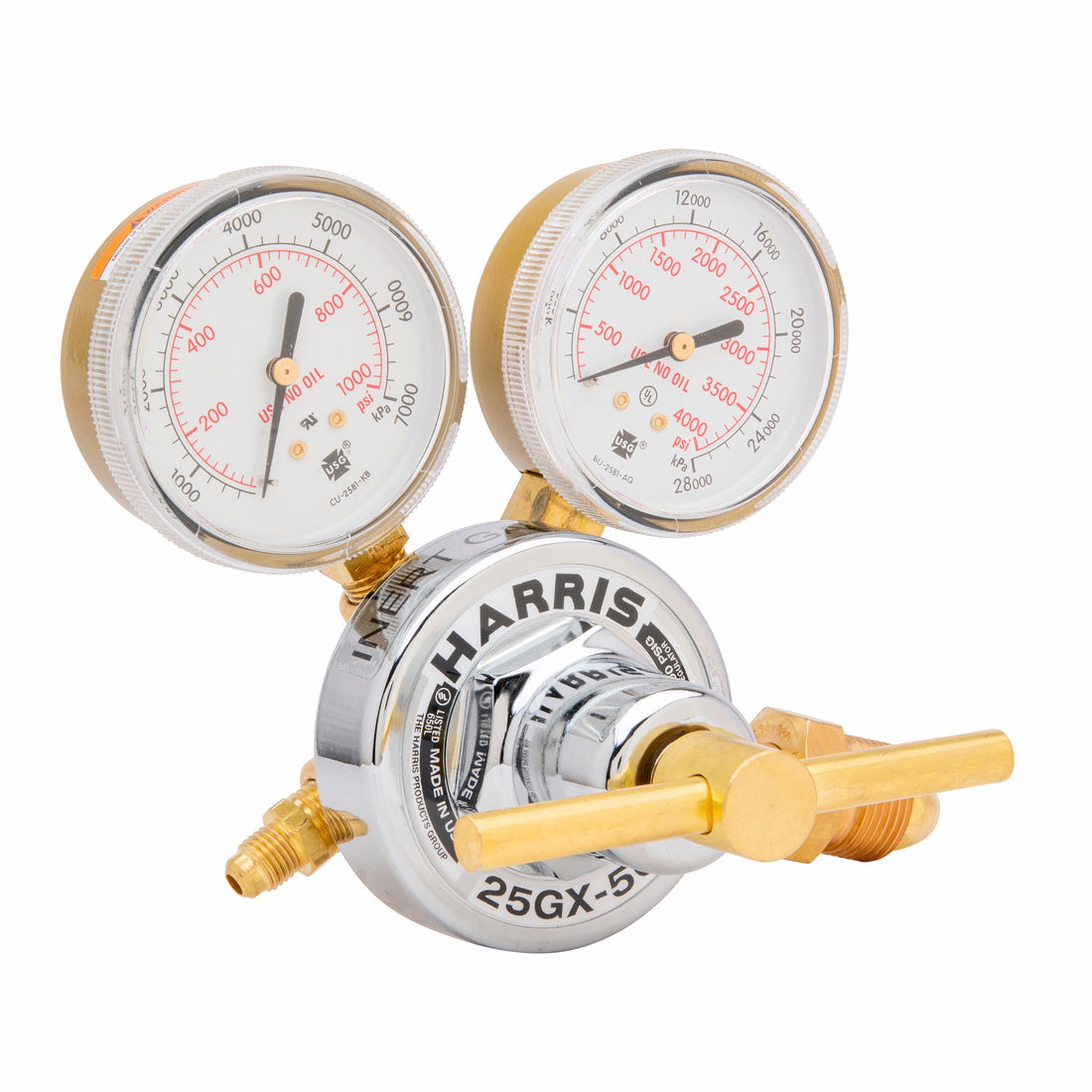

Harris GX25 HVAC Nitrogen Purging Regulator



This single-stage nitrogen purging regulator is designed for performance and economy, it is with features typically available in more expensive regulators. Specifically designed for HVAC and other nitrogen pressure testing and blanketing applications.  Features a T bar for easier adjustment at high pressures.

Details

• HVAC PURGING Capacity: Medium to heavy duty
• Inlet Connection: CGA 580
• Outlet Connection: 1 ⁄ 4 45º Flare SAE
• Delivery Pressure: 0 – 500 psig
• Max Inlet Pressure: 3000 psig
• Cv : 0.17
• Gauges: 2.5 Steel dual scale
• Pressure Regulation: 0.2 PSIG 100 PSIG
• Seat: One-piece encapsulated seat design with internal filter and PTFE Teflon ® seat
• Certifications: CGA E-4
• Where Used: HVAC purging, pressure testing and blanketing
• Weight: 3.2 lbs. 1.45 kg.
• 7 year Warranty

• Part No. 3000606

  Model No. 25GX-500-580
