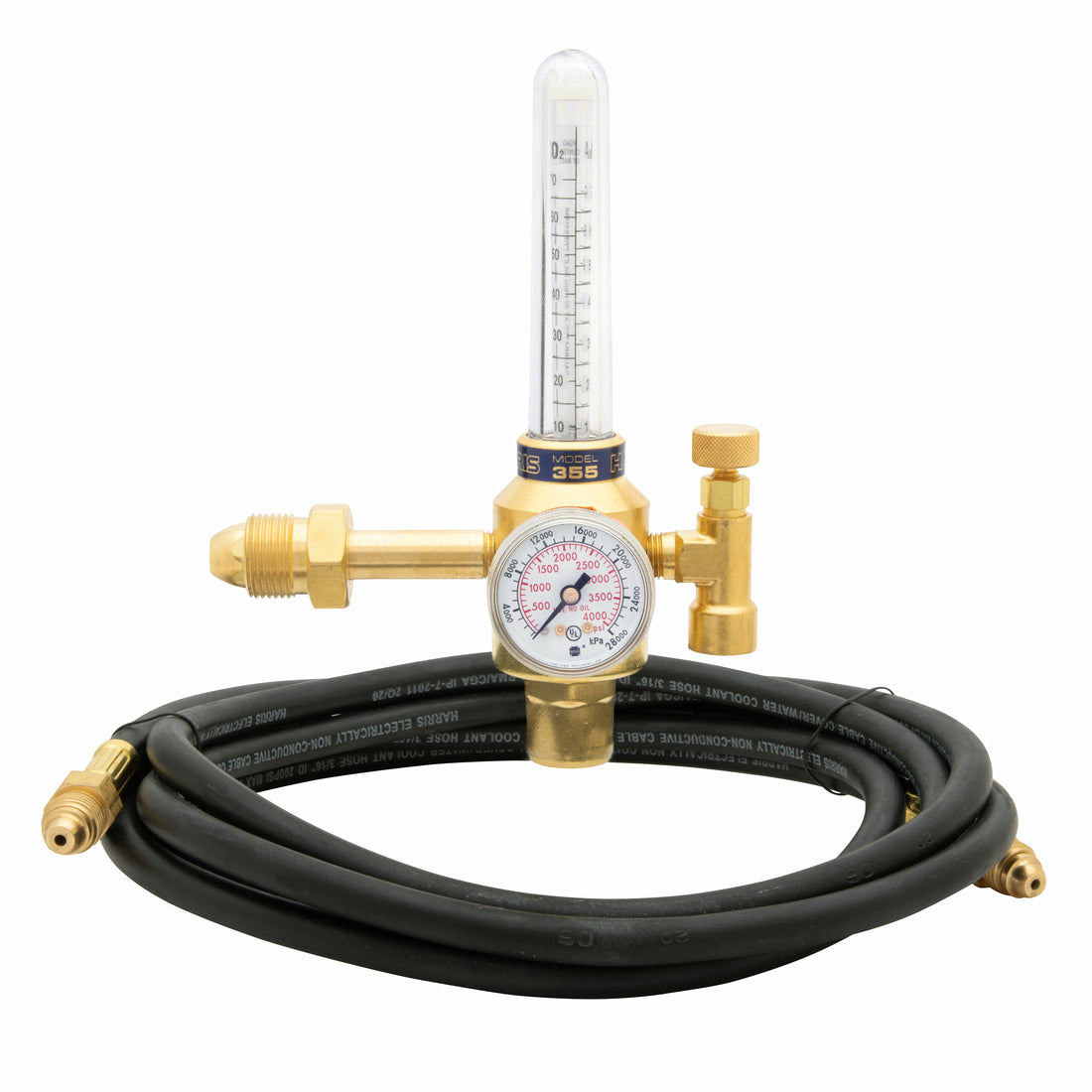

Harris Argon Flowgauge Regulator Shielding Gas Kit Model 301



The Model 355 flowmeter regulator kit is designed to control Argon shielding gases. The kit is supplied with a 3⁄16 in. x 10 ft. approved inert gas hose. Model 355-2 incorporates a regulator and flowmeter into one compact unit. It is compensated to 20 PSIG. The flow tube and float are easily changed for different gases. As supplied, the flow tube has dual calibration. It includes a sensitive needle valve for finger-tip control and durable, easy-to-read, flow tube and cover. The regulator features a brass body, steel dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. This flowmeter regulator is UL® listed. The outlet connection is 5 8 in. – 18 (F). Vertical mounting only.

Features

• Compact, pressure compensated to 20 PSIG UL® listed shielding gas kit to control argon
• Brass body and bonnet for longer service life
• Neoprene diaphragm for better pressure control
• 1.5 in. Steel dual scale easy-to-read gauge
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Durable cover and easy-to-read flow tube provides accurate flow-control to 70 SCFH
• Dual calibration on flow tube
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Flow tube and float are easily changed for different gases

• Part No. 3100211

  Model No. 355 KIT
