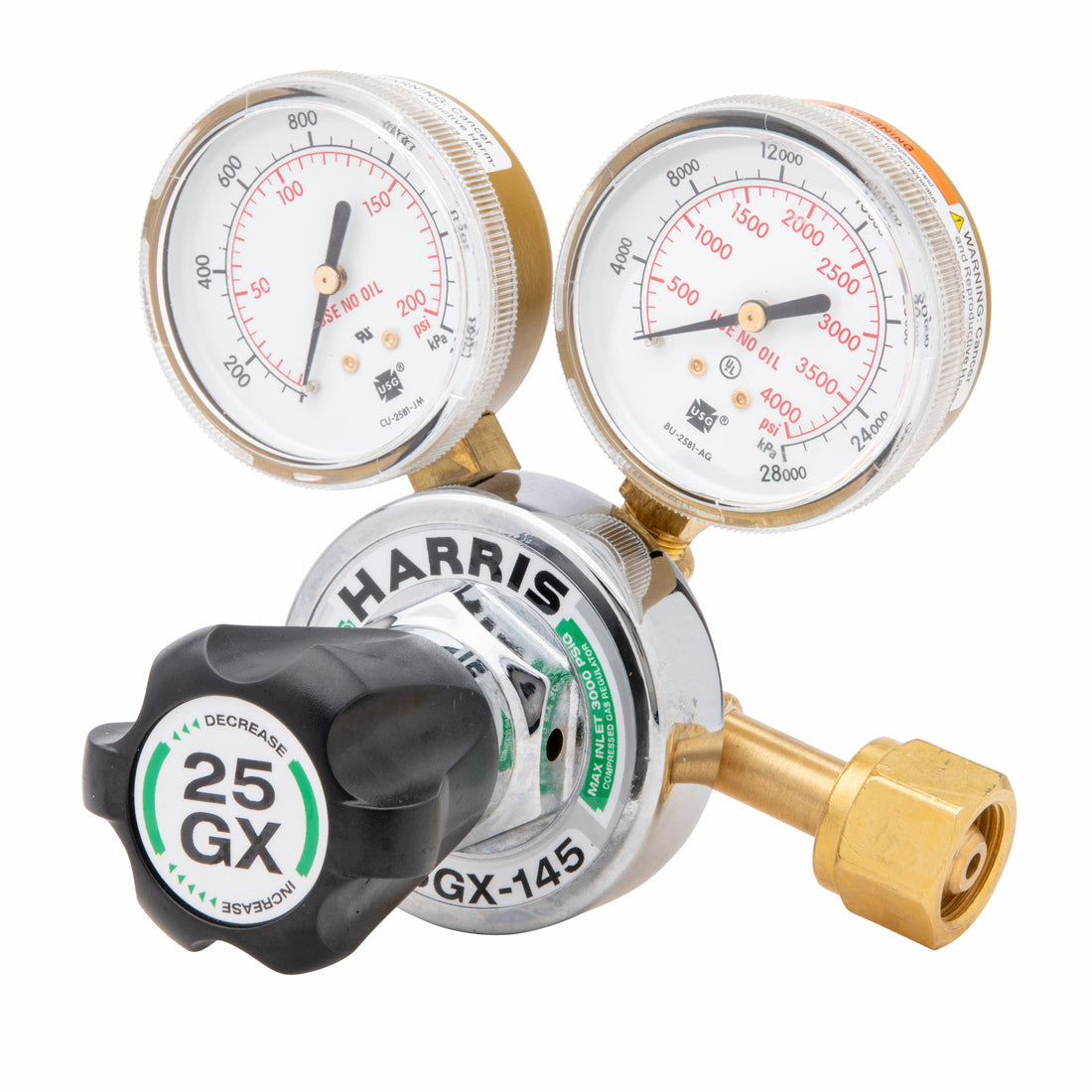

Harris 25GX-50-540 Oxygen Regulator



Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.

Features

• High end features for economical price
• Workhorse of Harris industrial regulator line
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• Brass body and chrome-plated zinc bonnet for longer service life
• Neoprene diaphragm for better pressure control
• 2.5 Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• UL® listed CGA E-4

• Featured In: Steelworker® Classic & V-Series® kits


• Weight: 2.9 lbs. 1.32 kg


• 25GX-50-540 Specifications

  • Max Inlet Pressure: 3000 psi.
  • Outlet Pressure: 0-50 psi
  • Inlet Connection: CGA 540
  • Outlet Connection: 9⁄16 – 18 LH
  •
