Mathey Dearman Fit-Up Pro Pipe Fitter s Protractor

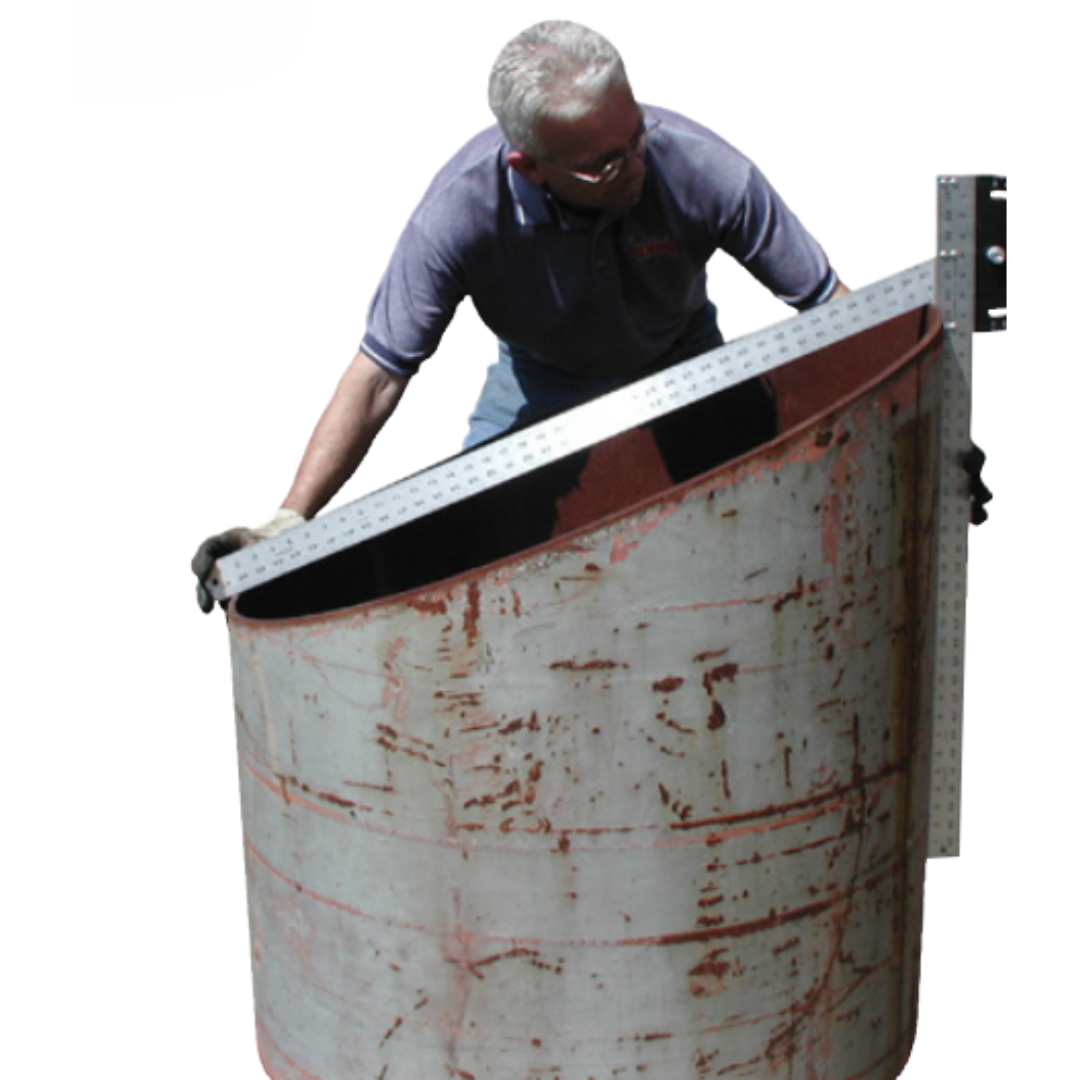

The large protractor will measure squareness of pipe ends up to 40 1,016 mm diameter or can be used to check large pipe miter angles up to 180º. Leg lengths of 48 1,219 mm and 36 194 mm.

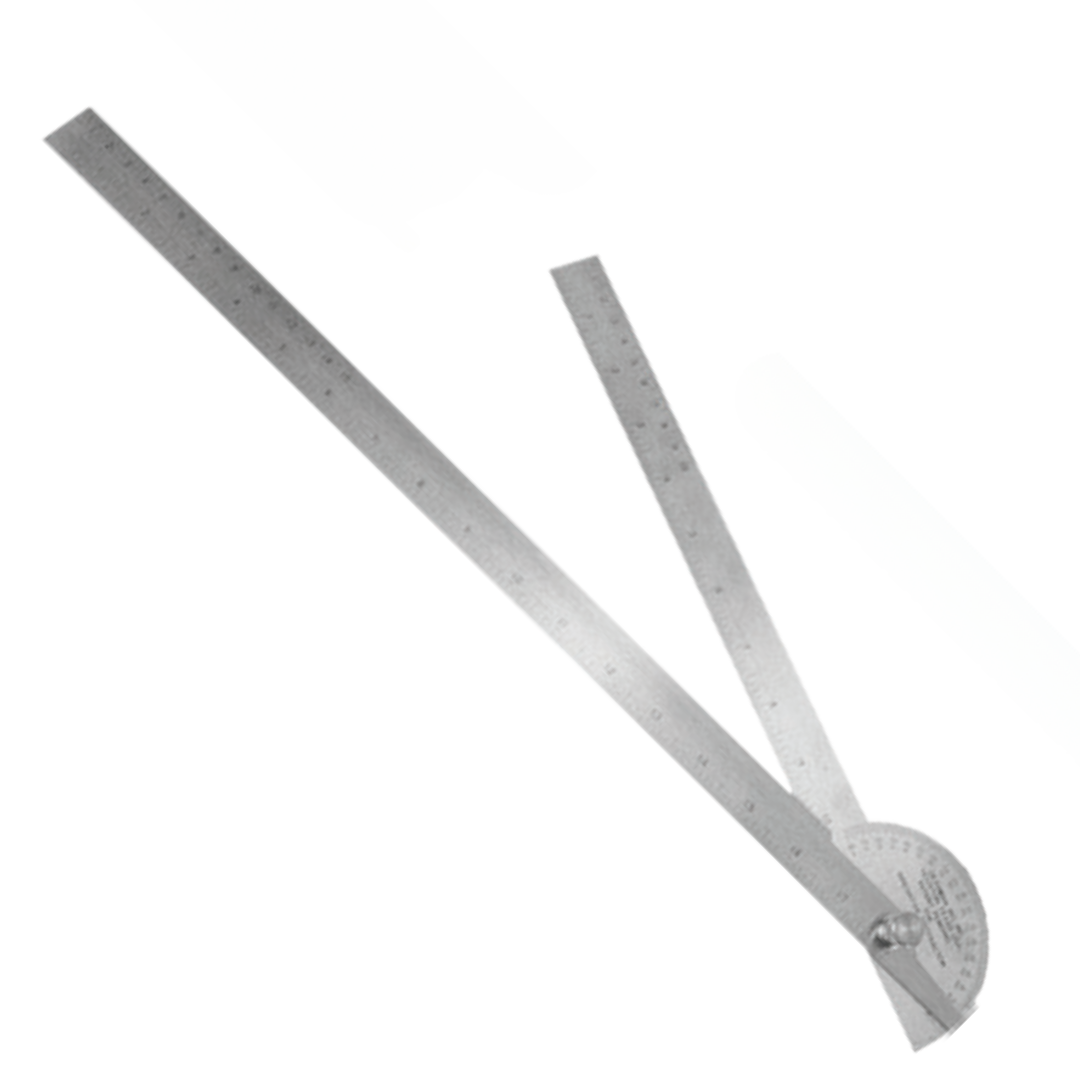

The small protractor is an excellent tool for sheet metal layout, checking squareness of pipe ends up to 17 432 mm diameter. It has a large 18 457 mm leg, a shorter 12 305 mm leg and it is accurate to ± 1°.

The mini protractor can be used for a variety of applications including measuring bevel angle.

Options:

• Mini Protractor  – DXX-250 – Stainless Steel
• Small Protractor – DK-239 – Stainless Steel
• Large Protractor  – DK-100 – Aluminum
