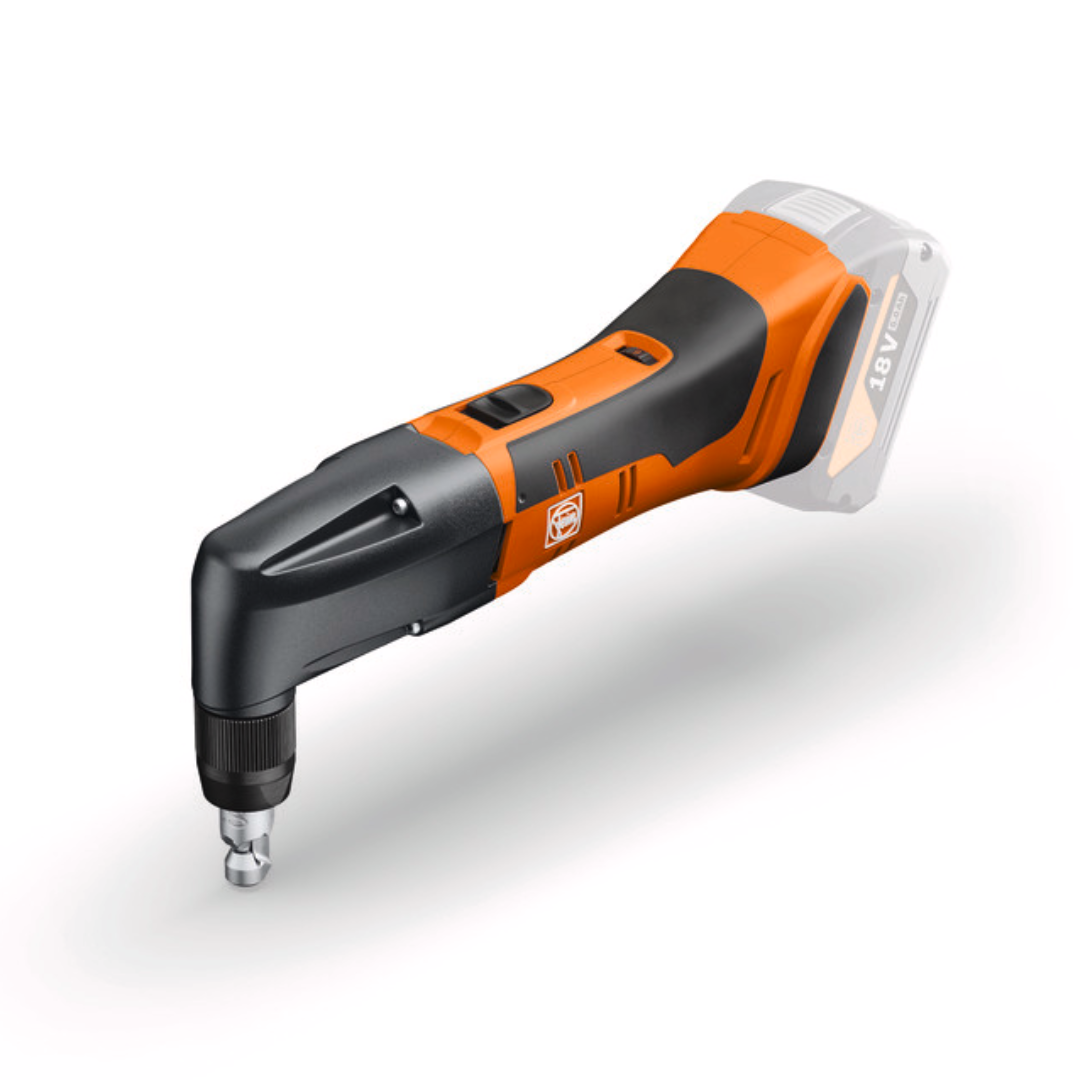

FEIN 18v Cordless 17 gauge Sheet Metal Nibbler – ABLK 18 1.3 CSE AS



Compact, maneuverable nibbler for roof and facade construction. Precise cuts in corrugated sheet metal up to 17 gauge [1.3 mm] thickness.

Features:

• Rotating round punch
• Cutting direction: 8 x 45°
• QuickIN
• Variable Speed

• Options:

  • Full set: 7 132 05 65 09 0
  • Tool Only: 7 132 10 61 09 0

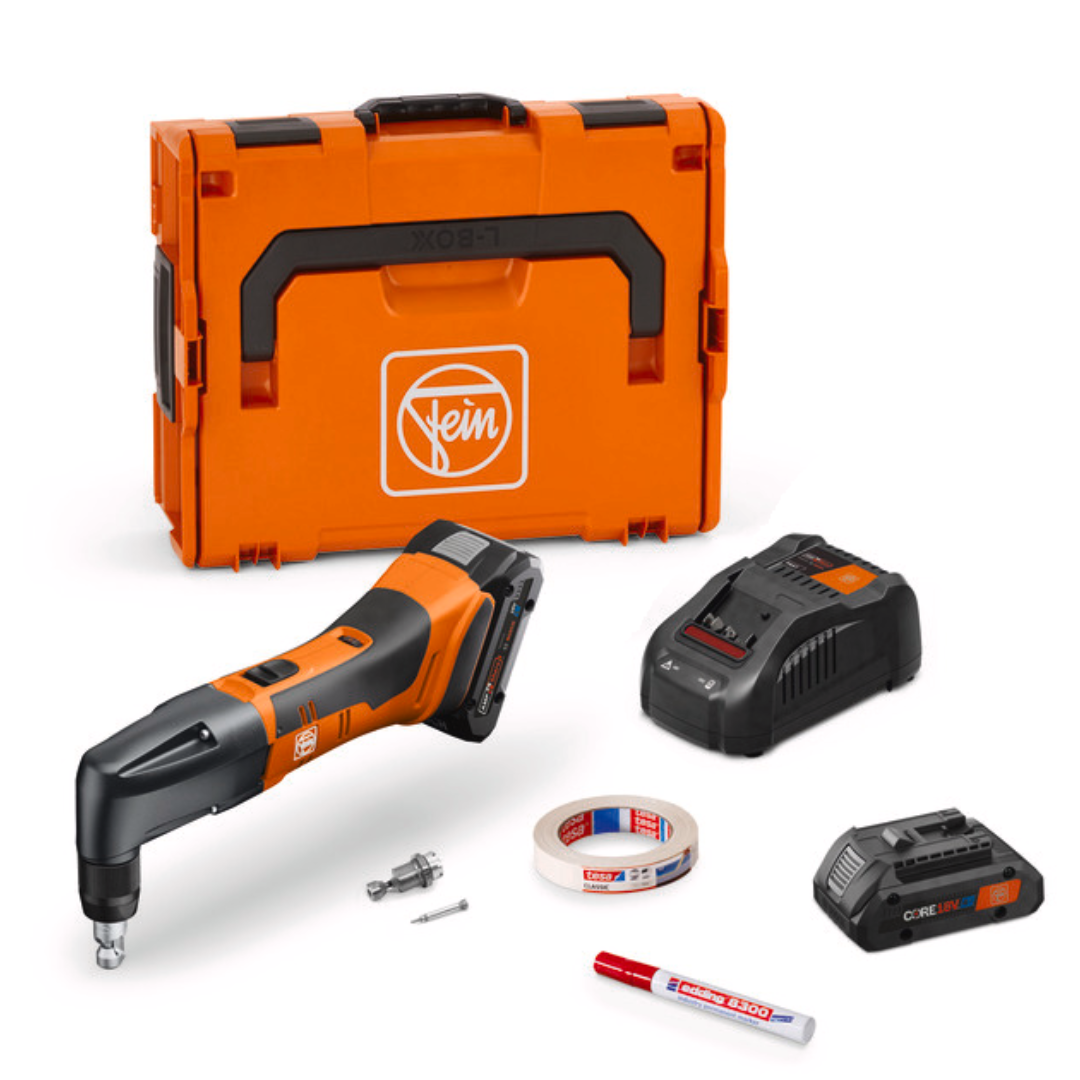

  • Items Included in full set:

    • (1) die for corrugated sheet metal (30109169009), mounted
    • (1) punch (6 36 02 050 00 0)
    • (1) punch and die set (30109169030)
    • (1) permanent marker (32133037000)
    • (1) roll painter s tape (32133038000)
    • 2 Li-ion battery packs (18 V 4 Ah)
    • (1) rapid charger BC 1880 CV AS (92604335010)
    • (1) tool case (L-BOXX 136)

    • Items Included with Tool Only:

      • (1) die for corrugated sheet metal (30109169009), mounted
      • (1) punch (6 36 02 050 00 0)
      • (1) tool case (L-BOXX 136)

      •  Specifications:

        Battery voltage		18 V
        Battery compatibility		Li-ion CORE 18 V Li-ions
        Battery interface		18 V AMPShare
        Strokes		1 000 – 1 600 spm
        Cutting speed		6 [1.9] ft min[m min]
        Steel 58,000 lbf in²		3 64 [1.3] in[mm]
        Steel 87,000 lbf in²		1 32 [0.8] in[mm]
        Steel 116,000 lbf in²		1 32 [0.6] in[mm]
        Non-ferrous metals up to 36,000 lbf in²		3 32 [2] in[mm]
        Cutting width		3 16 [5] in[mm]
        Immersion Ø with die		3 4 [19] in[mm]
        Radius of smallest curve (inside outside)		9 16 [15] 3 4 [20] in[mm]
        Weight without battery		3.70 [1.68] lbs[kg]



        Options	Full Set – 71320565090, Tool Only – 71321061090
