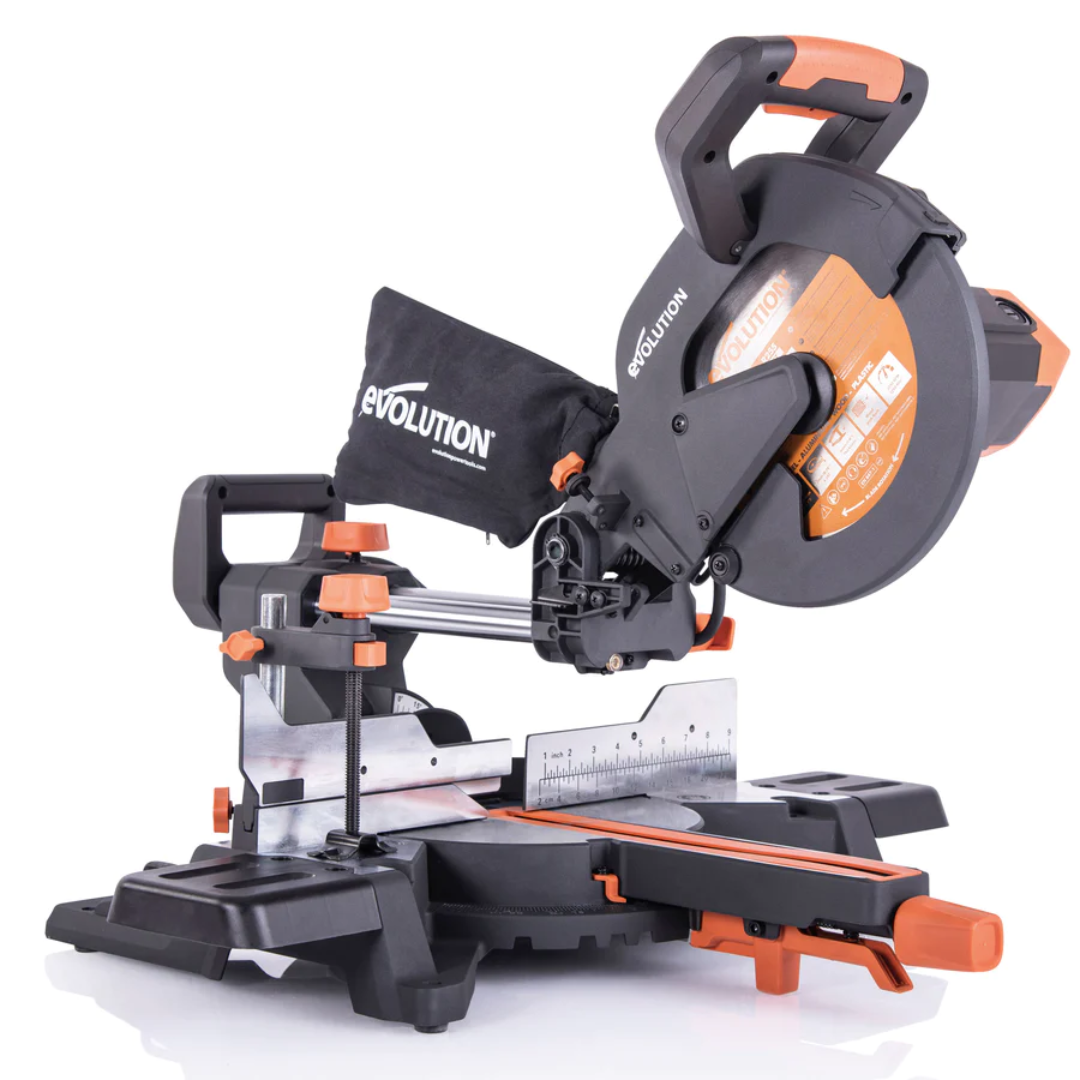

Evolution R255SMS+: Single Bevel Sliding Miter Saw With 10 In. Multi-Material Cutting Blade

Evolution R255SMS+: Single Bevel Sliding Miter Saw is everything you asked for in a miter saw and more. Capable of cutting 4-inch posts, cornices, skirting and hardwoods such as oak, walnut, maple and more. The speed and power of the hi-torque motor and the configuration of the Evolution blade tooth design allow you to cut through a variety of materials with ease.

Features:

• Multi-Material cutting technology
• Accurate cutting with 11-3 4 inch sliding functionality, adjustable depth of cut and laser precision guidance
• Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks

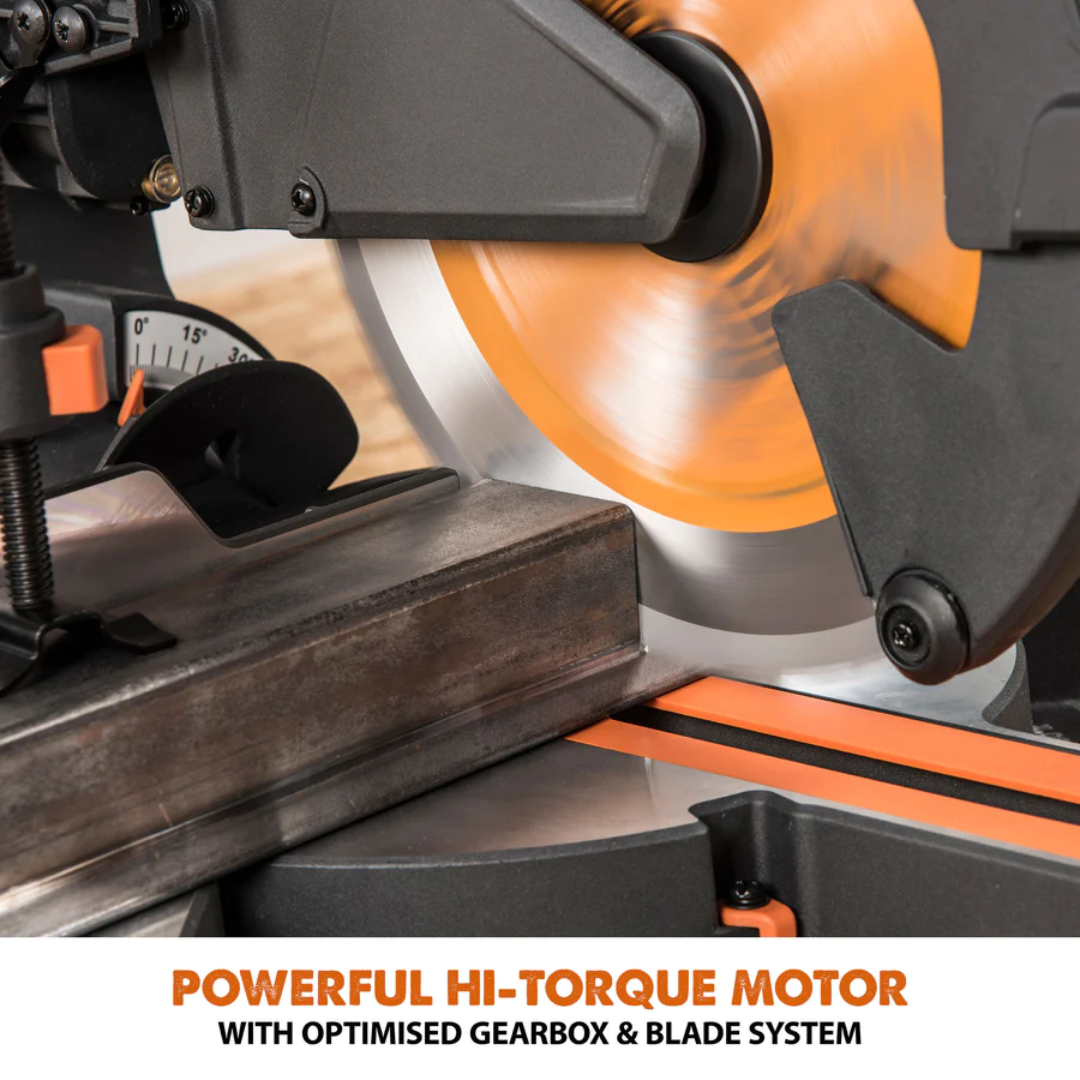

• Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease
• Perform accurate Crosscuts, Miter cuts, Bevel cuts and Compound cuts with adjustable precision settings

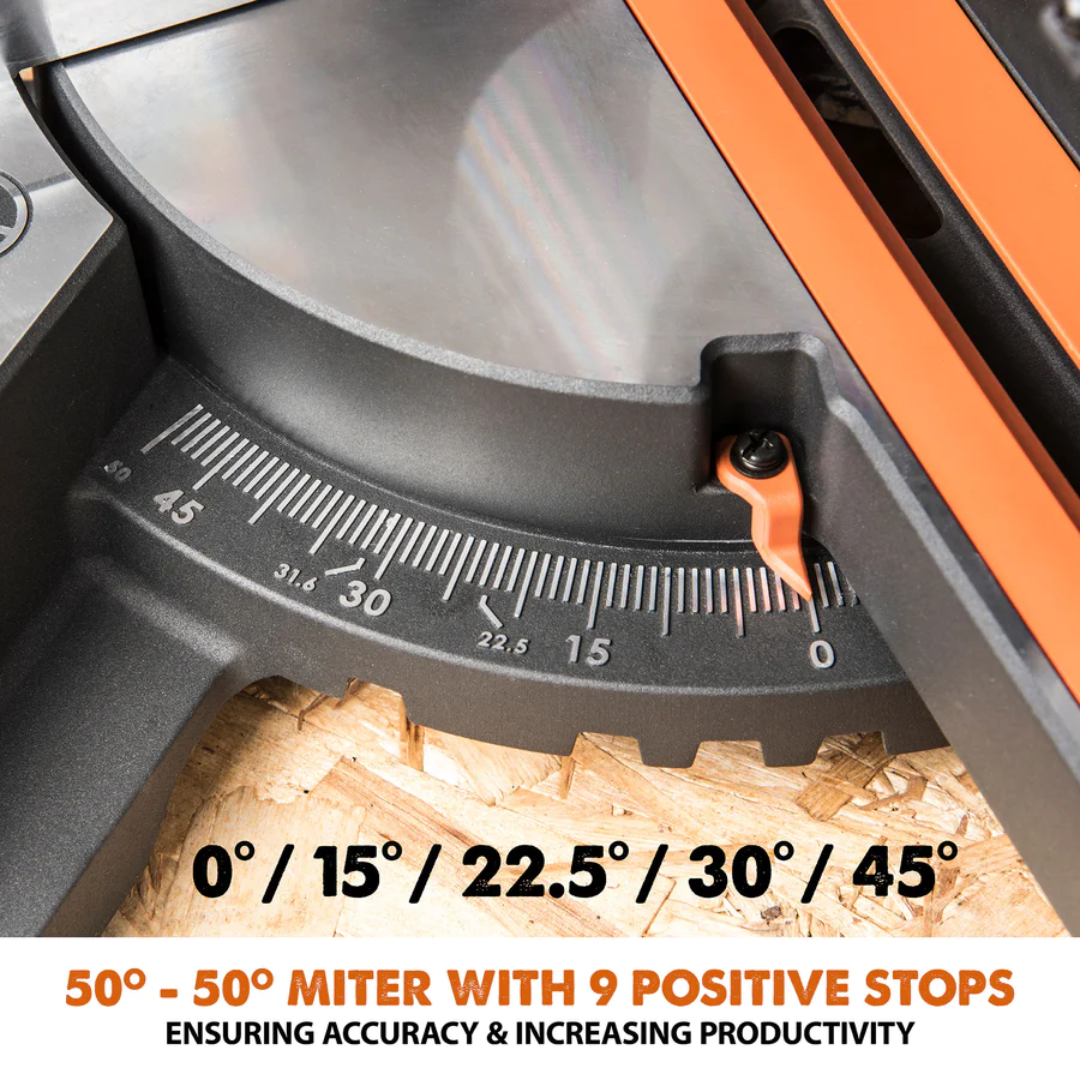

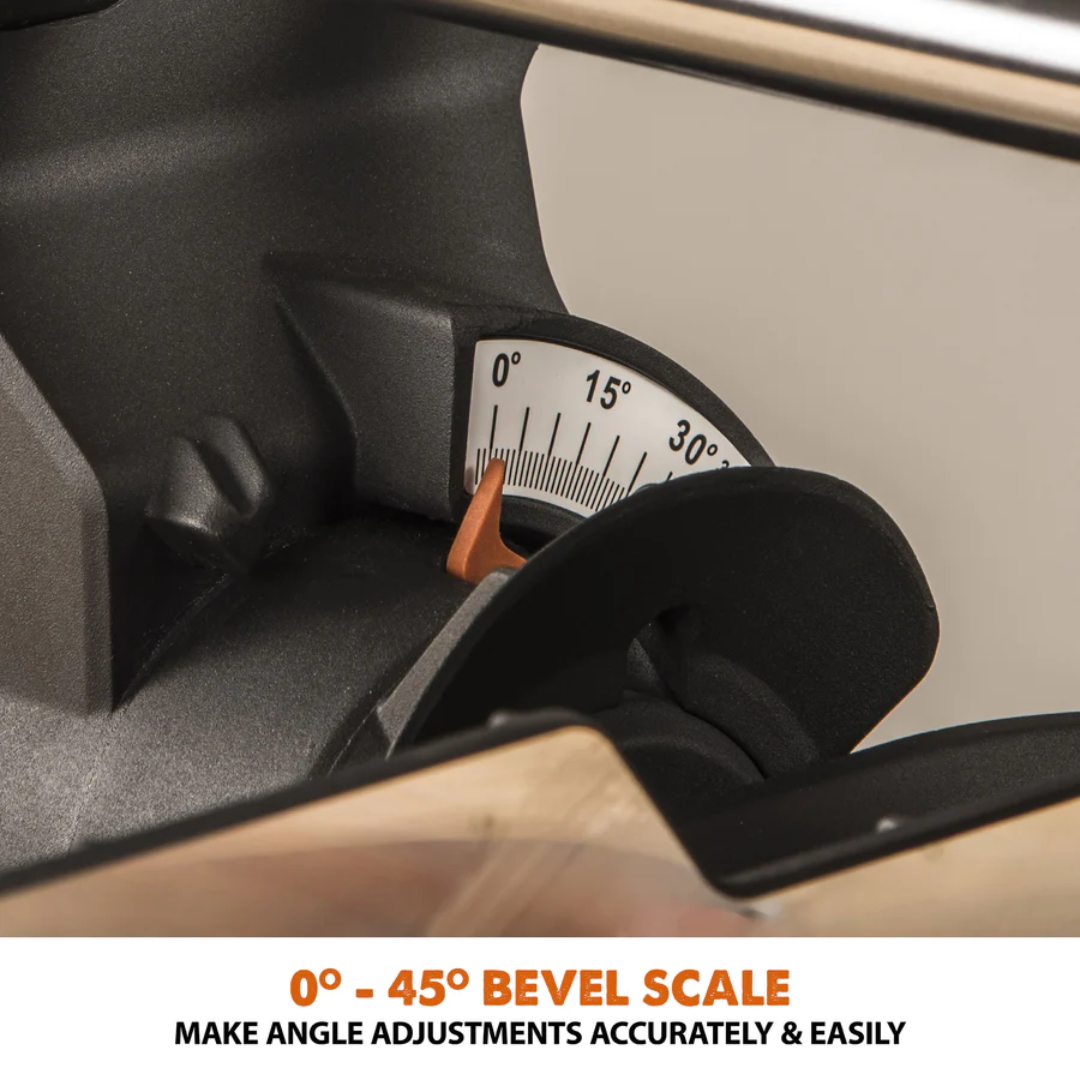

• Cut to within + – 0.5˚ with 0° – 45° bevel tilt and 50˚ – 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left and right
• An impressive 11-3 4 x 3-9 16 inch max. crosscut capacity enables you to cut 4 x 4-inch posts
• Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain
• Compatible with Evolution s Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease
• 3 Year limited warranty
• Manufacturer Part Number: R255SMS+

• Items Included:

  • Machine Table Extensions
  • Rotary Table And Neck
  • Carriage Slides
  • Mains Cable Guide Clamp
  • Socket Headed Screws
  • Laser Lens Cap
  • Carry Handle
  • Dust Port Adaptor
  • 3pc Hold Down Clamp
  • Double Ended Hex Key (M6 & M5)
  • Cutting Head
  • Mitre Locking Knob
  • Self Tapping Cap Screw
  • Cable Clamp Component
  • Double Ended Cable Clip
  • Tall Fence
  • Dust Collection Bag
  • 10 inch 28 Tooth Blade

  • Specifications:

    Motor (120V 60Hz):		15 A
    Speed No Load:		2500 rpm
    Max. Bevel (Left):		0° – 45°
    Max. Miter:		50° – 50°
    Cable Length:		10 ft
    Blade Dia.:		10 in.
    No. of Teeth:		28
    Bore:		1 in.
    Kerf:		0-5 64 in.
    Max. Cross Cut (0° x 0°):		11-3 4 x 3-9 16 in.
    Max. Bevel Cut (0° x 45°):		8-1 4 x 3-9 16 in.
    Max. Miter Cut (45° x 0°):		11-3 4 x 2 in.
    Max. Compound Cut (45° x 45°):		8-1 4 x 2 in.
    Mild Steel Plate (Max. Thickness):		1 4 in.
    Mild Steel Box Section (Max. Wall Thickness):		1 8 in.
    Product Dimensions:		14-3 16 x 27-3 4 x 28-47 64 in.
    Packaging Dimensions:		22-1⁄4 x 14-3⁄8 x 20-15⁄32 in.
    Product Weight:		33.7 lbs
    Packaged Weight:		39.2 lbs
    Sound Pressure Level LPA:		95,8 dB(A) K=3 dB(A)
    Sound Power Level LWA:		108,8 dB(A) K=3 dB(A)
