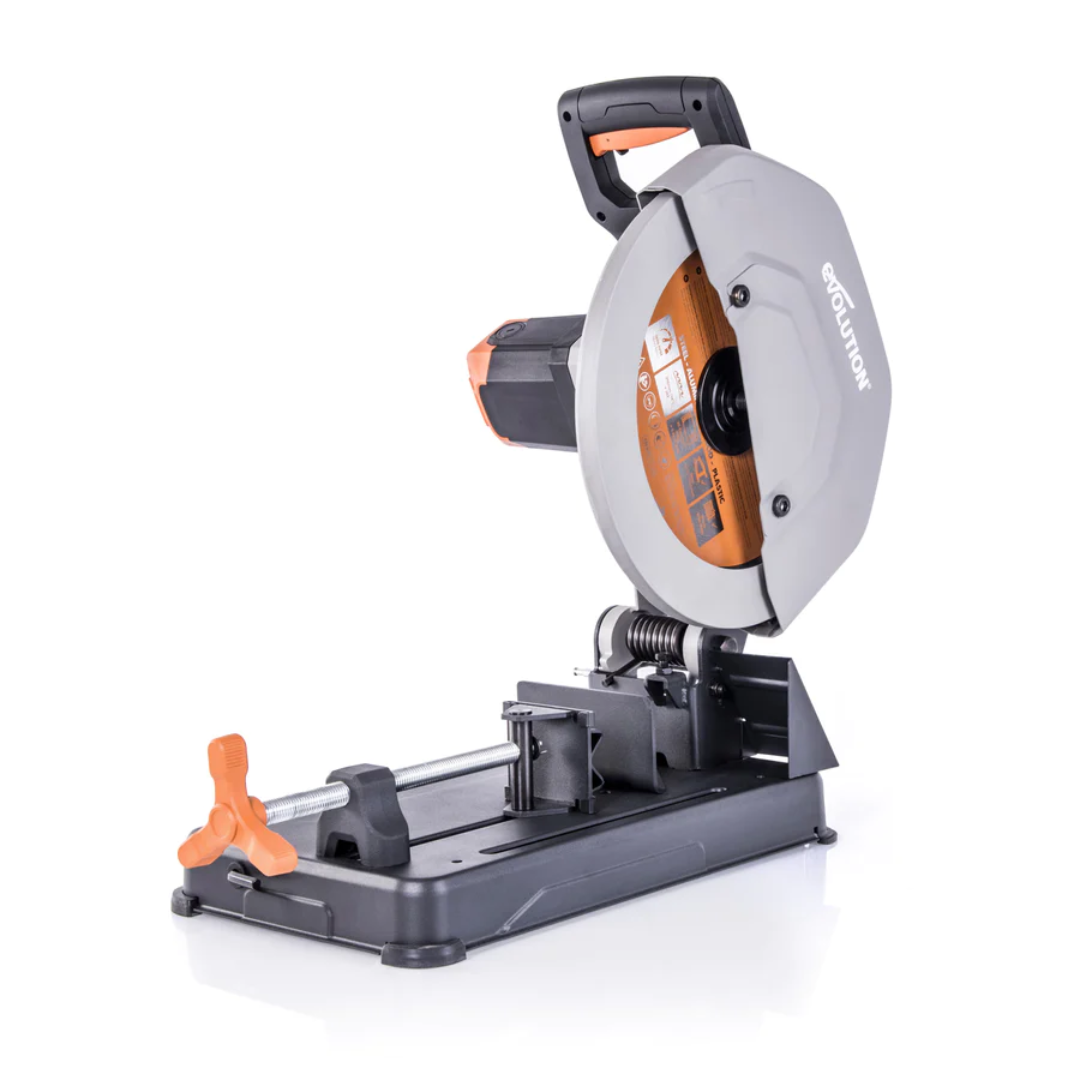

Evolution R355CPS: Multi-Material Cutting Chop Saw With 14 In. Blade



This light duty model is perfect for the DIY or occasional user.  The same proven design as the S355CPSL and backed by Evolutions unbeatable three year warranty.

Features:

• Cut up to 4-3 4 inch square tube, 3-3 4 inch x 7-1 8 inch rectangle tube and Ø5-1 8 inch round tubes.

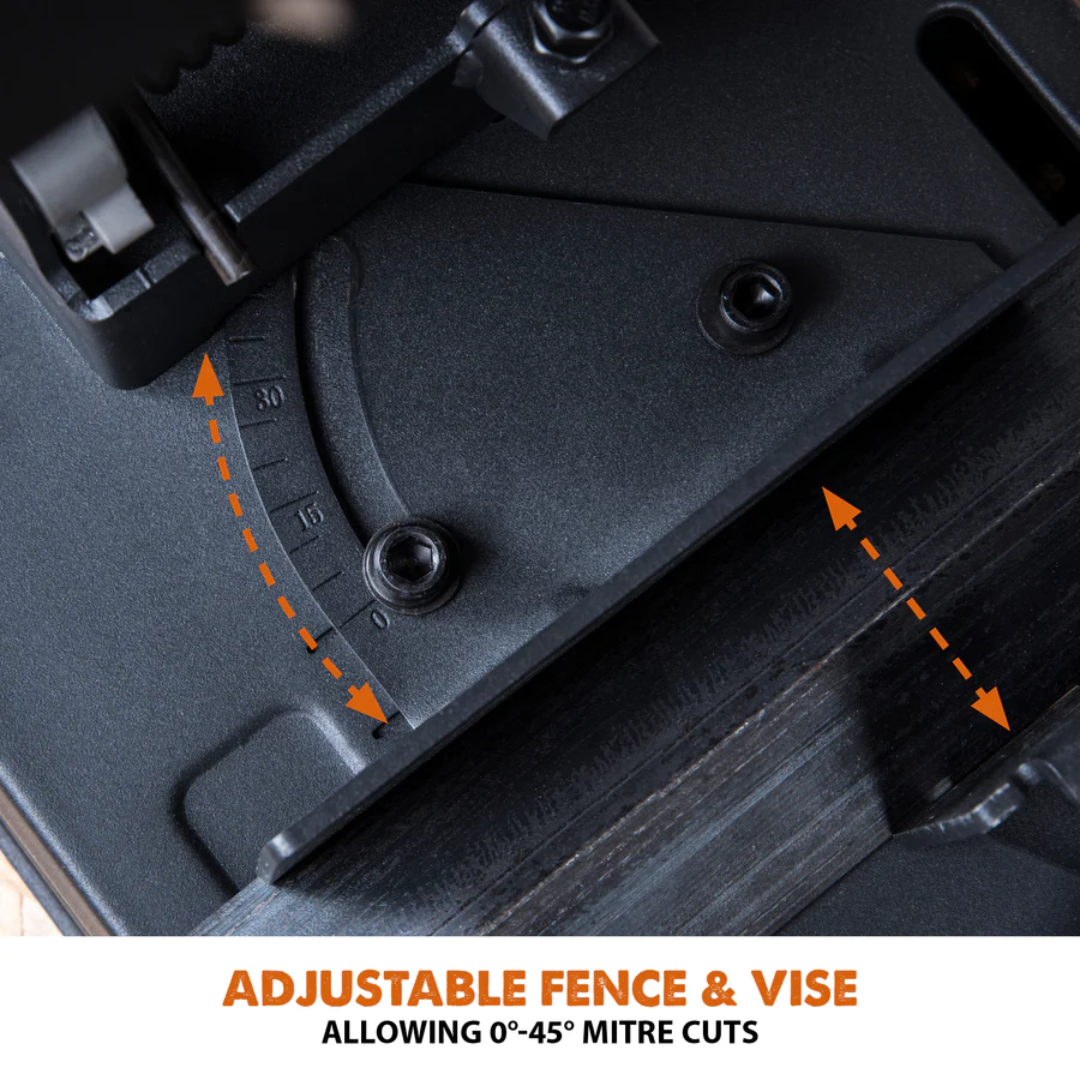

• Adjustable 3-position, rear fence, and a fast action vise clamp with a V block to support round tube, allows miter cuts to be made from 0° – 45° in seconds.
• 15A Hi-torque gearbox and blade system, increases motor life and blade-life. Heavy duty, pressed-steel base and rubber feet reduces vibration and increases cutting performance.
• Cold Cut Technology
• Instant workable finish
• Manufacturer Part Number: R355CPS
• 3 Year Manufacturer Warranty

• Items Included:

  • 14” Multi-Material Cutting TCT Blade (Fitted)
  • Instruction Manual
  • 5 16 (8mm) (Blade Change) Allen Key
  • V-Block

  • Specifications:

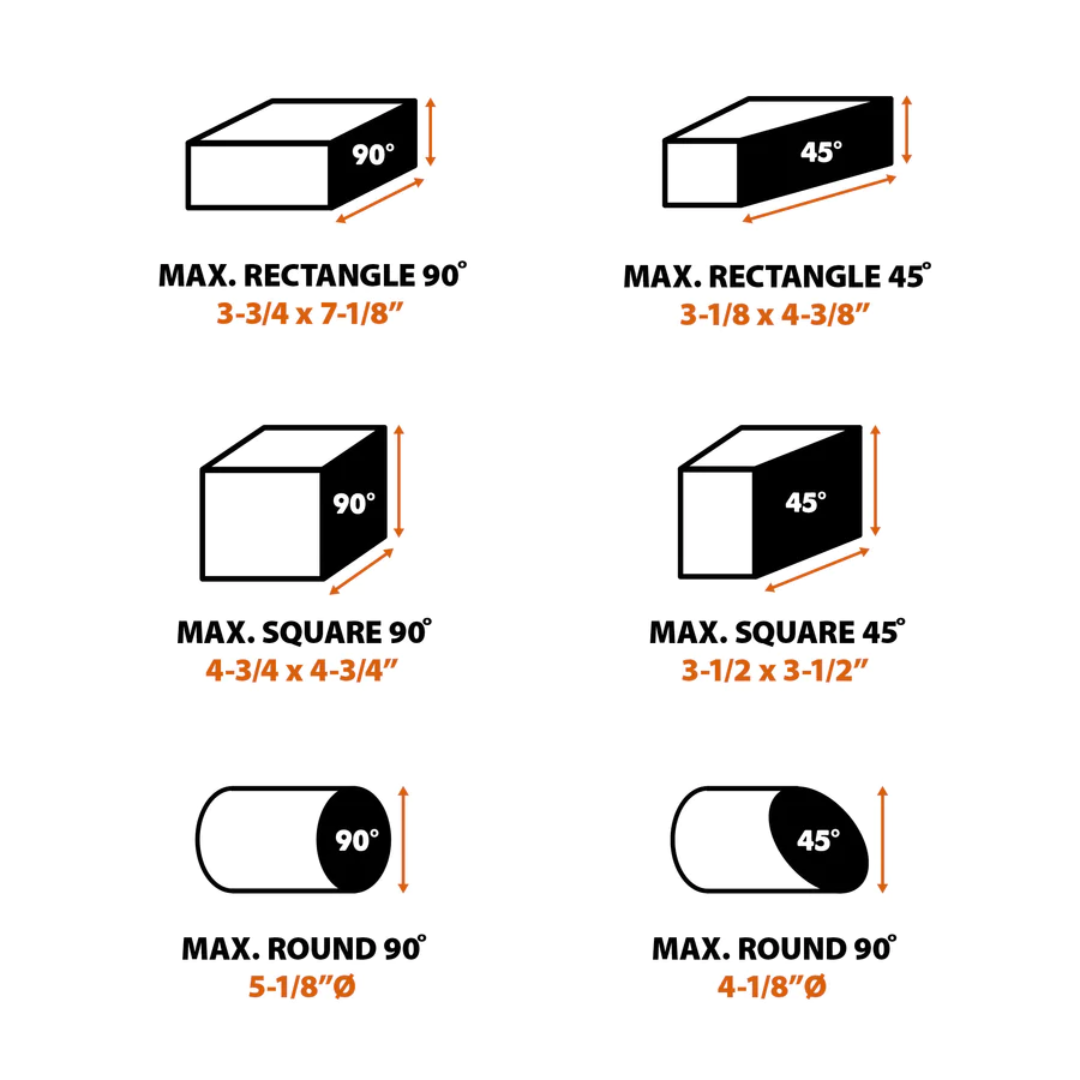

    Max. Rectangle Tube (0° x 0°)		3-3 4 x 7-1 8”
    Max. Rectangle Tube (0° x 45°)		3-1 8 x 4-3 8”
    Max. Square Tube Cut (0° x 0°)		4-3 4 x 4-3 4
    Max. Square Tube Cut (0° x 45°)		3-1 2 x 3-1 2
    Max. Round Tube Cut (0° x 0°)		5-1 8 Ø
    Max. Round Tube Cut (0° x 45°)		4-1 8 Ø
    Mild Steel Plate – Max. Thickness		1 4
    Mild Steel Box Section – Max. Wall Thickness		1 8
    Minimum Cut Off Piece Length		5 16
    Blade Dia.:		14 in.
    No. of Teeth:		36
    Bore:		1 in.
    Kerf:		.086 in
    Motor (120V 60Hz):		15A
    Speed No Load:		1450rpm
    Max. Miter:		45°
    Packaging Dimensions:		18-1 2 x 22-5 8 x 14-3 4 Inch
    Product Dimensions:		16-1 8 x 20-7 8 x 12-1 4 Inch
    Product Weight:		47.4 lbs
    Packaged Weight:		52.4 lbs
