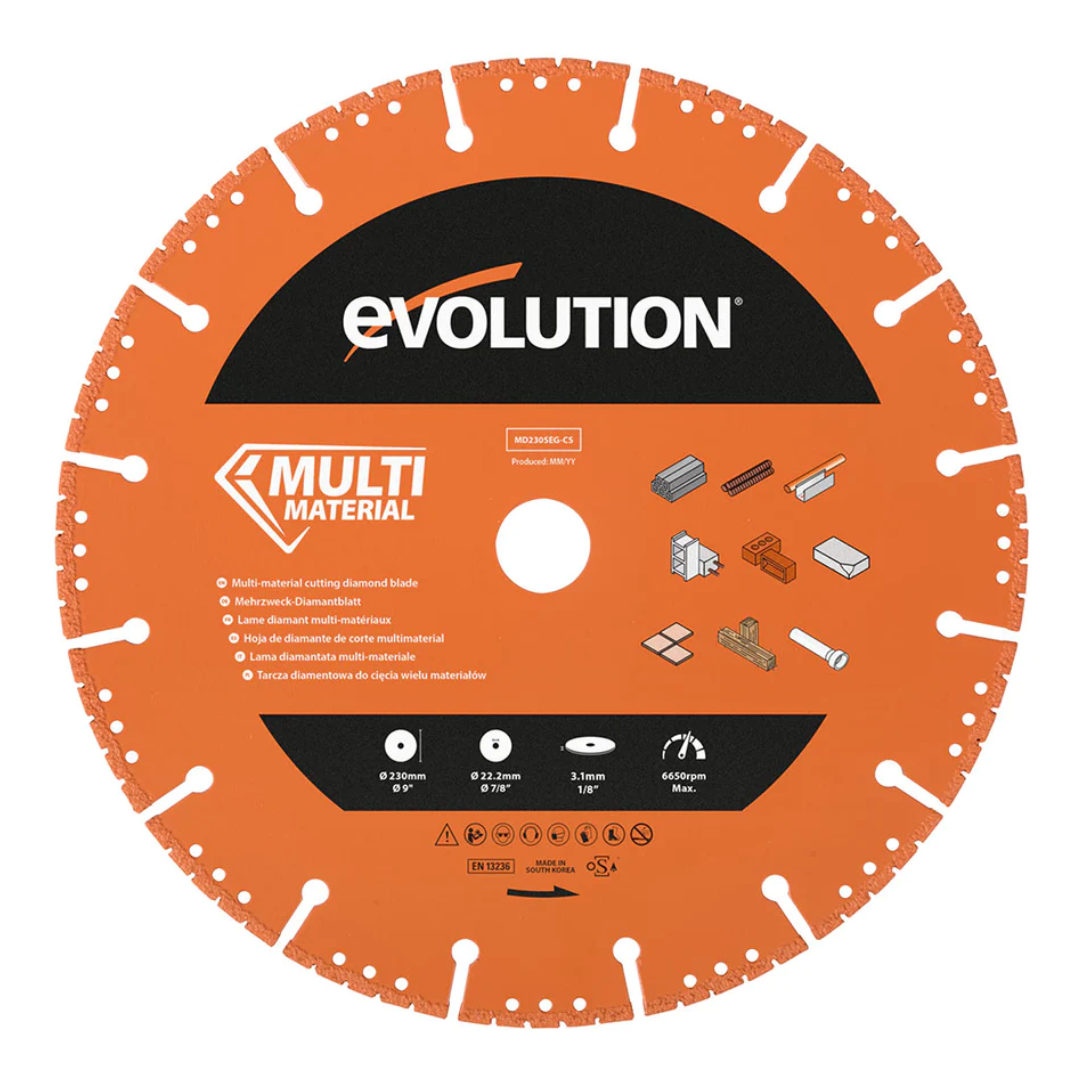

Evolution MD230SEG-CS 9 In. Segmented Edge Multi-Purpose, Metal Cutting Diamond Blade

Evolution MD230SEG-CS is a multi-material cutting diamond edge blade offers versatile cutting and superior blade life.

Features:

• Compatible with the R230DCT Concrete Cutting Saw
• Multi-material Cutting: One saw and One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics and more
• Up to 30x longer blade life than abrasive discs when cutting metal. Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel
• Steel blade body with diamond cutting edge maintains its full diameter
• Steel body won’t shatter. Less dust, less sparks & less odour vs abrasive discs, make this a safer cutting solution.
• Cooling holes close to the edge expel heat to maintain optimum cutting performance.
• Heavily concentrated diamonds give a coarser cutting edge compared to standard diamond blades.
• Superior quality diamonds for longer blade life.
• Segmented rim design with sub-segmented cutting edge improves efficiency & removes debris from the cut.
• Thick body plate strengthens the blade for stability and accuracy.
• Manufacturer Part Number: MD230SEG-CS

• Specifications:

  Dia. Ø:		9 in.
  Max. Speed:		6650 RPM
  Bore Arbor Ø:		7 8 in.
  Rim:		Segmented
  Base Thickness:		0.071 in.
  Segment Tooth Thickness:		0.122 in.
  Segment Tooth Height:		0.118 in.
  Segment Tooth Quantity:		16
  Sub-Segment Tooth Quantity:		80
