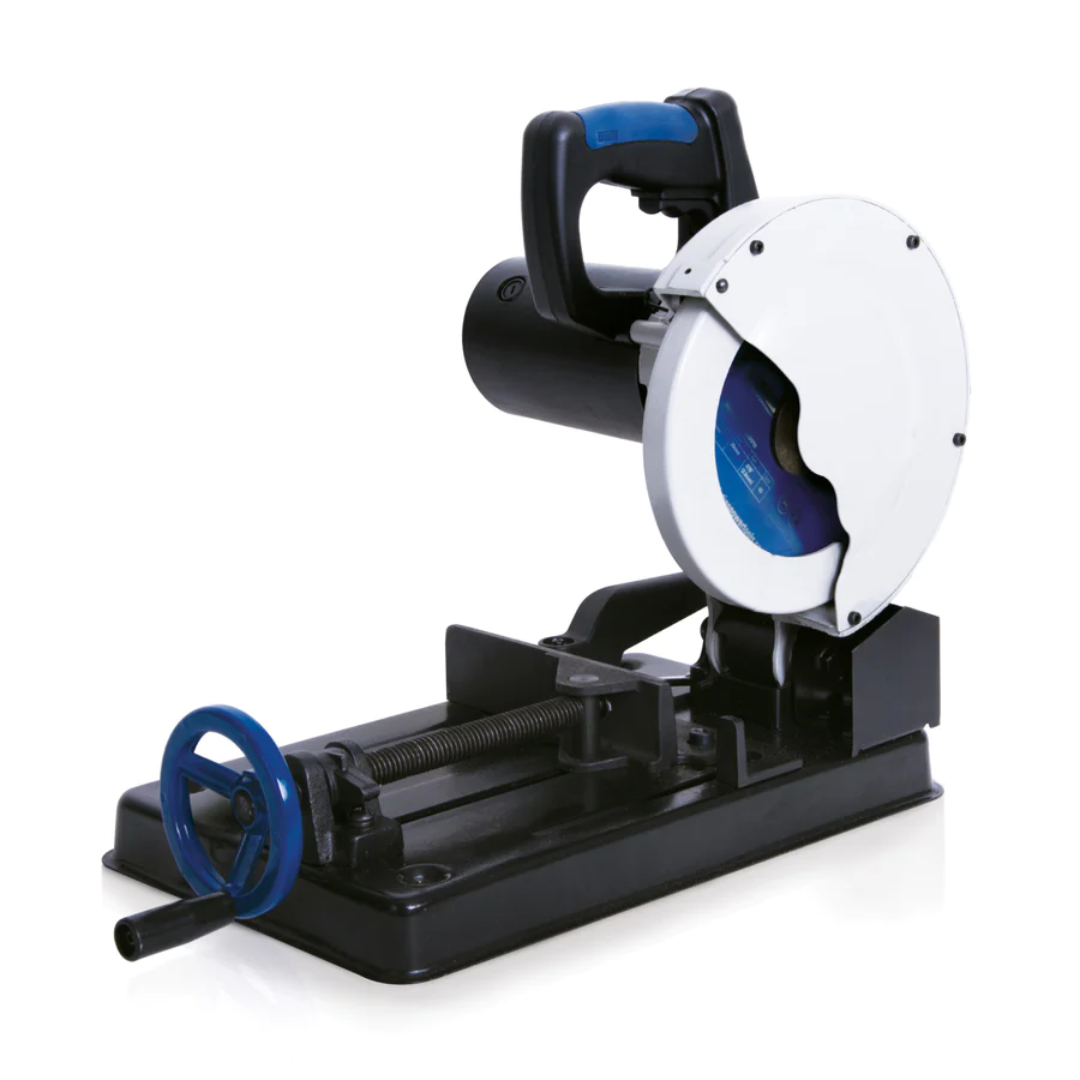

Evolution EVOSAW185HD: 7-1 4 In. Metal Cutting Chop Saw

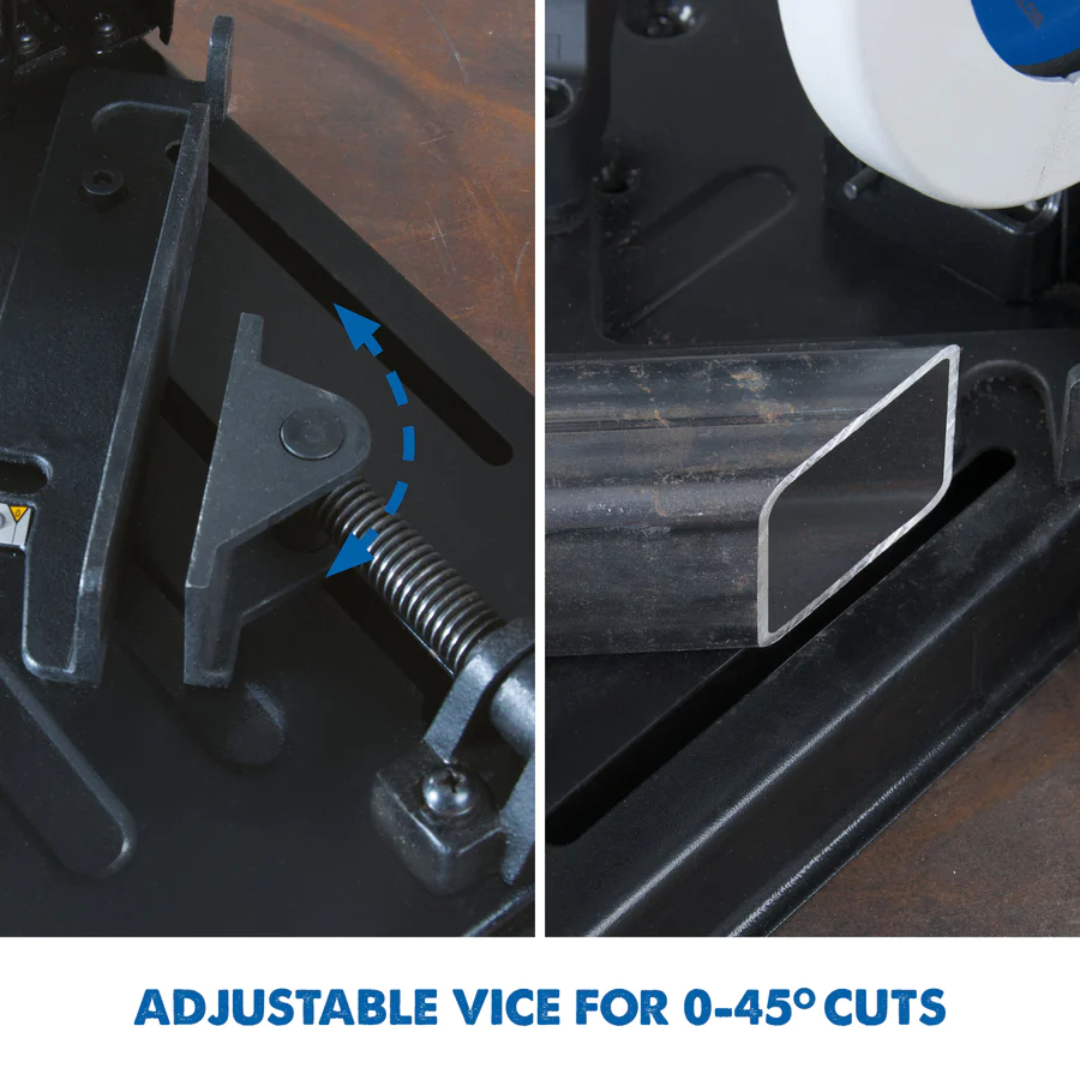

Evolution EVOSAW185HD: 7-1 4 In. Metal Cutting Chop Saw easily cuts mild steel without heat or burrs and virtually no sparks. The quick-release adjustable vise allows for fast and accurate angle cuts from 0-45˚. Ideal for cutting steel plate, square tube, angle iron, pipe, rebar, copper pipe, conduit, and steel studs.

Features:

• No Heat, No Burrs & Virtually No Sparks
• No Coolant Required
• Pressed Steel Base
• 10A Powerful High Torque Motor
• 2 In. x 4 In. Cross Cut Capacity
• 2 In. x 2 In. Square Tube Capacity
• 2 In. Ø Round Tube Capacity
• 3 Years Limited Warranty

• Includes:

  • 40T Mild Steel TCT Blade
  • Hex Key 6mm (Vise Adjustment)
  • Hex Key 5mm (Blade Change)
  • Hex Key 3mm (Upper Blade Guard)
  • Dust Extraction Port 36mm
  • Speed Handle
  • Spare Motor Brushes (1 set)

  • Specifications:

    Motor (120V 60Hz):		10 A
    Speed No Load:		4200 rpm
    Max. Bevel (Left):		45°
    Cable Length:		6-9 16 ft
    Blade Dia.:		7-1 4 In.
    No. of Teeth:		40
    Arbor:		20mm
    Kerf:		.078 In.
    Mild Steel Plate (Max Thickness):		1 4 In.
    Mild Steel Box Section (Max Wall Thickness):		1 8 In.
    Square Tube at 90° (Mild Steel):		2 In.
    Square Tube at 45° (Mild Steel):		2 In.

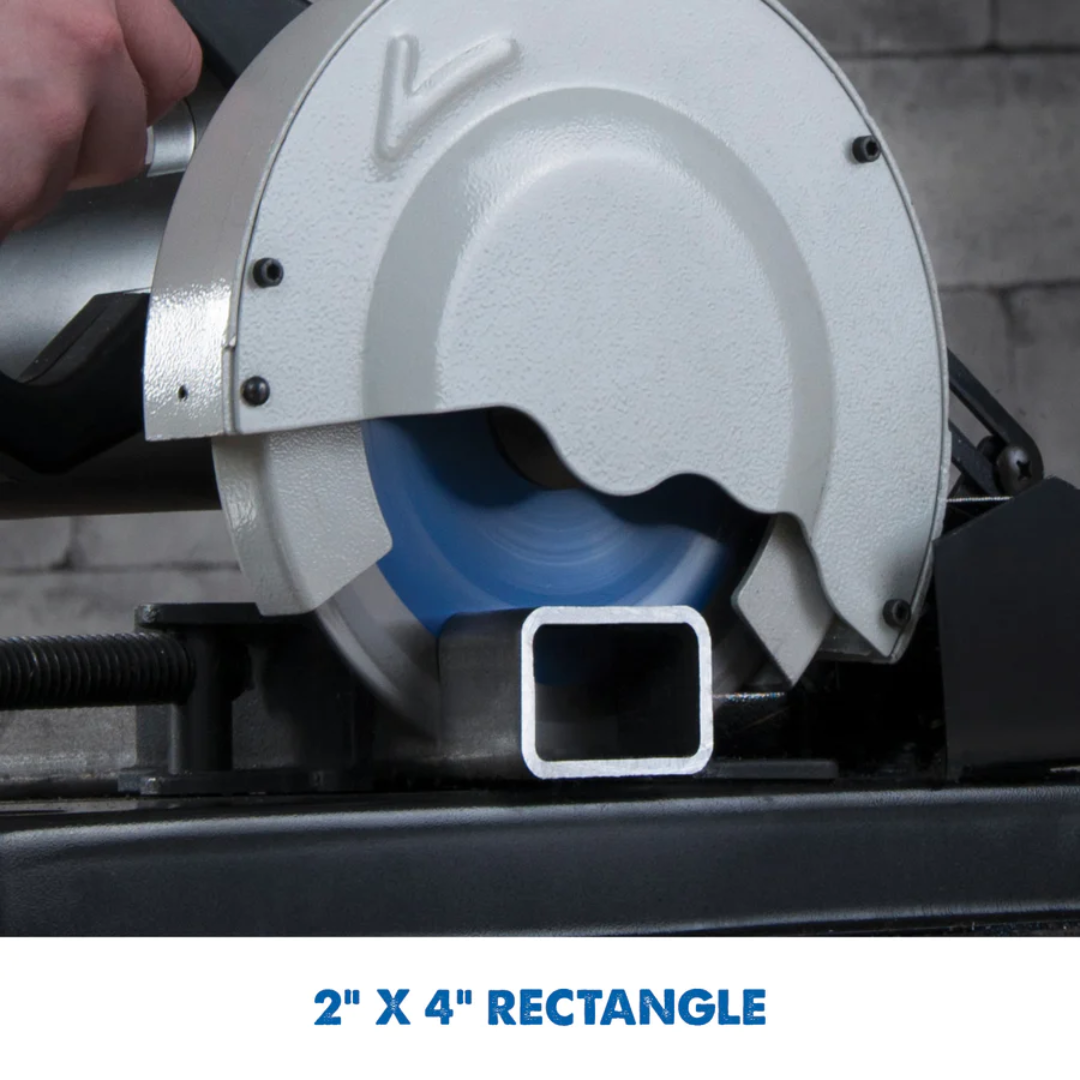

    Rectangle Tube at 90° (Mild Steel):		2 In. x 4 In.
    Rectangle Tube at 45° (Mild Steel):		2 In. x 2 In.

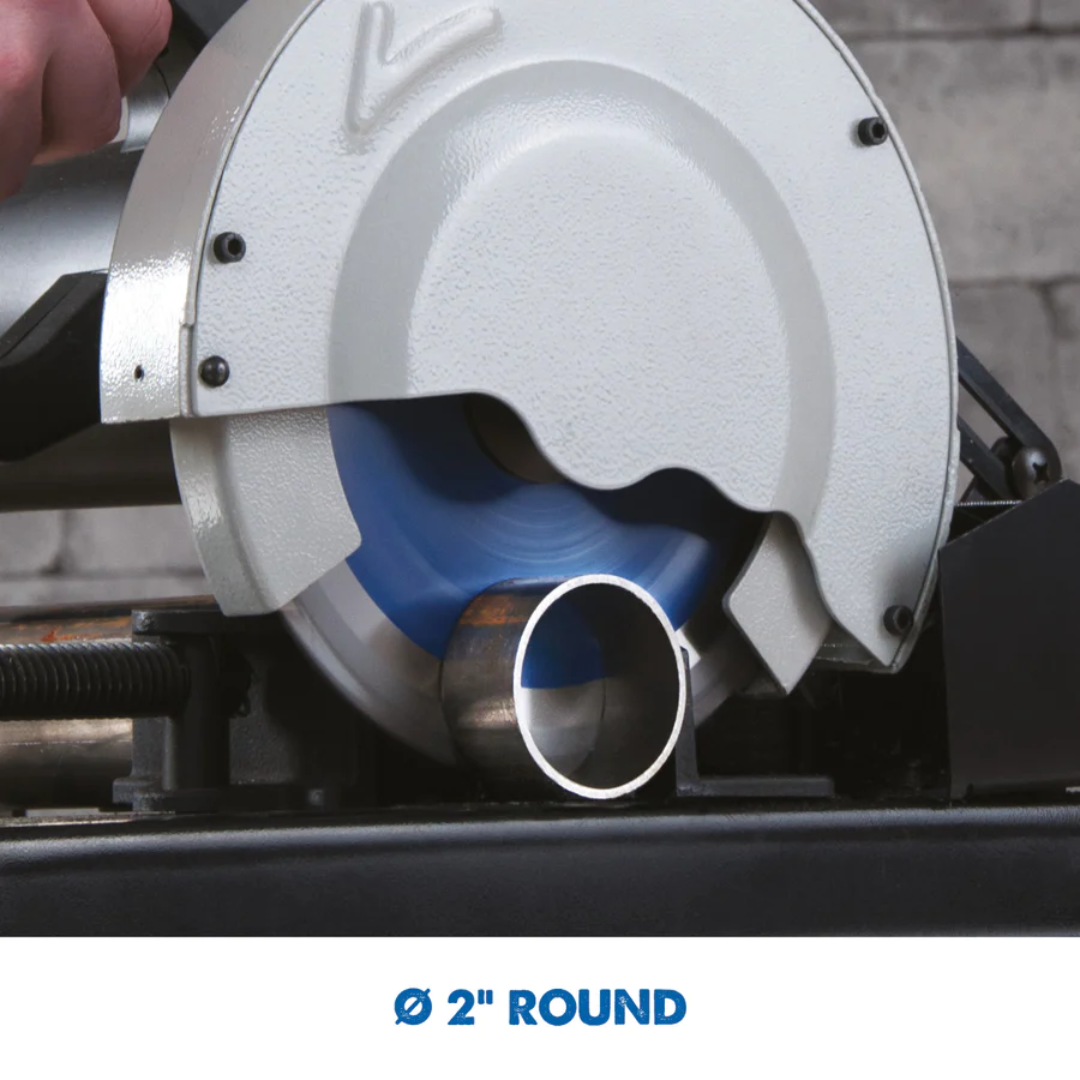

    Round Tube at 90° (Mild Steel):		ø 2 In.
    Round Tube at 45° (Mild Steel):		ø 2 In.
    Product Dimensions:		20-1 8 In. x 13 In. x 13 In.
    Packaging Dimensions:		20-5⁄64 In. x 12-19⁄32 In. x 12-13⁄64 In.
    Product Weight:		23 lbs
