Edge Clear MIG Nozzle – 21 Series

The Clear Choice in MIG Torch Nozzles

Edge Welding Cups has released the ultimate MIG nozzle. Made from clear quartz, these nozzles offer an uncompromised view of your welding wire in action.

The quartz material means these nozzles can withstand the high heat of GMAW welding, and most weld spatter will not stick to Quartz making it user friendly and unnecessary to use anti spatter welding gel.



• 21 Series Style Nozzle (Reference Tweco Lincoln 21 Series)

• Fits 35-50, 51, 51-23 style diffusers (M21-A Adapter and M21-O O-Rings Required)
• Diffusers, adapter, and o-rings sold separately
• For use with thread-on nozzle assemblies with Tweco® No.1 series MIG welding gun in light to medium duty welding application up to 180 Amp.
• Also fits Lincoln® Magnum light-medium duty MIG guns; replacement for gas diffuser P N: KP51.
• Works with 11 series contact tip.

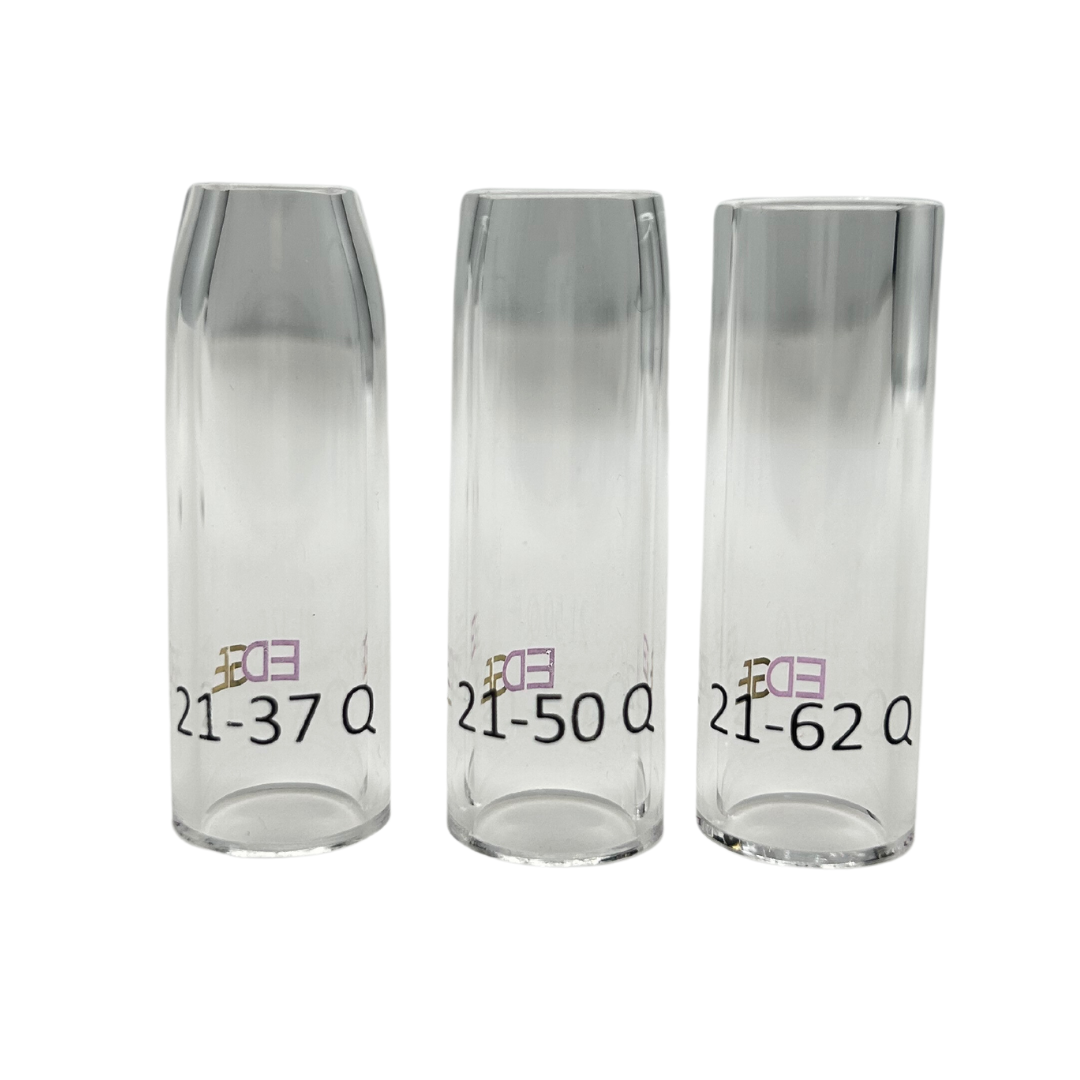

• Available Options and Part Numbers

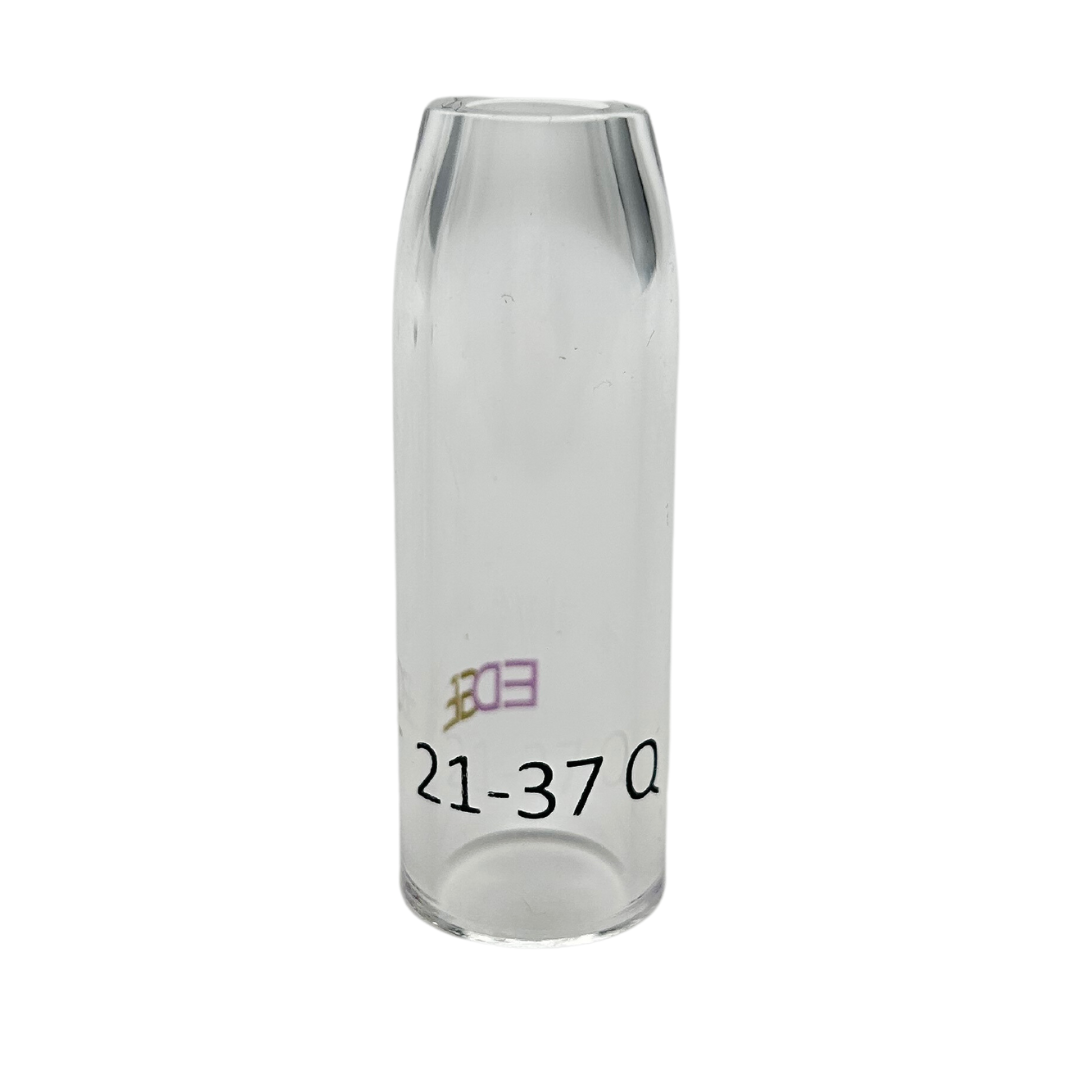

  • M21-37Q – 3 8″ Nozzle Opening

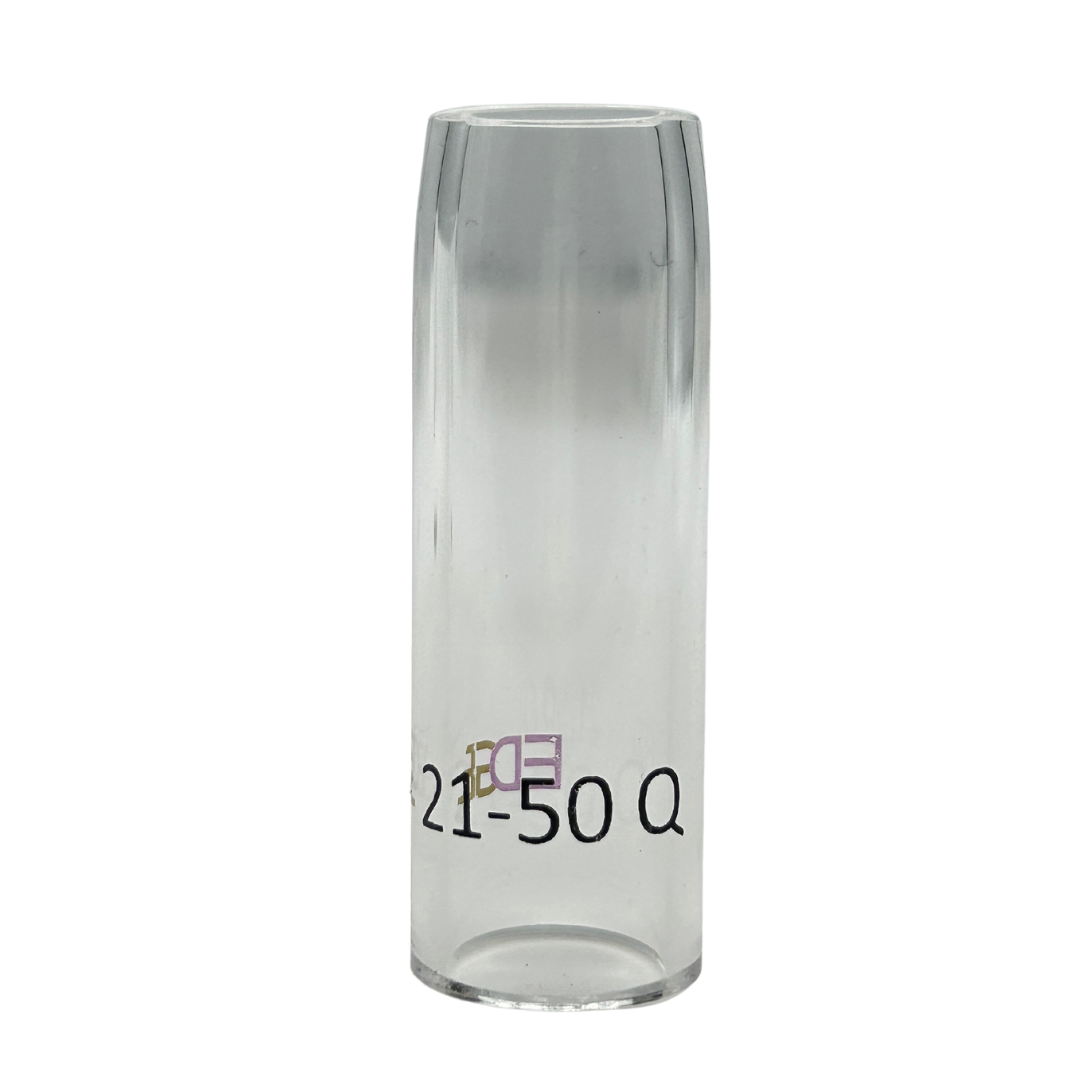

  • M21-50Q – 1 2″ Nozzle Opening

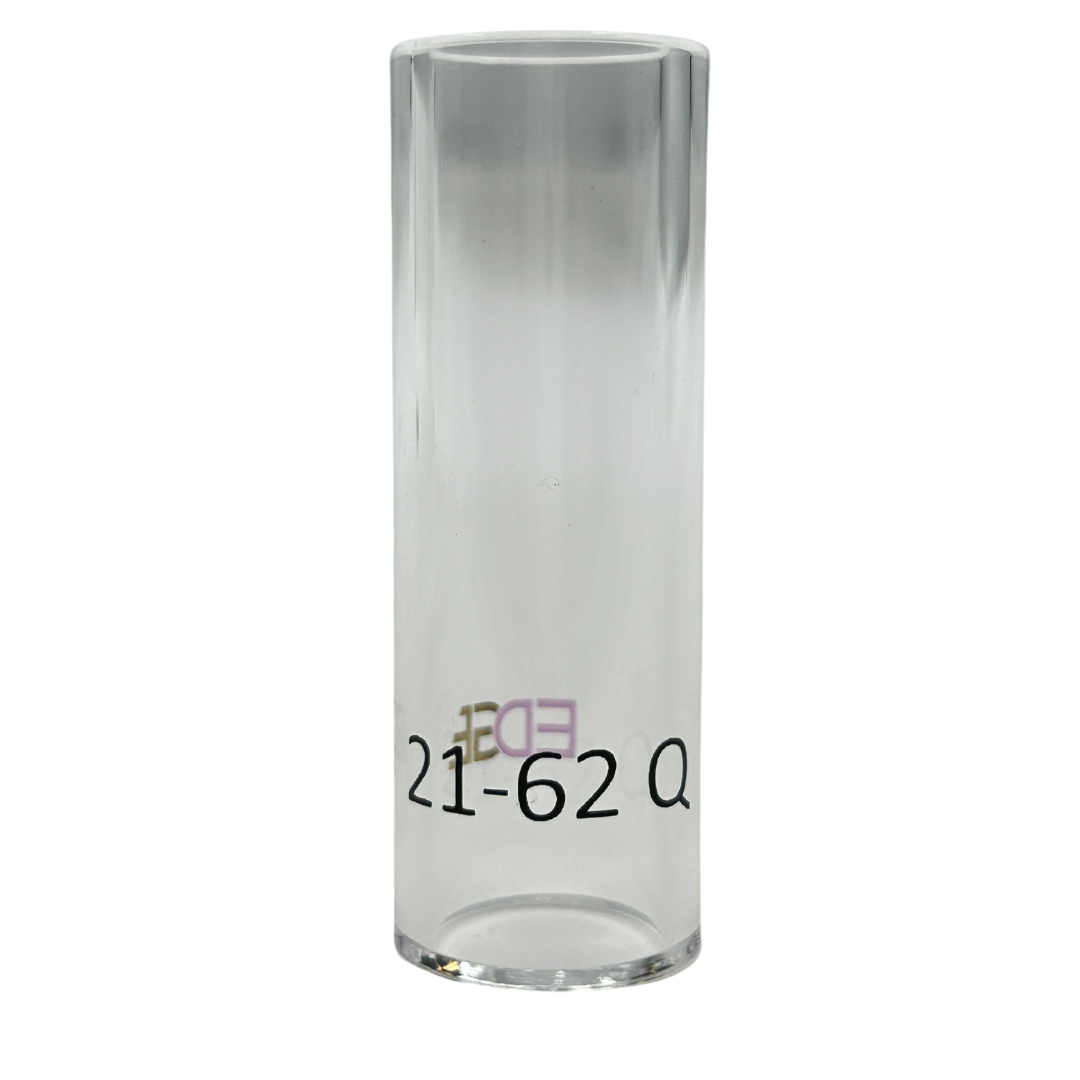

  • M21-62Q – 5 8″ Nozzle Opening
