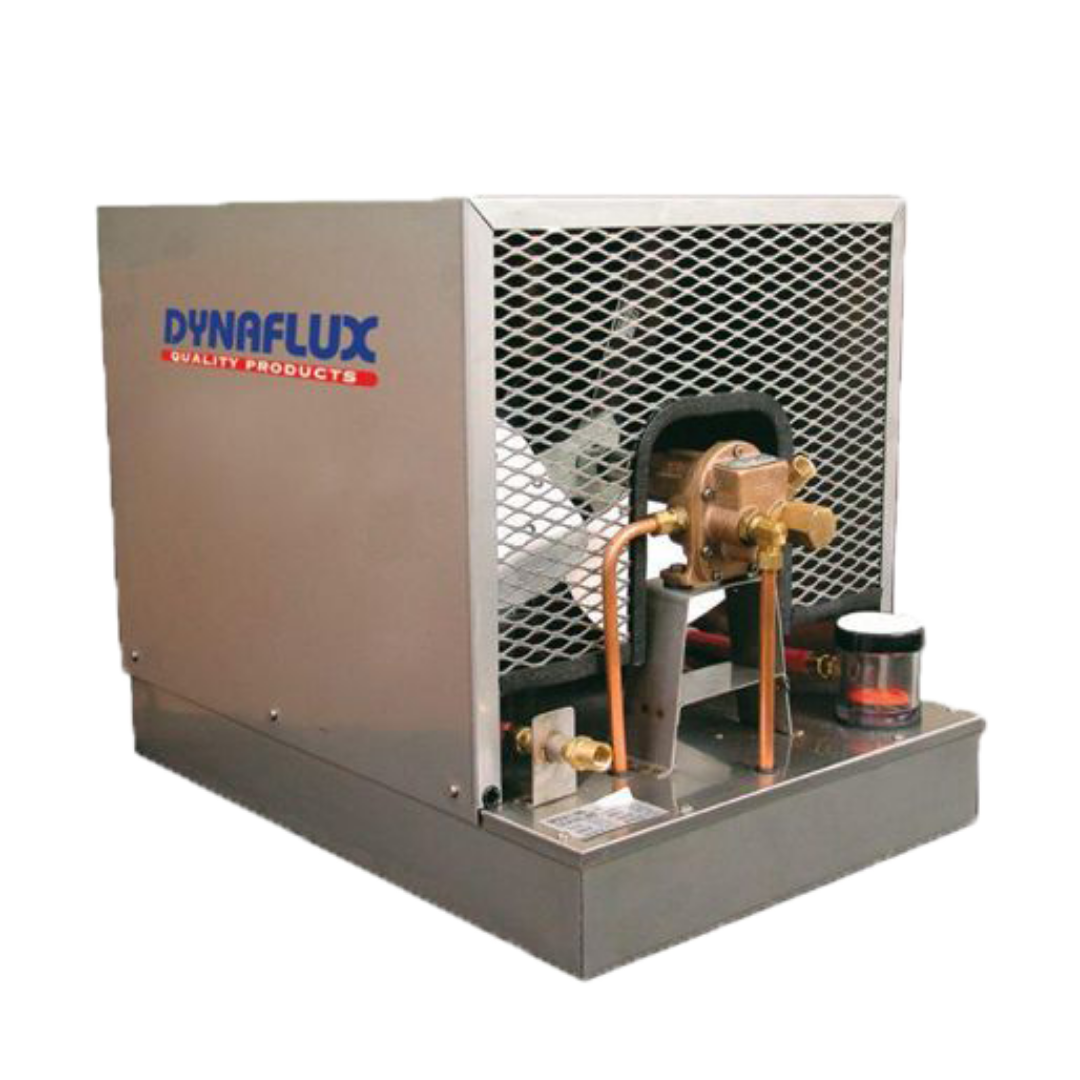

Dynaflux R1100V Torch Cooling System



Please allow a three week lead time on this item

3 Gallon Stainless Steel Water-Cooler, With ProCon Vane Style Pump.  Designed for MIG guns and TIG torches up to 750 amps, Plasma Welders Cutters up to 200 amps, Resistance Welders up to 75 KVA and Induction Welders up to 5 KW.



Rated at 15,000 BTU, this Heavy-Duty Water Cooler is constructed of stainless steel and engineered for robust performance. The reservoir holds 3 gallons and the water level is visible through the tank.



Stainless steel construction eliminates coolant contamination due to electrolyte or chemical reactions



Plumbed with copper tubing and reinforced hoses



Extended life pump features direct drive power system for reduced maintenance and vibration



Water level float gauge and filler cap combined in a single unit, multi-purpose sight glass, enabling operator to observe return water.

Specifications:

• Factory set at 50 psi adjustable to 80 psi
• 3 gallon reservoir
• 115 VAC 1 ph-50 60 Hz
• 5.6 amp
• 15,000 BTU
• MIG Guns:  Up To 750 Amps
• TIG Torches:  Up To 750 Amps
• Plasma arc Welders Cutters:  Up To 200 Amps
• Dimensions: 23″ L x 11″ W x 14.75″ H
• 1 4″ FPT(water in out) with 5 8″LH Standard Inert Gas Fitting
• Net weight: 42 lbs 19 kg
