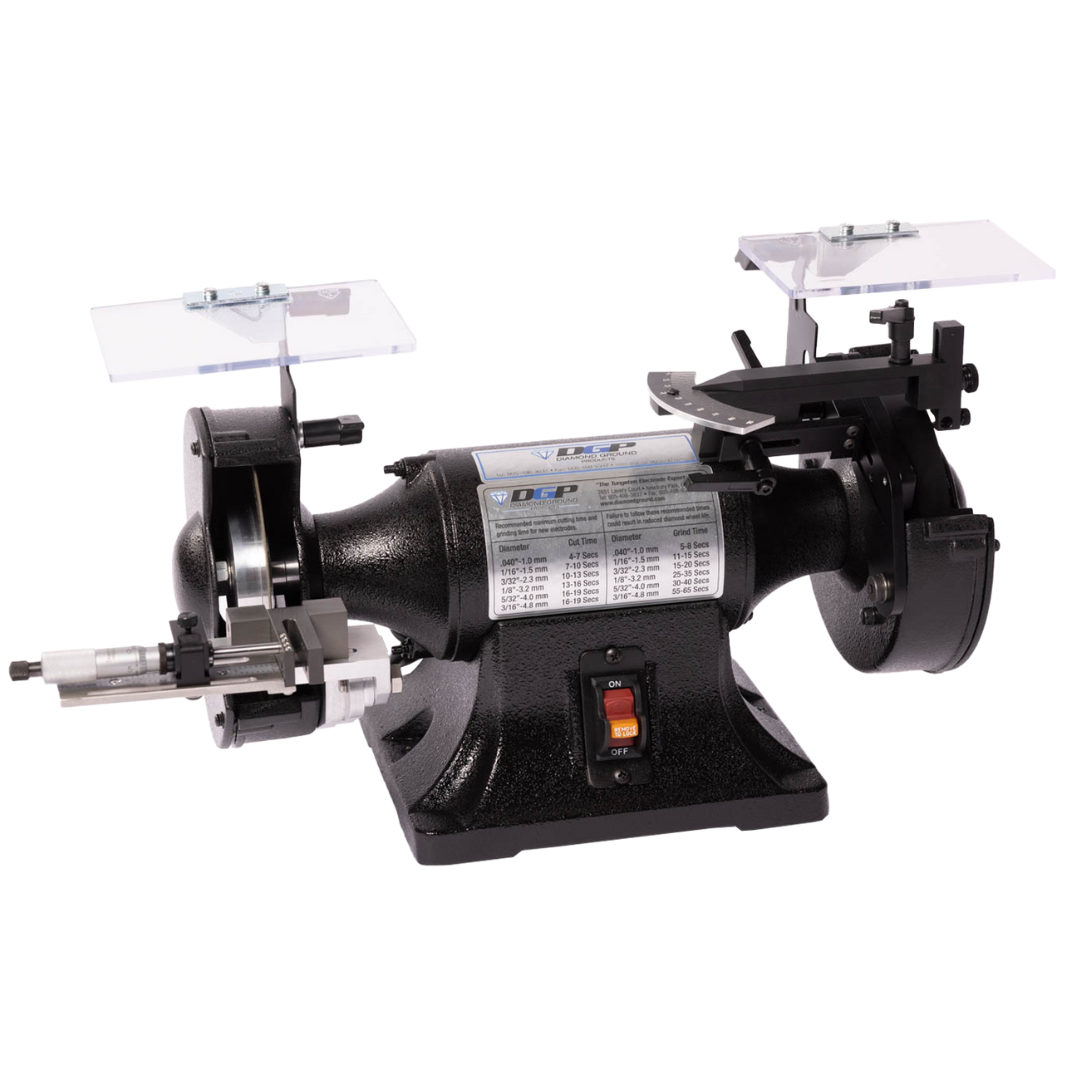

DGP-R3 Bench Mounted Tungsten Grinder from Diamon Ground Products

DGP-R3

Bench mounted tungsten grinder designed for orbital users. Equipped with precision cut-off assembly and a micrometer indexer that includes a diamond-grinding wheel, cutting wheel with a secondary safety cover for the cut-off assembly, four electrode guide collet sizes (.040-3 16” available) and a precision angle scale.

Standard Setup, includes .040”, 1 16”, 3 32”, 1 8” Collets

• Length: 24″ (609.6mm)
• Width: 17″ (431.8mm)
• Height: 20″ (508mm)
• Weight: 37 lbs (16.78 kg)
• Voltage: 115 VAC 60Hz, 220VAC 50Hz
• Power Consumption: 5.0 Amps
• Standard: 300 Grit
• Vacuum system in insulated cabinet for dust collection
• Laser cut tip flat gauge for flat-size measurement
• Short collets available for grinding short electrodes
• Flexible spotlight
• Pre-wired and integrated 220v step down transformer

• CSA Certification is available at an extra cost – 3 – 4 week lead time required.
