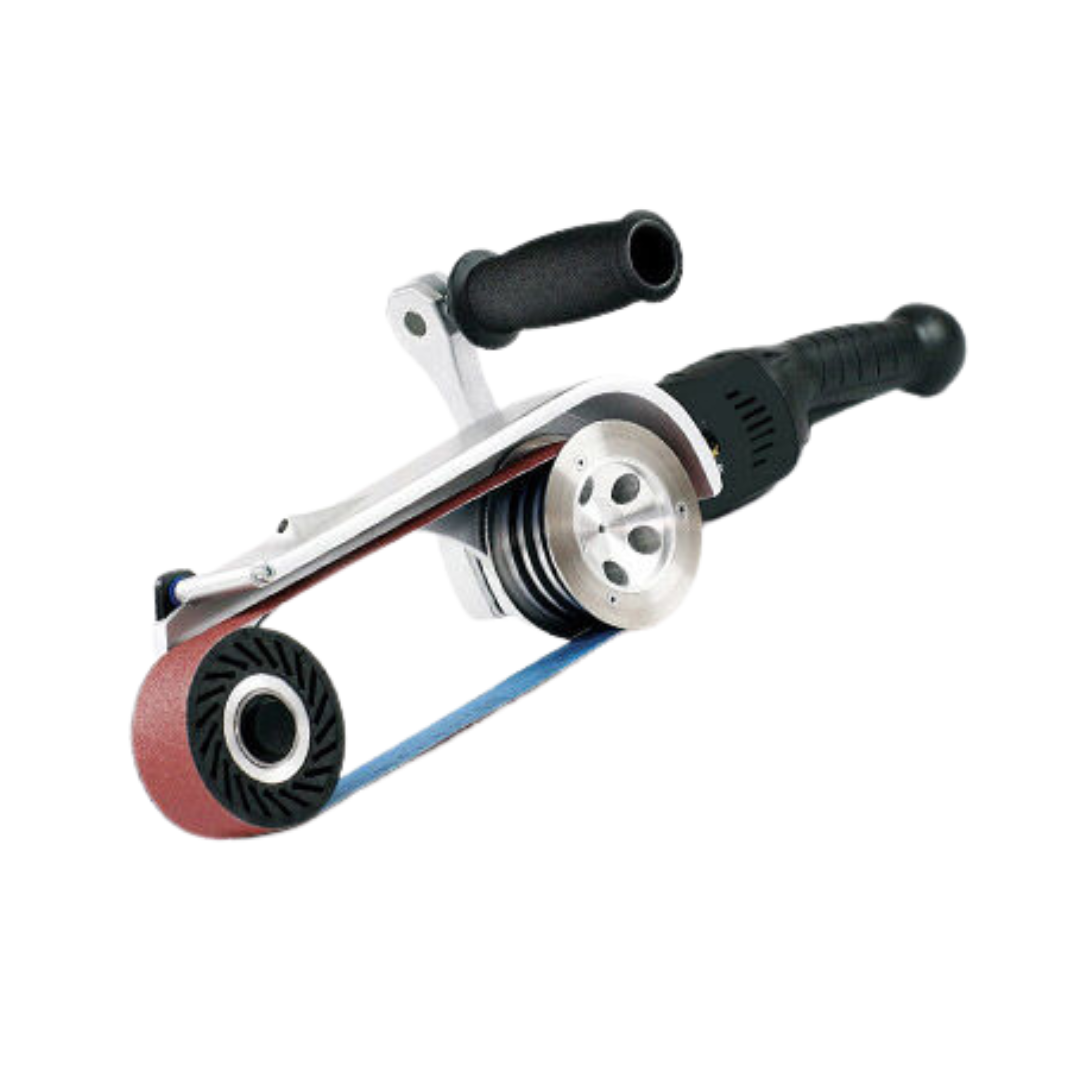

CS Unitec PIPE-MAX Electric Pipe Belt Grinder

The Electric PIPE-MAX is a combination grinder and pipe belt sander.

The front hard rubber contact roller drives the abrasive belt to grind flat surfaces. It removes weld seams in a straight line, without leaving edges or a wavy finish.

For sanding pipes or handrails, the flexible sanding belt follows every contour to grind and polish up to a high-gloss finish. The belt wraps around the pipe and requires only a few steps to polish the entire circumference.

You can follow the external contour of the pipe diameter with light, uniform contact pressure. The new contour concept with the elastic return roller allows the grinding and polishing belts to conform around the external diameter of the pipes without great force.

The soft grinding roller made of PUR material also allows comfortable longitudinal grinding of flat surfaces, for example to remove spot welds or eliminate deep scratches.

Features

• Ideal for stainless steel, aluminum and high-quality metals.
• For sanding pipes or handrails from small to large diameter, up to 14
• Grinds weld seams on flat surfaces – leaves no edges
• Powerful 15 Amp motor and variable-speed control from 950 to 3500 RPM
• Quick and easy changing of sanding belts

• PIPE-MAX Electric Specifications

  Part No.		38502A
  Belt Size		30.7 x 1.6 (Exact size: 780mm x 40mm)
  Belt Speed		33 – 100 ft. sec.
  Power		15 Amp (1710 Watts) 110V (Also avail: 220 V)
  Pipe ø Max.		14
  Weight		11.25 lbs.
