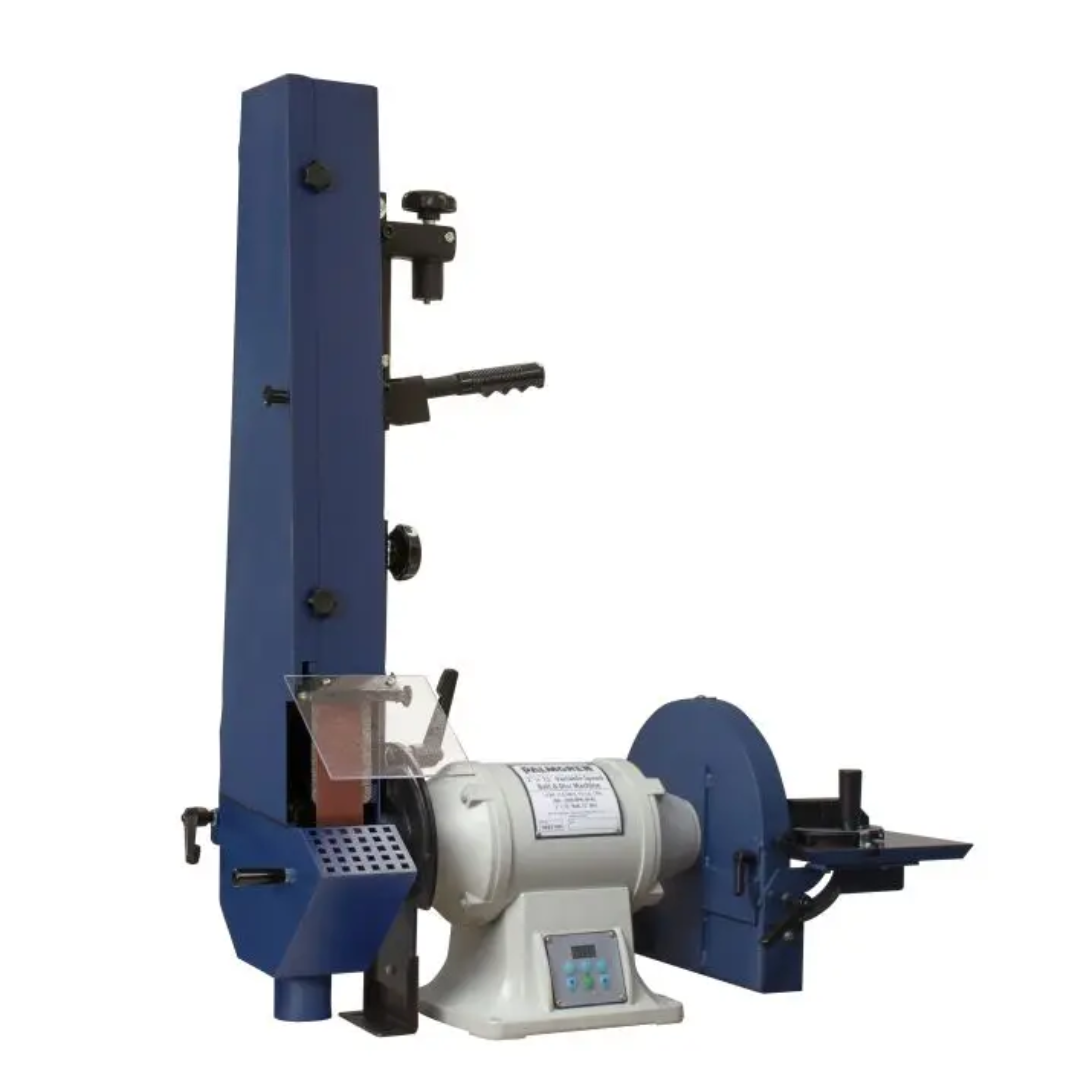

Palmgren Combination 2 x 72 Belt & 12 Disc Variable Speed Finishing Machine



Palmgren Combination 2 x 72 Belt & 12 Disc Variable Speed Finishing Machine provides unique flexibility and functionality for variety of projects. Flat sand with the belt and use the disc to fine tune other objects. You get the convenience of having two tools built into one. The grinding belts can be changed, tool free, in seconds with our single handle quick release system. Adhesive discs can be quickly swapped out. For optimum use, the belt arm can tilt from 0-90° to quickly change between grinding applications. Plus, you can control the angle of your disc sanding with the provided miter gauge. The variable speed drive system allows for between 2,355-6,280 SFPM for the belt and 900 to 2400 RPM for the disc. Dial in a speed to fit your specific application.

Features:

• Full 1.5 horsepower variable speed motor
• Full guarding with spark shields for OSHA safety compliance
• Easily removable platen provides quick change overs to slack back grinding
• Simple easy belt tensioning and tracking
• 10” lower drive wheels for maximum belt traction
• Disc sander miter gauge
• Disc sander table tilts up to 45 degrees
• Lower wheel guards can easily swing away for contact wheel grinding and finishing
• Hardened steel platens with graphite pads for smooth belt operation and longer belt life
• Manufacturer Part No. 9681104

•  Specifications:



  Disc Speed RPM		900 – 2400
  Motor HP		1.5
  Voltage		115 230
  Wheel Speed (RPM)		900 – 2400
  Warranty		3 Year
  UPC		726896811048
  Country Of Origin		TW
  Brand		Palmgren
  Unit Of Measure		Each
  Product Height (In)		13
  Product Length (In)		29.5
  Product Weight (Lbs)		147
  Product Width (In)		19.5
  Belt Size		2 x 72
  Belt SFPM		2,355 – 6,280
  Abrasive Finishing Type		Belt and Disc Grinders
  Belt Width		2
  Disc Diameter		12
  Wheel Diameter		10
  AMPS		14 7
