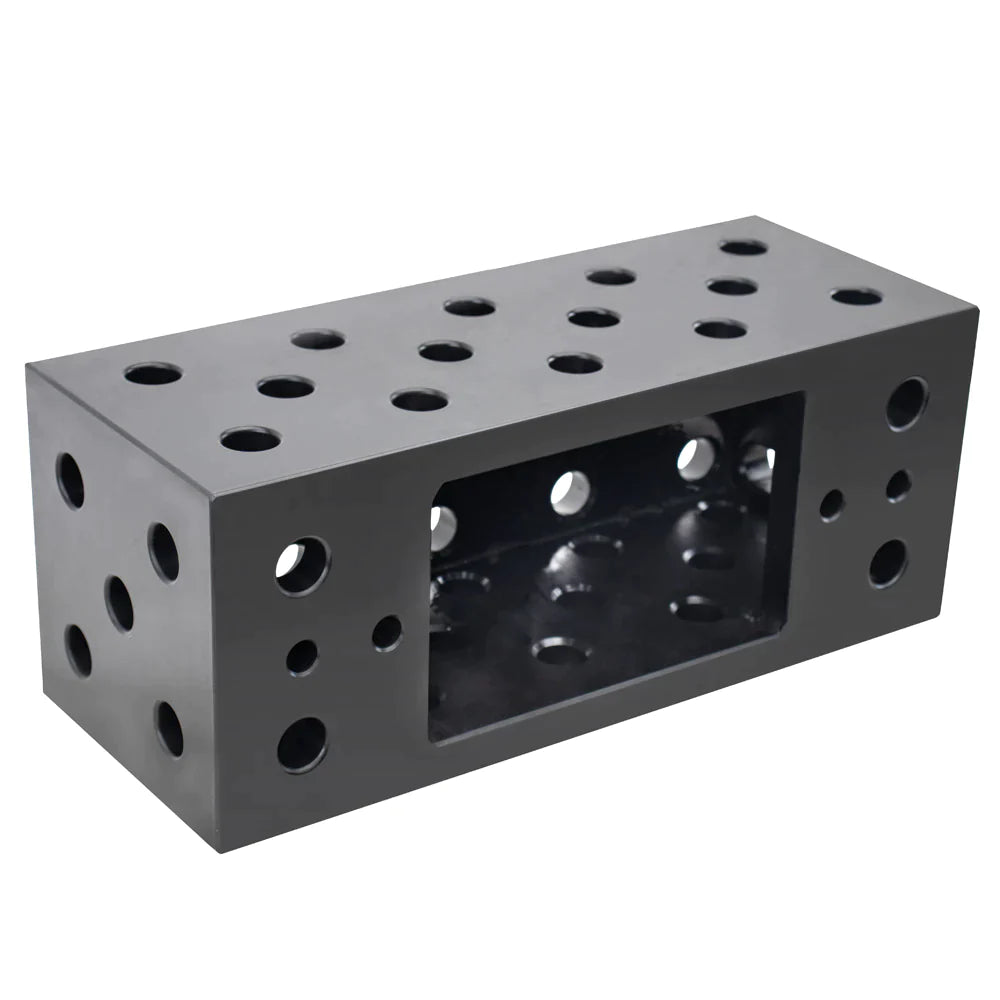

BuildPro Alpha 28 Riser Extension Blocks, for 28mm Holes

Non Stock Item – Please allow a 2 week lead time on this product

Extension Blocks are ideally suited as table extensions or for joining multiple tables together for long projects. Extension Blocks are hardened.

Only Extension Block T28-32202 has slots.

Extension Blocks 500 mm and longer in length have leg mounting holes, and all blocks over 500 mm in length should be supported by legs when used as a table extension.

SAFETY NOTE: Extension Blocks should only be joined to the table using connector bolts (Item T28-48250 or T28-48750). Do not use fast clamping bolts or other available bolts to join.

Available Options and Part Numbers



Part No.		Length (mm)		Width (mm)		Height (mm)		Weight (kg)
T28-32202		200		200		200		27.7
T28-32205		500		200		200		62
T28-32210		1,000		200		200		109.5
T28-32212		1,200		200		200		128
T28-32215		1,500		200		200		160

Size	200 x 200 x 200 mm – T28-32202, 500 x 200 x 200 mm – T28-32205, 1000 x 200 x 200 mm – T28-32210, 1200 x 200 x 200 mm – T28-32212, 1500 x 200 x 200 mm – T28-32215
