BuildPro Alpha 28 HD 4-Face Cast Iron Clamping Squares, for 28mm Holes



Heavy Duty Cast Squares are manufactured from high-quality ductile cast iron and specifically designed to handle heavy parts.

They serve equally well for stopping large parts, serving as table extensions, or building vertically. Cutouts are optimized for lighter weight and easier handling.

Squares come in two versions with machined faces on either the left or right side.

Available Options and Part Numbers



Part No.		Name		Length (mm)		Width (mm)		Height (mm)		Thickness (mm)		Weight (kg)

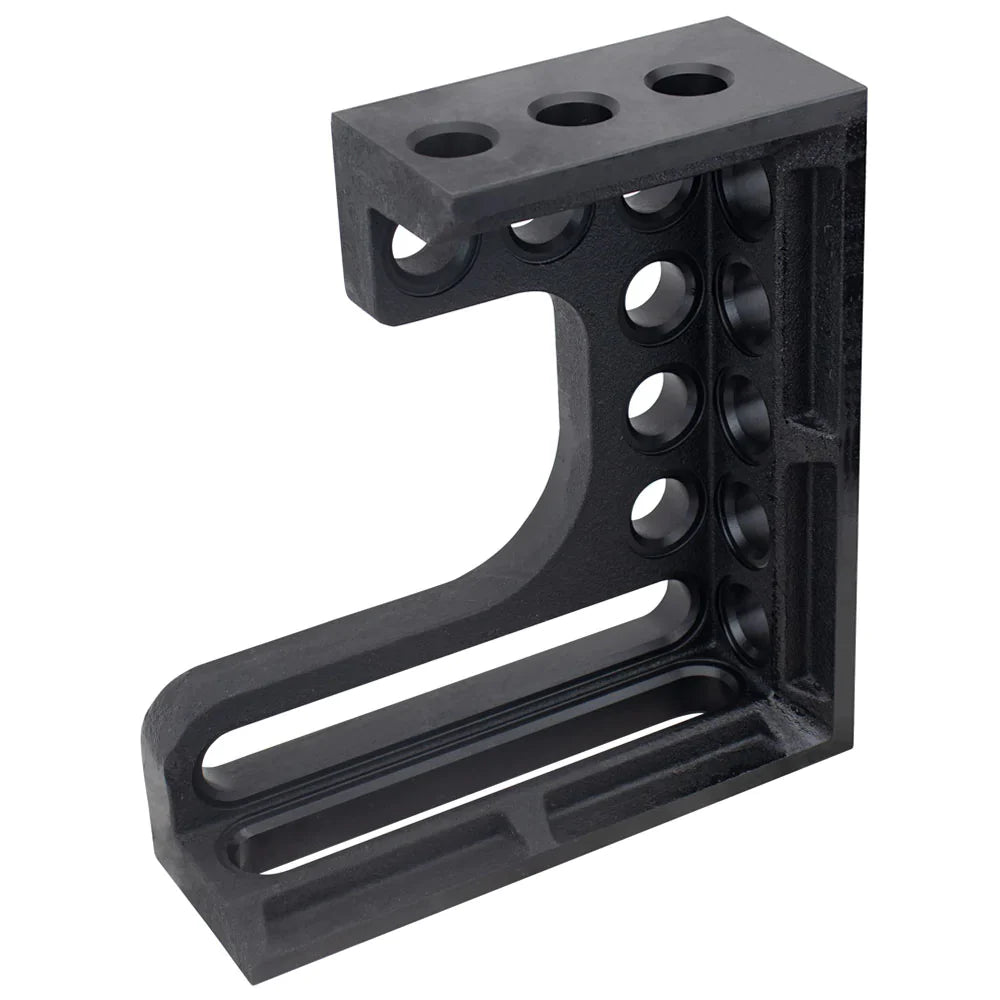

T28-13028L		HD Cast Square 300 – Left		280		95		300		approx. 27		12.9

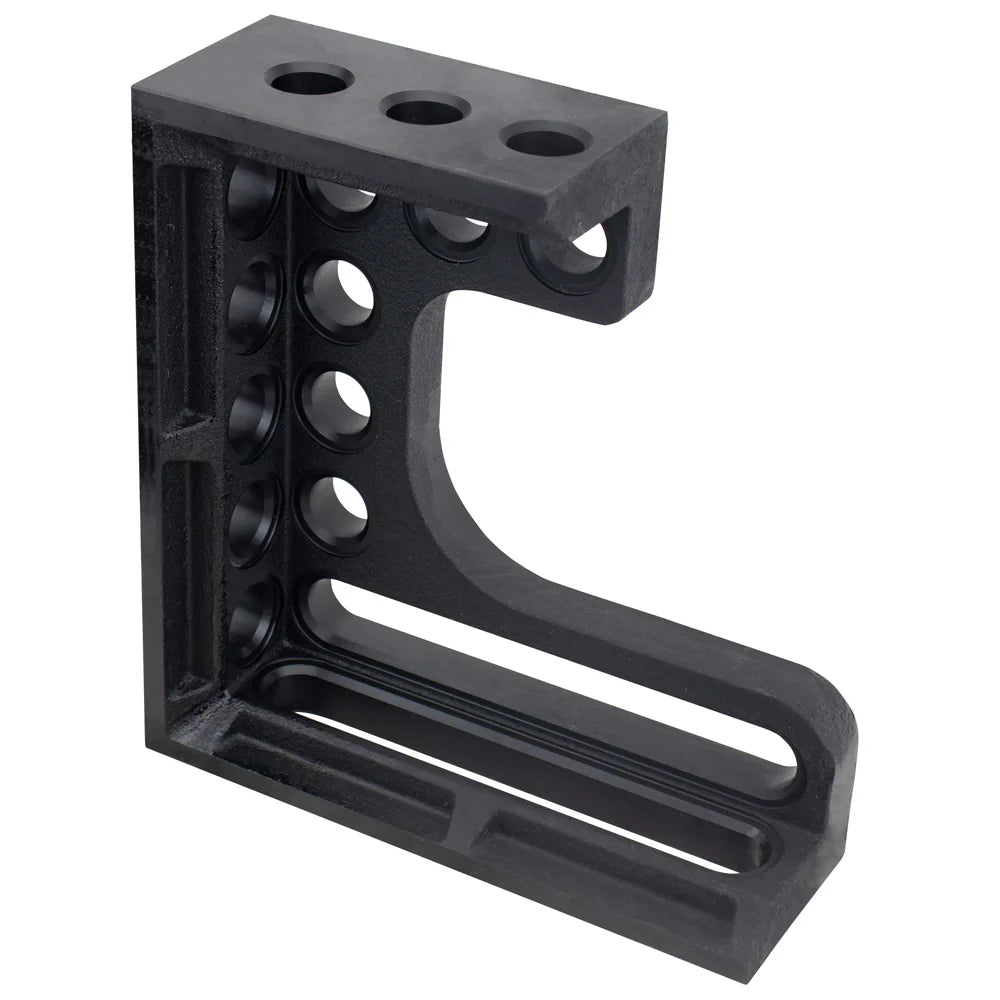

T28-13028R		HD Cast Square 300 – Right		280		95		300		approx. 27		12.9

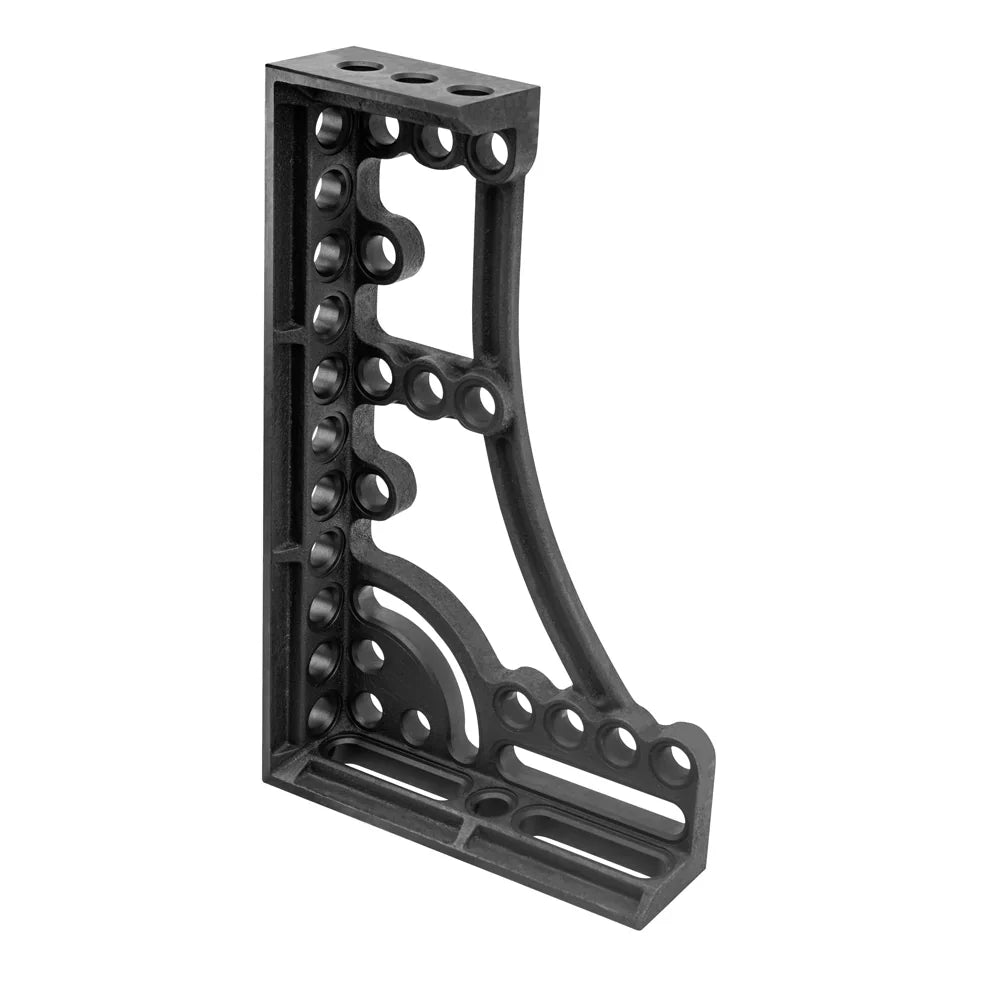

T28-16038L		HD Square 600 -L		375		95		600		approx. 27		22.5

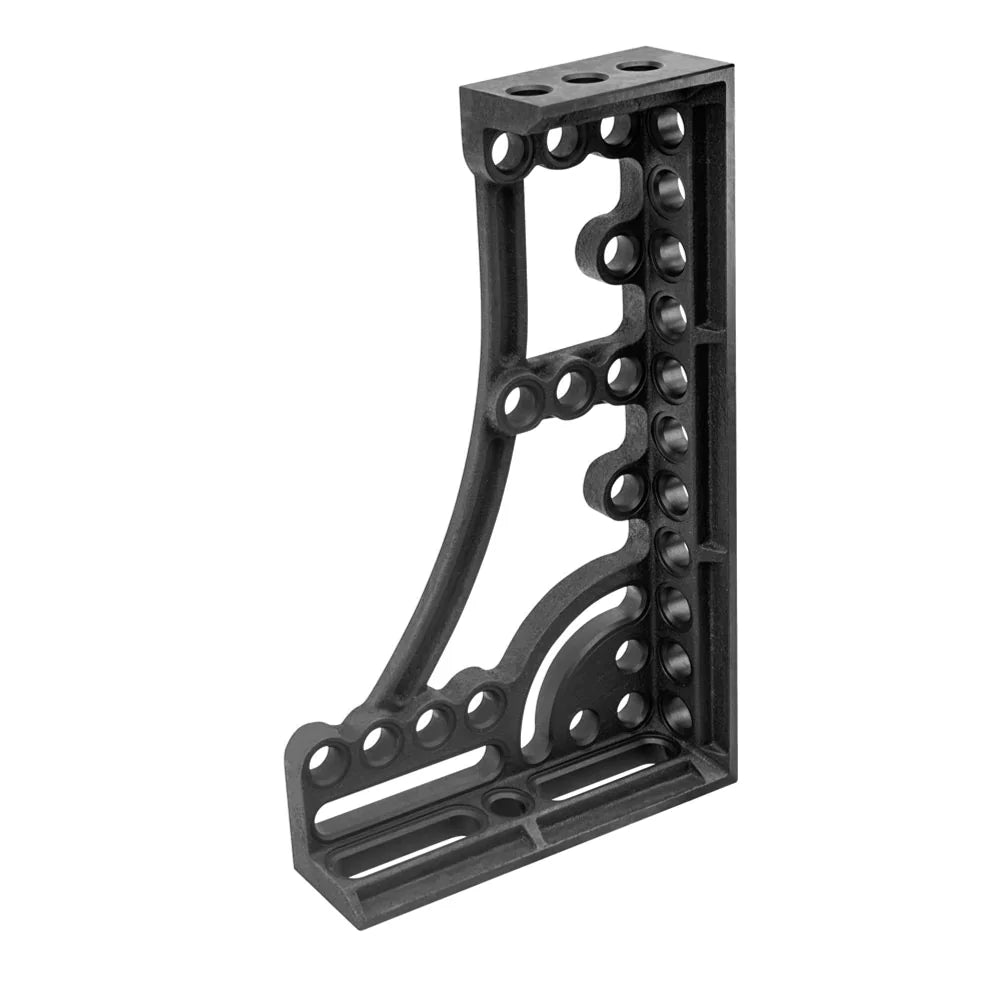

T28-16038R		HD Square 600 – R		375		95		600		approx. 27		22.5

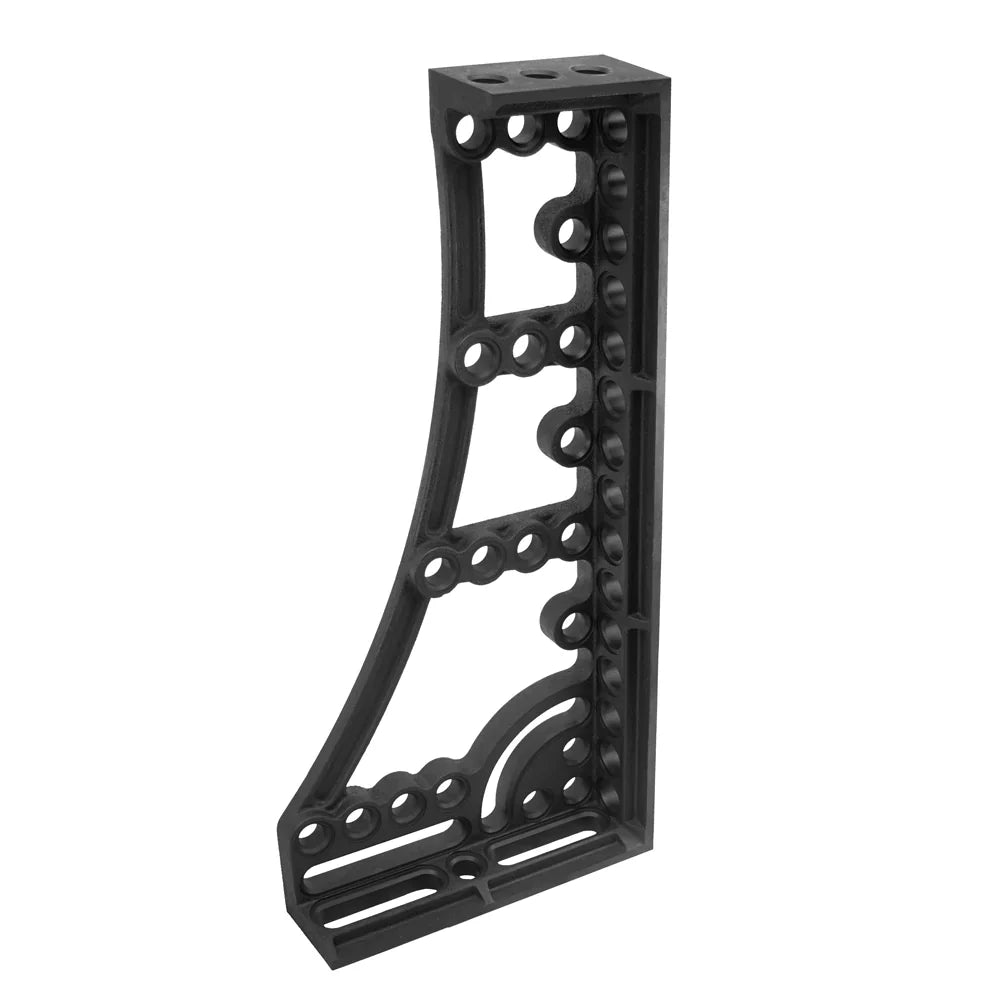

T28-18038L		HD Square 800 -L		375		95		800		approx. 27		27
T28-18038R		HD Square 800 – R		375		95		800		approx. 27		27

Model	T28-13028L – 300mm Height, Left, T28-13028R – 300mm Height, Right, T28-16038L – 600mm Height, Left, T28-16038R – 600mm Height, Right, T28-18038L – 800mm Height, Left, T28-18038R – 800mm Height, Right
