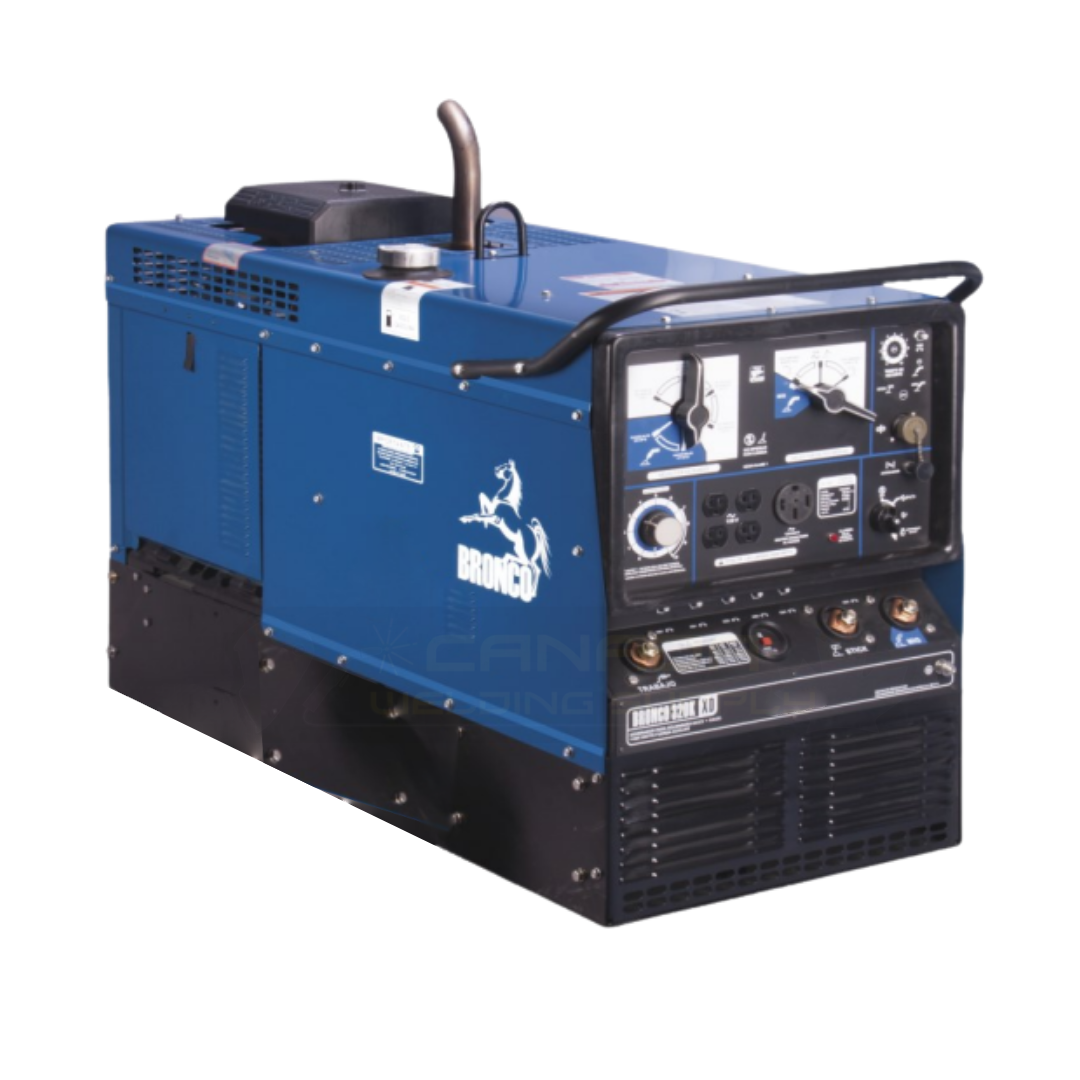

Comparc Bronco 320K XD Engine Driven Welder

Mobile Engine Driven Welder Generator

The Comparc Bronco 320 is a 320 A rated output welder generator capable of taking on tough jobs on the go. Powered by a Kohler Command Pro 27HP gas engine, the Bonco 320 K XD will keep you welding throughout the day.

• 320A @ 60% Duty Cycle across all modes
• 12V Electric Start
• 10.5 kW continuous output
• 40L Fuel Capacity

• Maximum Rated Output @ 60% Duty Cycle		320A @ 25 V, AC CC 320A @ 25 V, DC CC 320A @ 25 V, DC CV
  Rated Output @ 100% Duty Cycle		300 A @ 25 V, AC CC 300 A @ 25 V, DC CC 300 A @ 25 V, DC CV
  Output Range		50 – 320 A, AC CC 50 – 320 A, DC CC 17 – 28 V, DC CV
  Maximum OCV		80V AC 72V DC 41V CV
  Auxiliary Power Output		120 240V, 60Hz 11,000w Peak 10,000w Continuous
  Auxiliary Outlets		1x NEMA 14-50P 2x 120V, 15A 2x 120V, 20A
  Starter		12V Electric Start
  Dry Weight		743lb
  Shipping Weight		762lb
  Overall DImensions (H x W x L)		44.5 x 28 x 46

  Powered by Kohler Command Pro CH750



  • Four-cycle, gasoline, OHV, cast-iron cylinder liners, aluminum block
  • 747cc, 27 peak Horsepower
  • Large-capacity air, fuel and oil filters; high-performance spark plugs;
    two-barrel carburetor; hydraulic valve lifters
  • Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
  • High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
  • Extra-large sleeve bearings support heavy loads in commercial and industrial environments

  • Important:

    Oversized item, does not qualify for free shipping.  Contact us for shipping quote – [email protected]

    Running gear and handle are not included
