Brass Hose Crimp Ferrules



• Ferrules suitable for crimping barbed fittings in place
• Can be used in hose repair
• Material: Brass
• For use with Oxy-Acetylene or inert gas hoses

• Available Options and Specifications

  Part Number		Inside Diameter		Length

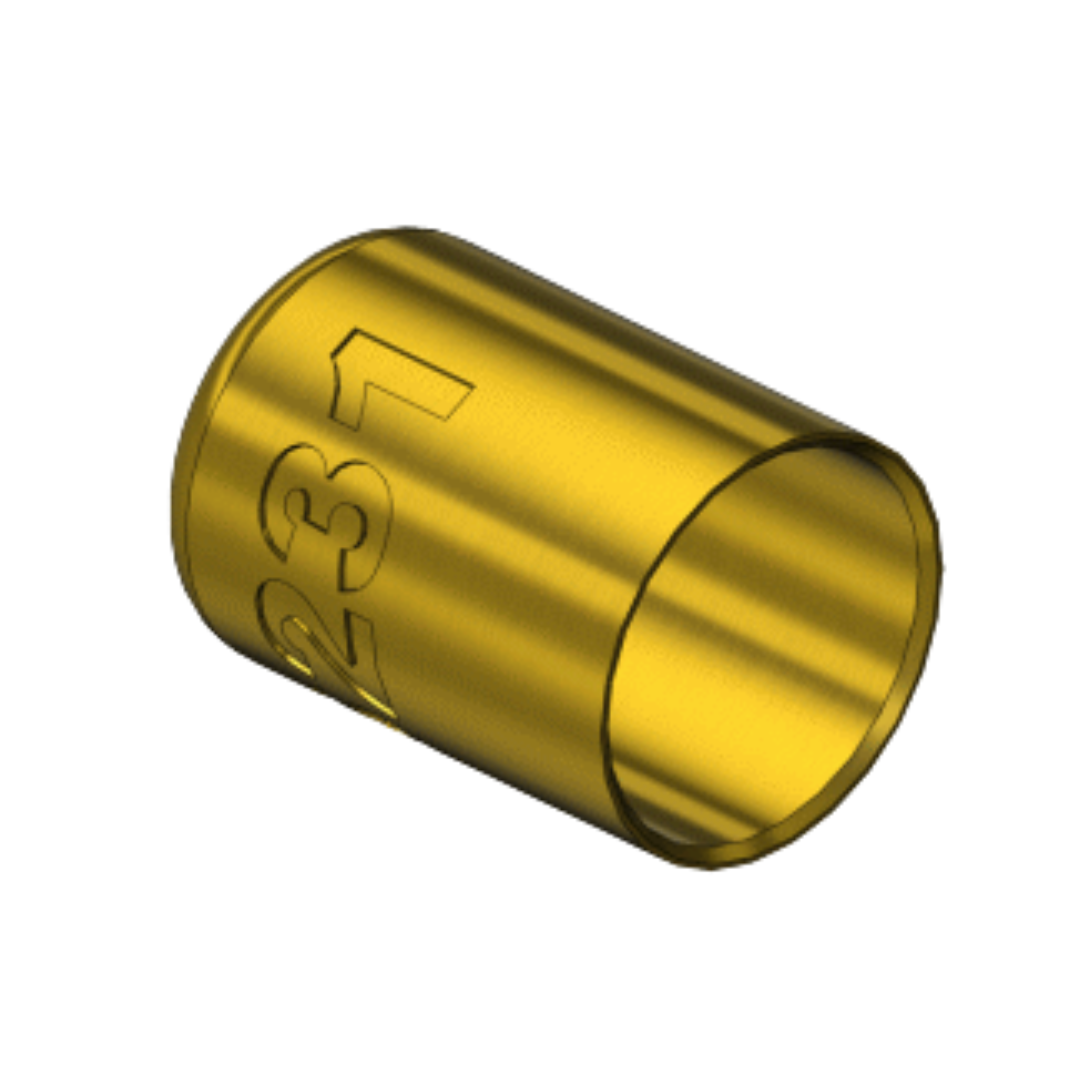

  6231		0.330		1 2

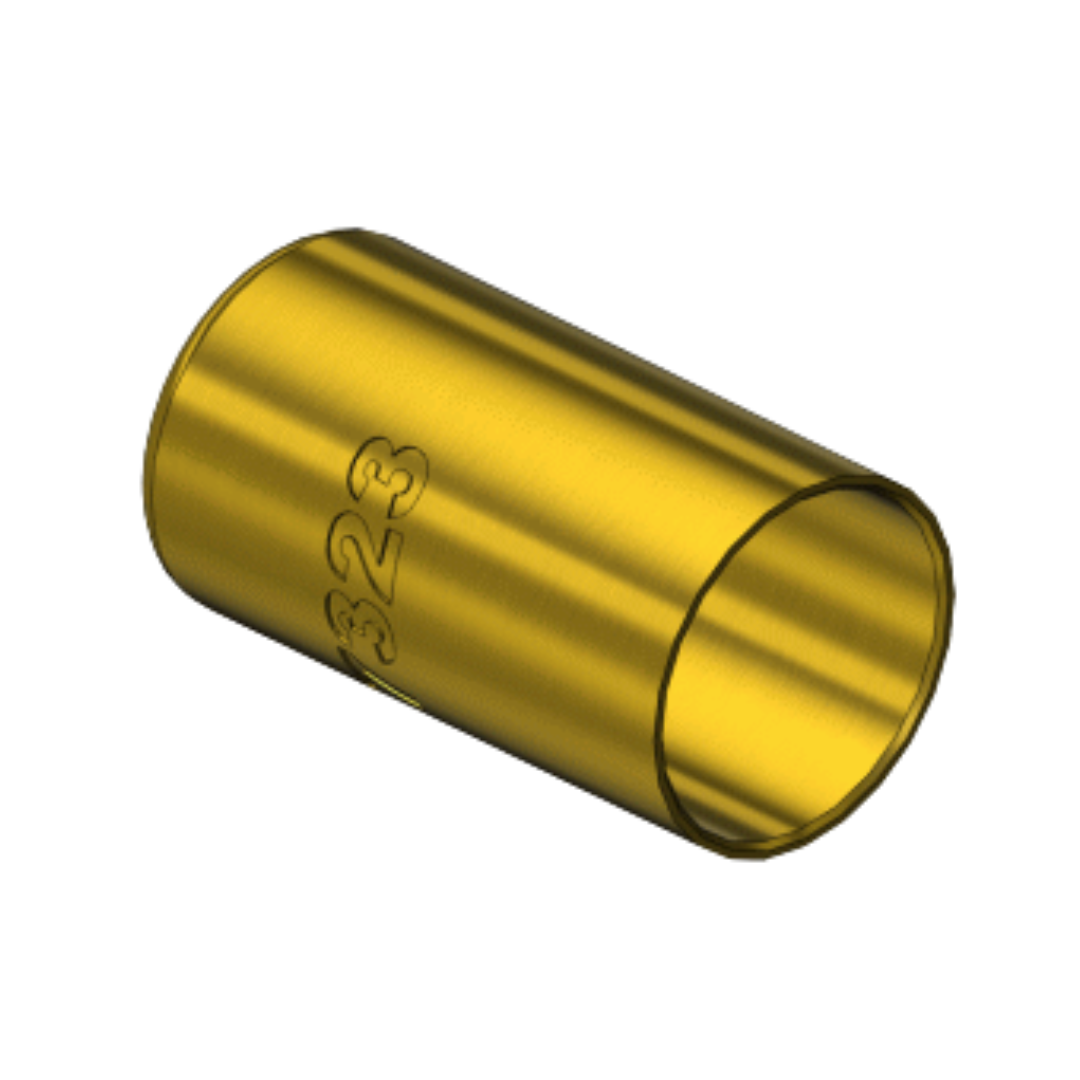

  7323		0.525		1



  Since there is no industry standard for hose wall thickness, the ID of the hose cannot be used to determine the correct ferrule.
  To determine the proper size ferrule, measure the OD of the hose (as a decimal) and go up to the next larger size Ferrule ID listed above.

  Example: If the hose OD is .555 use a #7325 Ferrule, which has an ID of .562”.

  Ferrule Size	.330 in. x 1/2" Length, .525" in. x 1" Length – 7323
