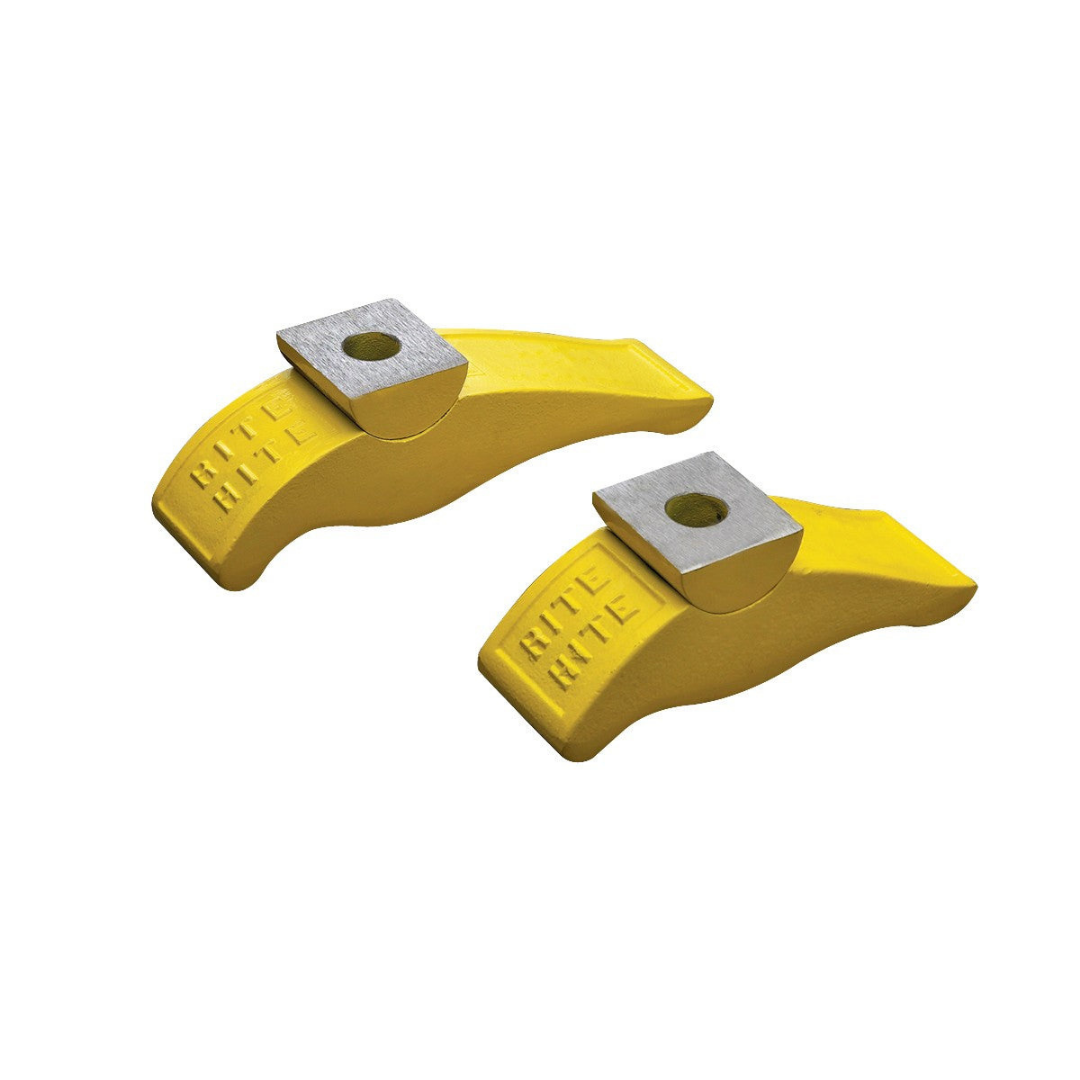

Bessey RiteHite® Self Positioning Clamps

• Sold in quantity of 1
• Self-positioning, single component design
• Swivel rocker attached to body

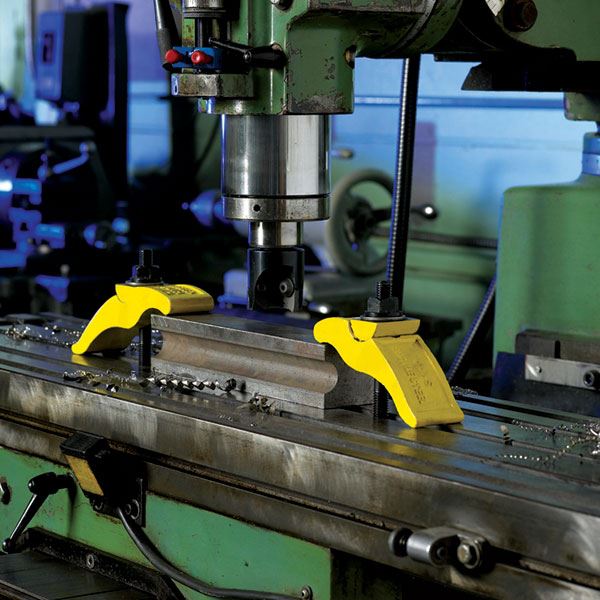

• For T-slot hold down tables in machine shop applications
• Swivel rocker attached to body allows the clamp to self-align on the work piece
• Strong, ductile iron body, strength you can depend on
• L Series has a long throw
• S series has a short throw

•

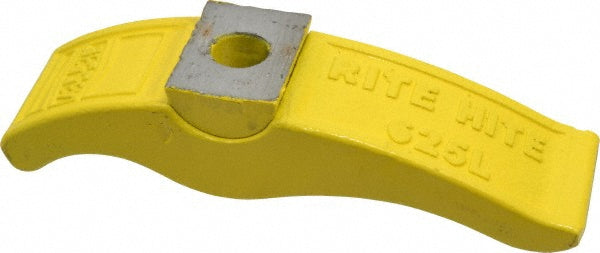

  RiteHite Long Reach (Model L) L series has a longer throw.



  Clamping Height (in)		Dimensions (in)		Load Limit (lbs.)		Model		Stud Size
  1-1 4		3-3 4 x 1-1 8 x 1-1 4		7,000		375L		3 8
  2-1 2		5-3 ⁄4 x 1-7 ⁄16 x 1-1 2		8,800		500L		1 2
  3-1 2		6-3 ⁄4 x 1-3 4 x 1-5 8		14,500		625L		5 8
  5		9 x 2-1 8 x 2-1 4		19,000		750L		3 4
  5		11-1 8 x 2-7 8 x 3-3 8		51,000		1000L		1

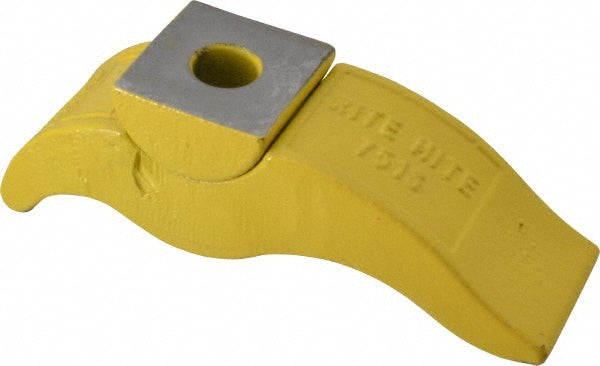

  RiteHite Standard Reach (Model S) The S series are slightly smaller than its counterpart but with the strength you can depend on



  Clamping Height (in)		Dimensions (in)		Load Limit (lbs.)		Model		Stud Size
  1		3 x 1-1 8 x 1-1 4		8,800		376S		3 8
  1-3 4		4-1 4 x 1-7 16 x 1-1 2		13,200		501S		1 2
  2-3 4		5-1 2 x 1-3 4 x 1-5 8		19,000		626S		5 8
  3-1 2		7 x 2-1 8 x 2-1 4		27,600		751S		3 4
  3		9 x 2-7 8 x 3-3 8		67,000		1001S		1



  *Non-stock item, please allow 2-3 week lead time.



  Bolt Size (inches)	3/8, 1/2, 5/8, 3/4, 1
  Throw	Short, Long
