Bernard Small Centerfire™ Nozzles NS58, NS12 Sale
25 people are viewing this right now
10 products sold in last 15 hours
Selling fast! Over 4 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Bernard Small Centerfire Nozzles
Bernard OEM Centerfire™ threaded nozzle keeps contact tip centered for better weld placement and less spatter. Holds tips fixed at 1 4 or 1 8 recess, flush, or 1 8 stick out. Composite insulator extends life and withstands heat abuse. Centerfire Nozzles have a built-in spatter shield that smooths and concentrates gas glow for less weld oxidation and contamination.
- Pack of 2 Nozzles
-
- No tools required to replace tip or nozzle.
- Drop-In tip with no threads means quick change after burnback, reducing down time.
- Large diameter tip base and tapered seat provides better electrical conductivity and heat transfer.
- Spatter shield within nozzle protects diffuser and gives smoother, less turbulent gas flow.
- Solid, concentric relationship between tip and nozzle keeps tip centered even after hard use… and abuse.
- Threaded nozzle holds tip fixed at 1 4 or 1 8 recess, flush, or 1 8 stick out.
- Compatible with all standard air-cooled Bernard Q guns.
- Complete family of tips and nozzles is available to meet most of your welding needs.
- All components manufactured with pride in the USA.
- NS-5800C – 5 8 – Flush – Copper

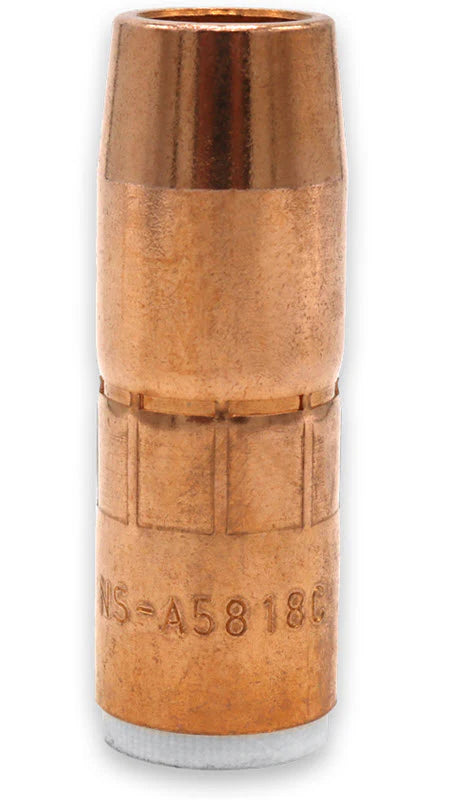

- NS-A5818C – 5 8 – 1 8 Recessed – Copper
- NS-5818C – 5 8 – 1 8 Recessed – Copper

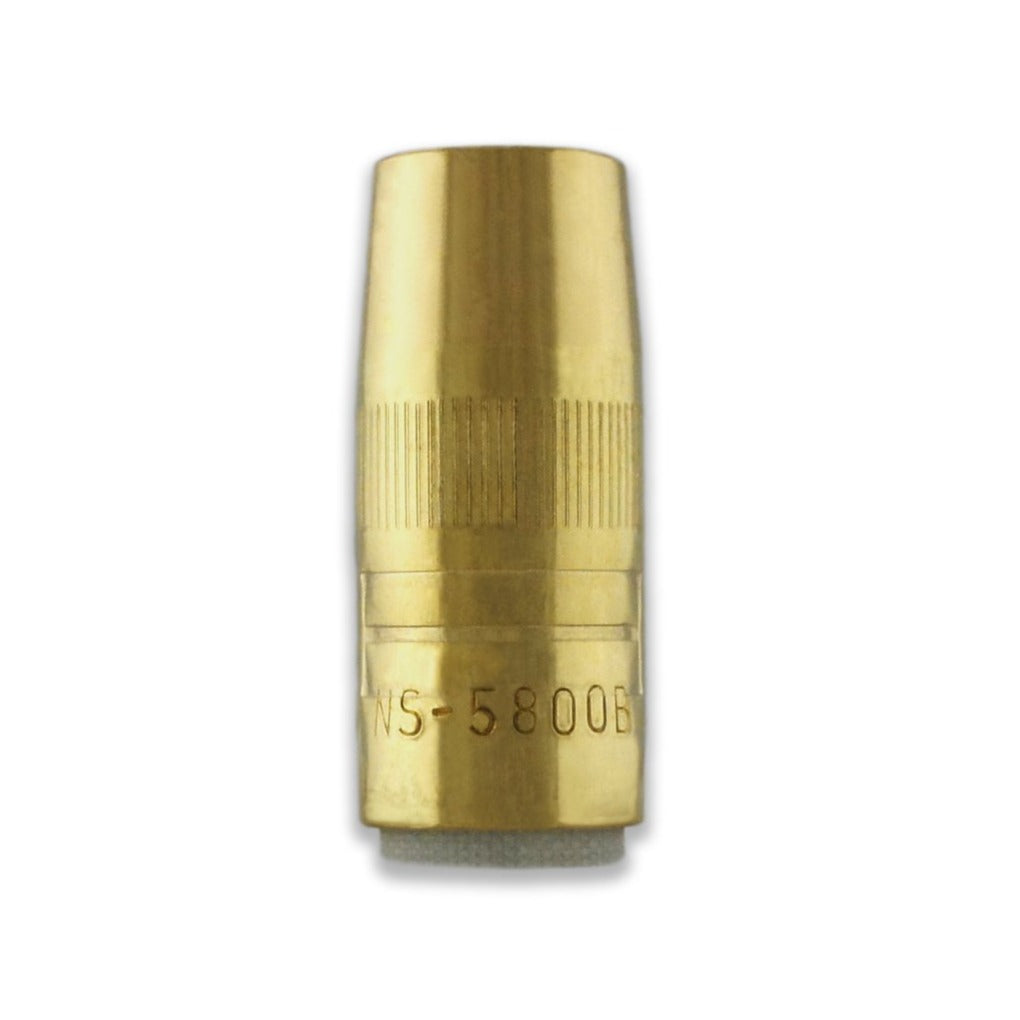

- NS-5800B – 5 8 – Flush – Brass
- NS-5818B – 5 8 – 1 8 Recessed – Brass
- NS-1218C – 1 2 – 1 8 Recessed – Copper
- NS-1200B – 1 2 – Flush – Brass
- NS-1218B – 1 2 – 1 8 Recessed – Brass
-
Otpions NS-5800C – 5/8" – Flush – Copper, NS-A5818C – 5/8" – 1/8" Recessed – Copper, NS-5818C – 5/8" – 1/8" Recessed – Copper, NS-5800B – 5/8" – Flush – Brass, NS-5818B – 5/8" – 1/8" Recessed – Brass, NS-1218C – 1/2" – 1/8" Recessed – Copper, NS-1200B – 1/2" – Flush – Brass, NS-1218B – 1/2" – 1/8" Recessed – Brass
