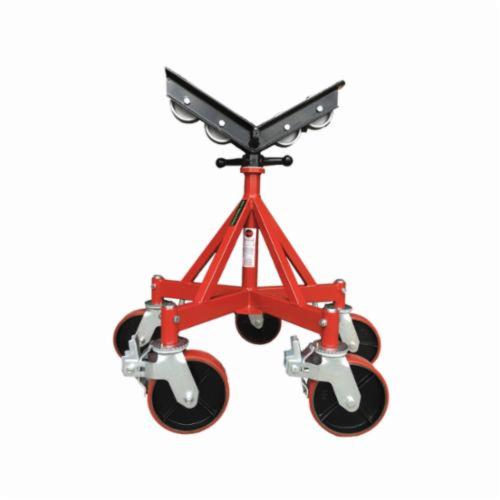

B&B 5-Leg Giant Jack Pipe Stand



The B&B 5 leg giant jack is ideal for large diameter pipes (up to 36 920 mm) and its V-head can be equipped with multiple options.

The 5 leg giant jack can be fitted with caster wheels, allowing pipe movement.

The 5 leg giant jack is characterised by its increased steel dimensions throughout, including 1¾ solid ACME rod, making it the toughest on the market.

Specifications

• Urethane over steel casters with solid hub increase safety and durability.
• 5,000 lbs. capacity without wheels and casters.
• 2,500 lbs. capacity with steel wheels and urethane casters.
• Operating height with swivel casters: 32 – 44 82 – 112 cm
• Operating height with jack only: 24 – 36 61 – 92 cm
• Minimum – maximum pipe diameter 1 – 36
• Solid 13 4 ACME-thread adjustment.
• 11 2 wide steel phenolic wheels to reduce instances of pipe travel .
• Can be purchased as a complete kit as shown: jack, casters, and wheels.
• Turning wheels available in steel, stainless steel, and phenolic.
• Multiple add-ons available, including stainless steel sleeves for contamination free fit-up, recommended hold down chain device for transport, ball transfer attachments for variation of pipe movement and more.
• Part No. 3510

•
