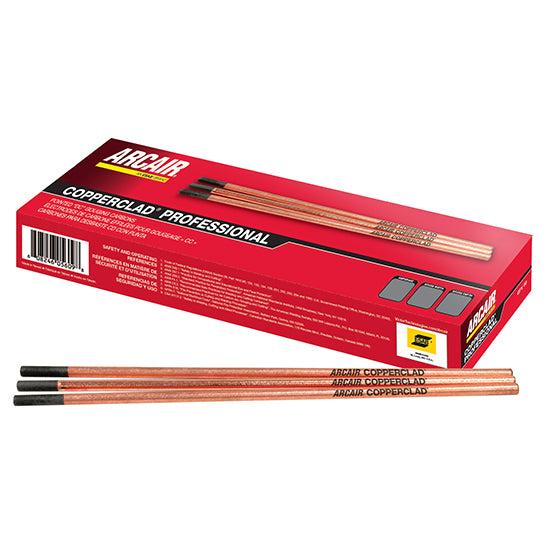

Arcair Pointed COPPERCLAD Air Carbon-Arc DC Electrodes



Premium, CCDC pointed all purpose gouging electrode.  Controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.

DESIGNED SPECIFICALLY FOR THE AIR CARBON-ARC PROCESS

• Contain a precise formulated blend of carbon and graphite
• The most efficient metal removal performance in today’s market
• Superior metal removal rates, cool operation, and uniform diameters

• IDEAL FOR A BROAD RANGE OF APPLICATIONS

  • Creating u-grooves for weld joint
  • Removing old welds
  • Gouging out cracks
  • Cleaning and repairing castings
  • Removing hard surface material
  • Rough machining

  • Options:

    Rod Diameter		Quantity of Rods in Package		Part Number
    1 8 (3.2 mm) x 12		100		22-023-003
    5 32 (4.0 mm) x 12		50		22-983-003
    3 16 (4.8 mm) x 12		50		22-033-003
    1 4 (6.4 mm) x 12		50		22-043-003
    5 16 (8.0 mm) x 12		50		22-053-003
    3 8 (9.6 mm) x 12		50		22-063-003
    1 2 (12.8 mm) x 14		50		22-082-003



    Diameter	1/8" (3.2 mm) x 12", 5/32" (4.0 mm) x 12", 3/16" (4.8 mm) x 12", 1/4" (6.4 mm) x 12", 5/16" (8.0 mm) x 12", 3/8" (9.6 mm) x 12", 1/2" (12.8 mm) x 14"
