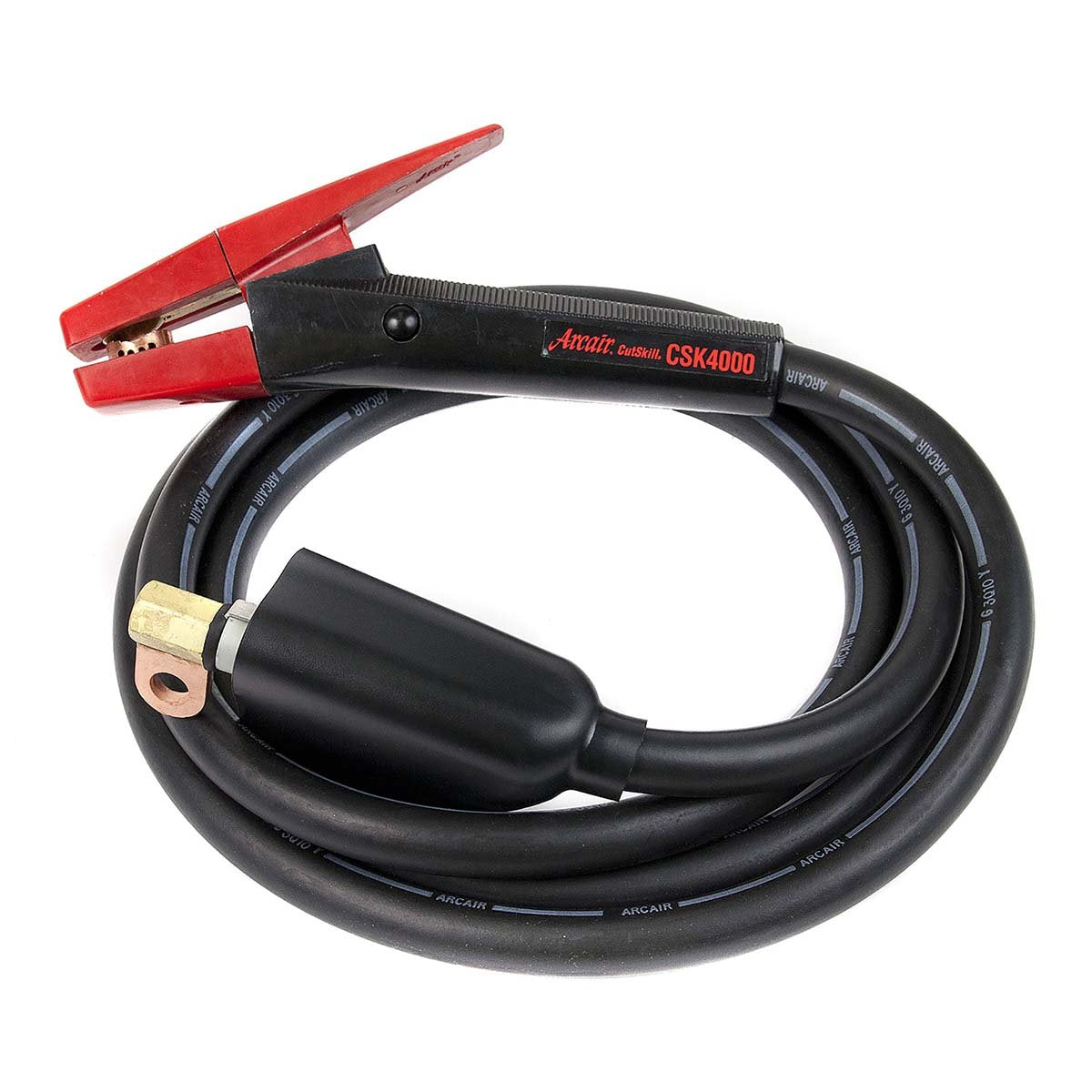

Arcair CSK4000 Cutskill Gouging Torch



Heavy Duty Cutskill K4000 Gouging Torch for heavy metal removal applications such as weld preparations in pressure vessel shops and shipyards.

Features

• Natural 15˚ torch angle – greater operator comfort


• Durable front insulators – High impact and heat resistant protecting the torch metal parts


• 360˚ Swivel cable – less cable twist – less strain on operator


• Positive grip handle – greater operator feel and ease in positioning the torch


• Reduced weight – optimum cable and torch weight to minimize fatigue


• High quality cable hose – best quality cable hose offers high heat and abrasion resistance – non conductive

• Single 4-Hole Head – For high airflow

•

  Amperage Range

  • 90 – 1000 amps

  • Electrode Sizes

    • Pointed – 5 32 – 1 2 round (4.0 mm – 12.7 mm)
    • Jointed – 5 16 – 1 2 round (7.9 mm – 12.7 mm)
    • Flat – 3 8 and 5 8 (9.5 mm – 15.9 mm)
    • Half Round – 5 8 (15.9 mm)

    • Air Requirements

      • psi – 80
      • kg cm² – 5.6
      • cfm – 25
      • l min – 708

      • Options

        • 7 ft. Cable – Part No. 61-088-007 (61088007)
        • 10 ft. Cable –  Part No. 61-088-010 (61088010)

        •
