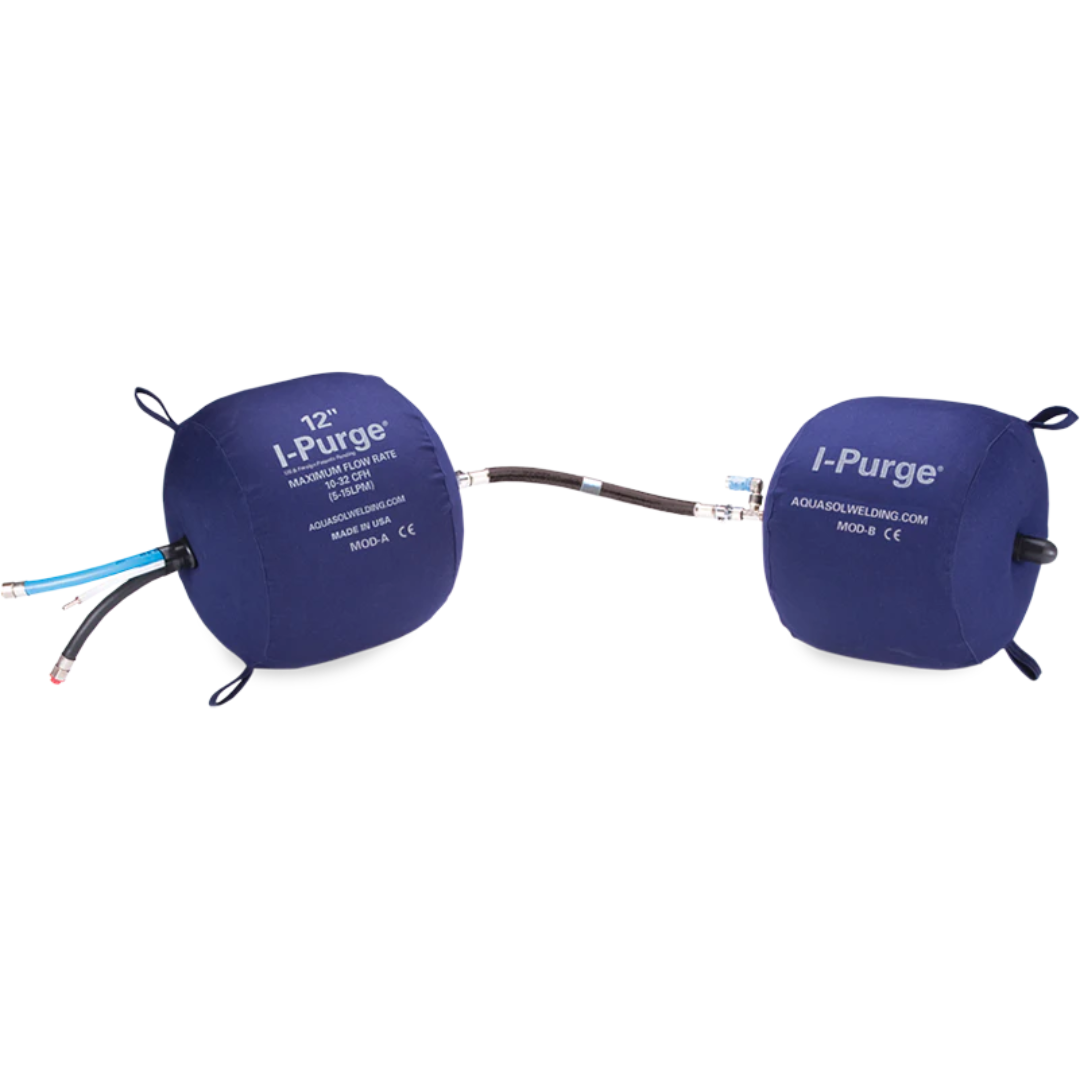

Aquasol I-Purge Inflatable Purge Bladder System

Complete Purge Bladder System

The revolutionary, patent-pending I-Purge Modular Inflatable Bladder System is the most innovative and versatile pipe purging system available. I-Purge creates an impermeable seal to consume the least amount of purge gas during pipe purging and welding, saving time and money, while achieving consistent, high-quality welds.

Manufactured in the USA, this long-term, reusable bladder system enables operators to satisfy a myriad of purge requirements with one interchangeable solution. The I-Purge comes equipped with several highly advanced features such as its Quick Connect Fittings that snap-in place and allow easy assembly and disassembly of components. The I-Purge also features an extended length, high heat resistant harness that allows the bladders to be placed outside the heat affected zone and can also sufficiently accommodate any pre-heating or high heat applications.

These state-of-the-art features allow the operator to create multiple configurations, including a one sided pipe stopper and a reducer. Bladders are available in sizes ranging from 2 to 48″ (51- 1219 mm) and may be purchased either individually or as a complete system, a distinct advantage should additional sizes be desired or a component need replacing.

Ideal for fabrication shops, the I-Purge surpasses existing technology with its advanced design and provides the complete solution for all pipe purging needs.

How I-Purge X Works

1. Module A		5. Quick Connection to Module A		9. Inflation & Purge (BLUE) Hose
2. Module B		6. Relief Valve		10. Luminescent Indicator
3. Quick Connection to Module B		7. Direct Purge (BLACK) Hose		11. Pull Loops
4. Fiberglass High Heat Bridge Harness		8. Exhaust Monitor Connection		12. Gas Diffuser



What s Included

• Every system includes 2 expandable bladders and a heat resistant harness

TEM NO		DIMENSIONS			STANDARD HARNESS LENGTH
ABLD 2*		2″		51 mm		11″		279 mm
ABLD 3*		3″		76 mm		11″		279 mm
ABLD 4*		4″		102 mm		11″		279 mm
ABLD 5*		5″		127 mm		11″		279 mm
ABLD 6*		6″		152 mm		11″		279 mm
ABLD 8*		8″		203 mm		11″		279 mm
ABLD 10*		10″		254 mm		12″		305 mm
ABLD 12*		12″		305 mm		12″		305 mm
ABLD 14*		14″		356 mm		16″		406 mm
ABLD 16*		16″		406 mm		16″		406 mm



Non Stock Item – Some kits may require a 3 week lead time

For Pipe Diameter	2" Pipe – ABLD 2*, 3" Pipe – ABLD 3*, 4" Pipe – ABLD 4*, 5" Pipe – ABLD 5*, 6" Pipe – ABLD 6*, 8" Pipe – ABLD 8*, 10" Pipe – ABLD 10*, 12" Pipe – ABLD 12*, 14" Pipe – ABLD 14*, 16" Pipe – ABLD 16*, 18" Pipe – ABLD-18*, 20" Pipe – ABLD-20*
