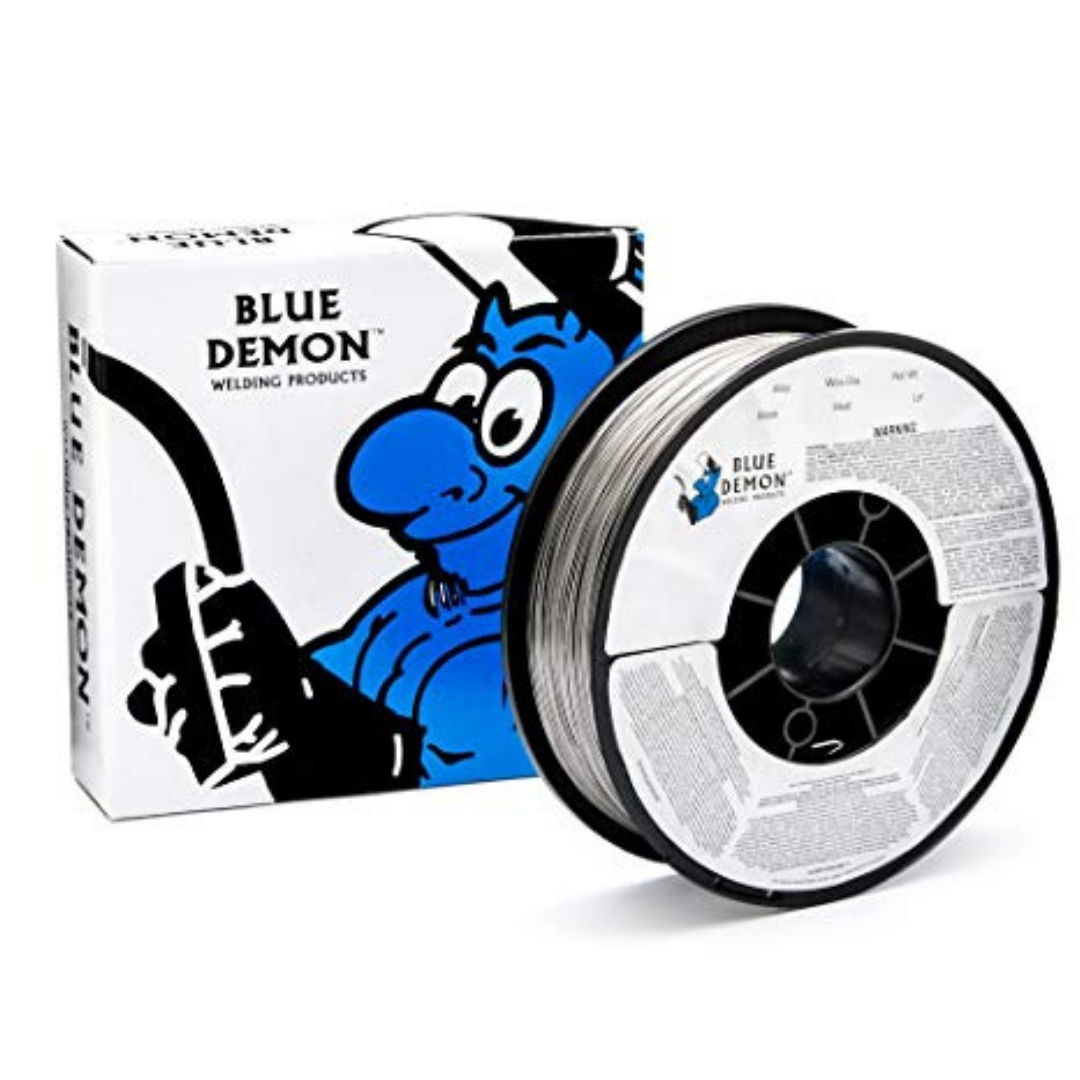

Blue Demon 309L Stainless Steel Flux Cored Welding Wire



E309LFC-O is a self-shielding variety of ER309L stainless steel welding wire.  It requires no shielding gas and works well when joining 309L to itself or other mild steels.

Options:

•  0.035, 0.045 – Diameters
• 1 lb (4 ) & 10lb (8 ) – Spools

• AWS Class:    E309LFC-O		Certification:    AWS A5.22 A5.22M:2010
  Alloy:  E309LFC-O		ASME SFA A5.22

  Welding Position:   F, H		Current:   DCEP

  Tensile Strength, kpsi:		70 min
  Yield Strength, kpsi:		*NS
  Elongation %:		30 min



  Typical Wire Chemistry as per AWS A5.22 (single values are maximum)

  C		Cr		Ni		Mo		Mn		Si		P		S		Cu
  0.04		23.0-25.5		12.0-14.0		0.75		0.5-2.5		1.0		0.04		0.03		0.75

  Typical Welding Parameters
  Diameter			Process		Volt		Amps		Stick Out
  in		(mm)
  .035		(.9)		GMAW		22-25		130-150		¾”-1”
  .045		(1.14)		GMAW		24-28		100-140		1”
  1.16		(1.6)		GMAW		24-28		150-250		1.25”
  3 32		(2.4)		GMAW		26-30		250-450		1.5”

  Wire Diameter	.035 (0.9 mm), .045 (1.2 mm)
  Spool Size	1.0 lb, 10 lb
