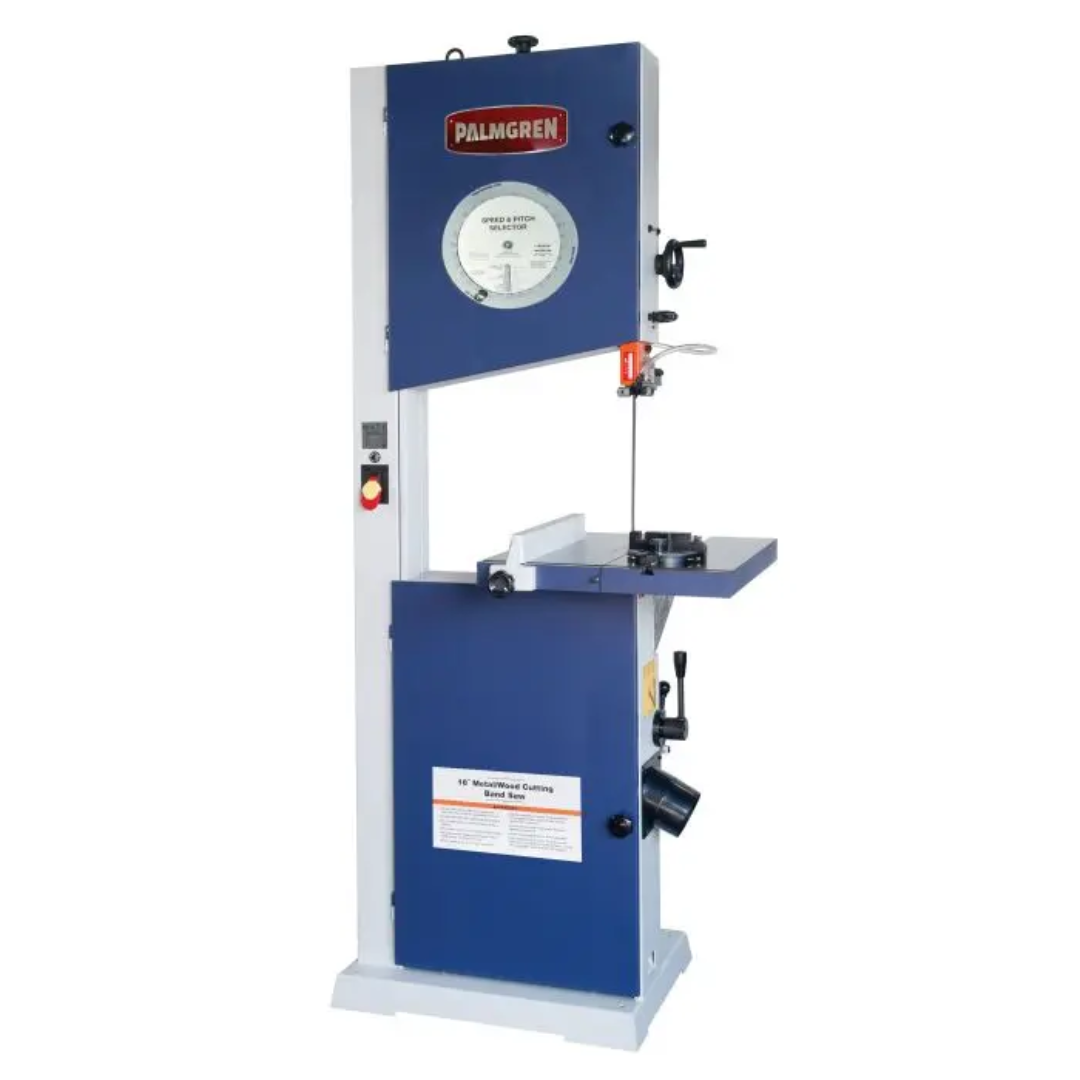

Palmgren 18 Vertical Wood Metal Band Saw, Floor Mounted Model



Palmgren 18 Vertical Wood Metal Band Saw, Floor Mounted Model is specially designed to effectively cut a variety of materials including wood, plastic, composites, ferrous and non-ferrous metals.

• Unitized welded steel frame construction
• Cast blade wheels
• Large ground cast iron work table that tilts up to 45°
• Adjustable precision bearing blade guides
• Hinged wheel covers and convenient blade tensioning wheel for easy accessibility and fast blade changing and adjustments
• 4 dust port
• Rip fence
• Miter gauge
• Chip blower
• Chip chute
• Extra wide speed range
• 15 comes with one 1 2 – 14 TPI metal blade, and one 1 2 – 6 TPI wood blade
• 18 comes with one 3 4 – 14 TPI metal blade, and one 3 4 – 6 TPI wood blade
• Manufacturer Part No. 9683118

• Specifications:

  Miter Capacity		45º
  Motor HP		1- 1 2
  Optional Accessories		Replacement Blade for 9683115 9683325 Bi-Metal, 1 2 x 0.035 x 10-14 TPI 9683326 Carbon, 1 2 x 0.032 x 4 TPI Replacement Blade for 9683118 9683327 Bi-Metal, 3 4 x 0.035 x 10-14 TPI 9683328 Carbon, 3 4 x 0.032 x 6 TPI
  Overall Dimensions (LxWxH)		24 x 29 x 80
  Table Dimensions		19 x 19 in
  Throat Capacity		18
  Voltage		115 230
  Model Number		83118 (9683118)
  Master Case Pack Qty		1
  Master Pack Height (In)		80
  Master Pack Length (In)		24
  Master Pack Weight (Lbs)		415
  Master Pack Width (In)		20
  Cutting Capacity		304.8 mm 12 in round
  Cold Saw And Band Saw Saw Type		Manual
  Warranty		3 Year
  UPC		726896831183
  Country Of Origin		TW
  Brand		Palmgren
  Unit Of Measure		Each
  Product Height (In)		82
  Product Length (In)		24
  Product Weight (Lbs)		417
  Product Width (In)		28.8
  Manual Horiz. Band Saw Type		Miter with vise
  Cutting Capacity Miter		45°
  Blade Width		1 8 to 1
  Blade Thickness		.035 in
  Blade Length		136 in
  Phase		Single
  Sawing Type		Vertical Band Saws
  Wood Cutting Saw Type		Vertical

  Free Shipping is not available for this product, contact us for a freight quote: [email protected]

  Non Stock Item – 3 – 4 week lead time is required
